The 10.1-inch HD Digital Wireless Quad-view Monitor offers an advanced solution for vehicle monitoring with the following key features:

• Easy Installation: Simplifies setup with no need for extensive wiring, making it suitable for a wide range of vehicles such as trucks, trailers, RVs, and more.
• Built-in Video Recorder: Equipped with a built-in video recorder supporting up to 128GB Micro SD card for real-time recording and video playback.
• Quad-view Display: Supports quad-view, allowing users to simultaneously view four different camera feeds, enhancing situational awareness.
• Auto Pairing: The monitor and wireless cameras automatically pair with each other after the initial setup, saving time and effort.
• HD Wireless Camera Support: Pairs with HD wireless cameras for a seamless connection, ensuring a clear and stable video feed.
• Flexible Viewing Options: Users can easily switch between different viewing modes, including quad-view and split-view, to meet specific monitoring needs.
• Reliable Digital Wireless Connection: Utilizes a stable 2.4GHz digital wireless connection, reducing the risk of interference and providing reliable video feeds even in challenging environments.

This monitor is ideal for vehicles that require clear, real-time video monitoring, such as

Features of the 10.1-inch HD Digital Wireless Quad-view Monitor

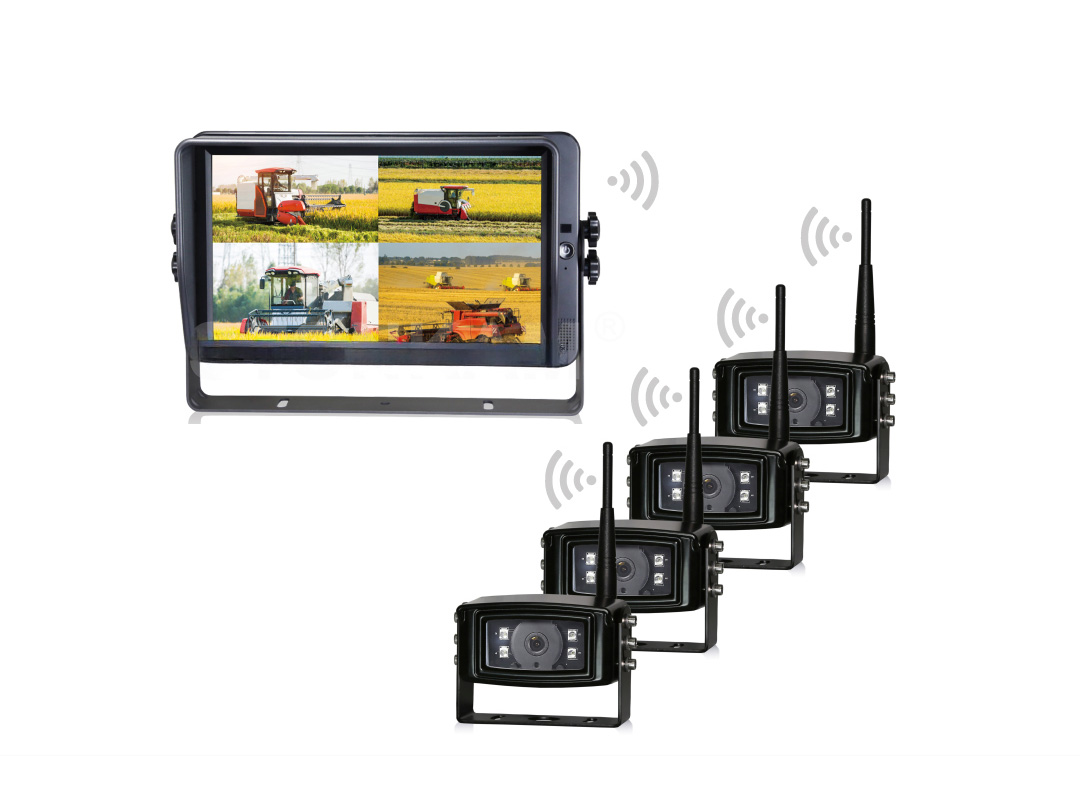

• 4CH Wireless Camera & Wireless Transmitter Support: Enables seamless connection and reliable video transmission.
• Flexible Display Modes: Includes quad-view mode, split-view mode, and single-view mode. Channels for both quad-view and split-view can be adjusted as needed.
• Built-in Recorder: Supports a 128GB Micro SD card for 4-channel real-time recording and video playback.
• Manual & Automatic Pairing: Convenient pairing options for easy setup.
• Supports 1080P/720P Camera Input: High-definition video input for clear monitoring.
• Optional Touch Screen: Allows intuitive control with a touch interface.
• Trigger Lines Input: Includes 5 trigger lines, supporting 4-channel single view and 1-channel split view. The split-view image can be customised, with adjustable trigger delay and priority.
• Automatic Brightness Adjustment: Screen brightness decreases automatically after 3 seconds in dark environments.
• Automatic Scan: Enables automatic scanning with a customisable channel and scanning time.
• Power Fail Safeguard: Super-capacitor backup ensures data integrity during power loss.
• Reversing Marking Line: Adjustable marking line for safer reversing, with flexible calibration options.



LCD Dimension	7″
Resolution	1024x 3 (RGB) x600
Contrast	700:1
Brightness	600cd/m²
Viewing Angle	U:80 / D:85, R/L:85
Pixel size	0.1506(W) x 0.1432(H)
Aspect Ratio	16:9
Channel	4 CH
Operating Frequency	2400MHz ~ 2483.5MHz(ISM band)
Receiving Sensitivity	-78dBm
Transmission power	FCC≤26dBm CE≤20dBm MIC≤10dBm
Receiving Sensitivity	H.264
Modulation	FHSS
Delay	200ms
Transmission Distance	FCC≤300 M CE≤200 M MIC≤60 M
Storage	Micro SD Card, up to 128GB
System Format	PAL / NTSC
Power Supply	DC 10-32V
Power Consumption	Max.10W
Loudspeaker	1W/8Ω
Operating temp. & humidity	-20~+70ºC,RH90%MAX
Storage temp. & humidity	-30~+80ºC,RH90%MAX

Benefits of the 10.1-inch Digital Wireless Vehicle Monitor





Easy Installation + Instant Pairing

The system saves time and money by simplifying installation. Once paired, the wireless monitor and camera begin functioning automatically when connected to the vehicle’s power supply, eliminating the need for complex wiring.

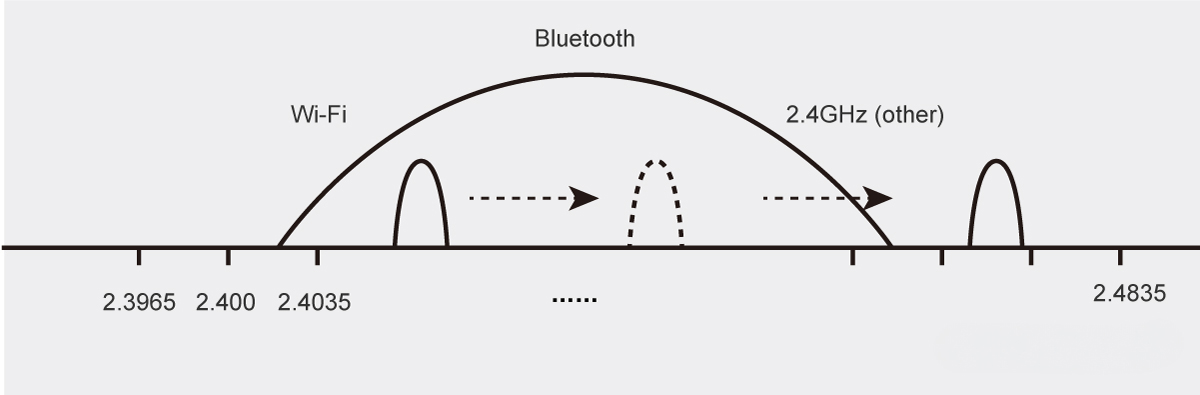

Strong Anti-Interference, Stable Connection

Operating on a frequency of 2400MHz to 2483.5MHz, the system uses FHSS (Frequency Hopping Spread Spectrum) technology to ensure a secure, stable, and interference-free connection, guaranteeing privacy and high performance.

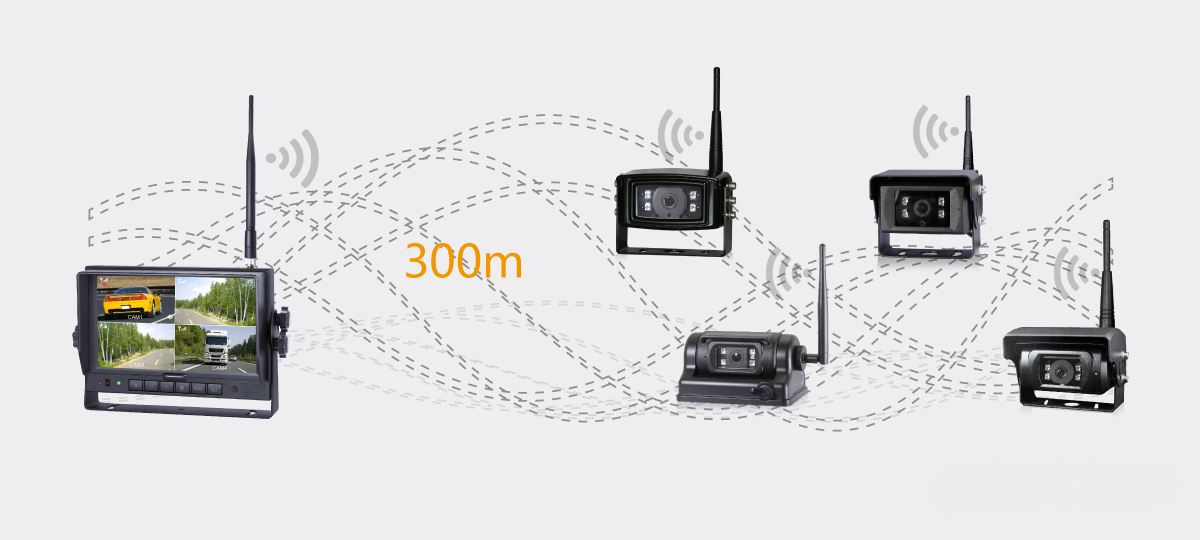

Impressive Transmission Range

The digital wireless monitor supports an open transmission distance of up to 984ft (300 meters), ensuring reliable communication between the camera and monitor even at a considerable distance.

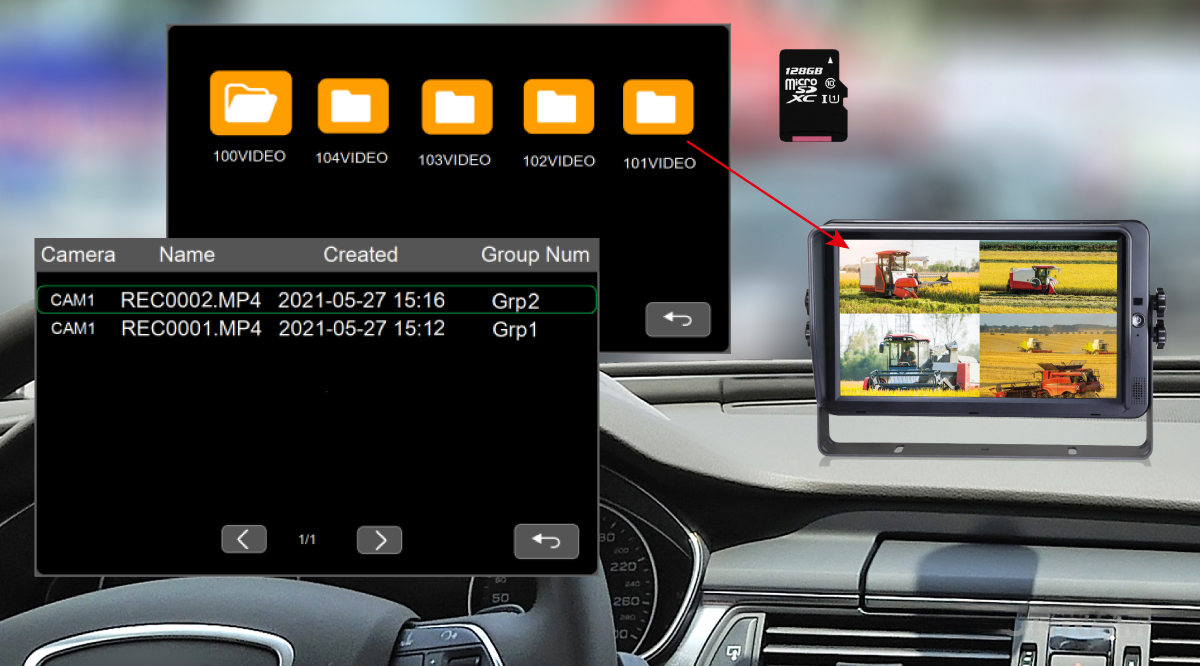

Built-in Video Recorder

Equipped with a built-in recorder that supports up to a 128GB Micro SD card, the system offers real-time 4-channel recording and video playback, which can be vital for recording evidence or reviewing footage.

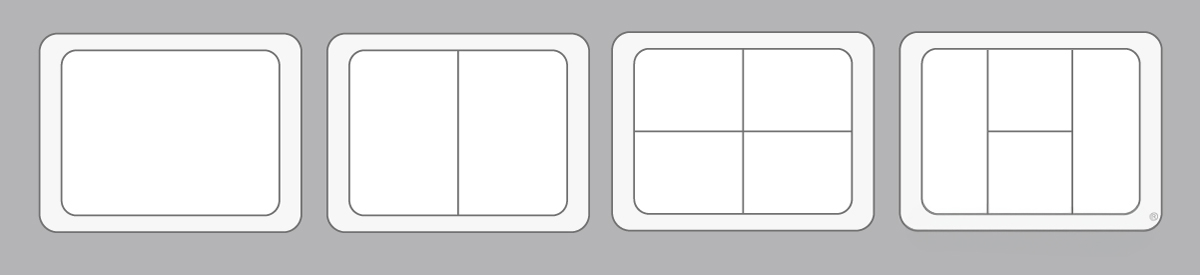

Flexible Multi-Display Modes

The system allows for flexible display configurations, including quad-view and split-view modes, with the ability to adjust the channels to meet the user’s specific monitoring needs.

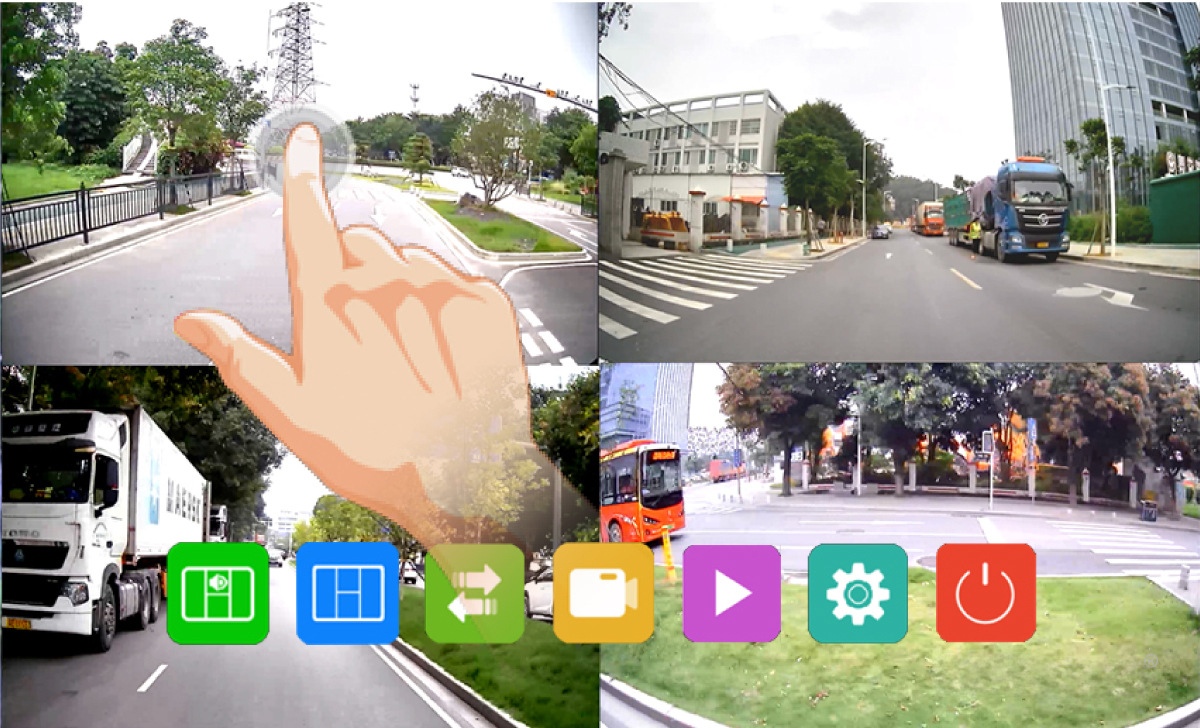

Optional Touch Screen

For improved ease of use, the system offers an optional touch screen, simplifying navigation and control of the monitor interface.
This advanced wireless vehicle monitor ensures convenience, reliability, and enhanced safety through its user-friendly features and robust technology.

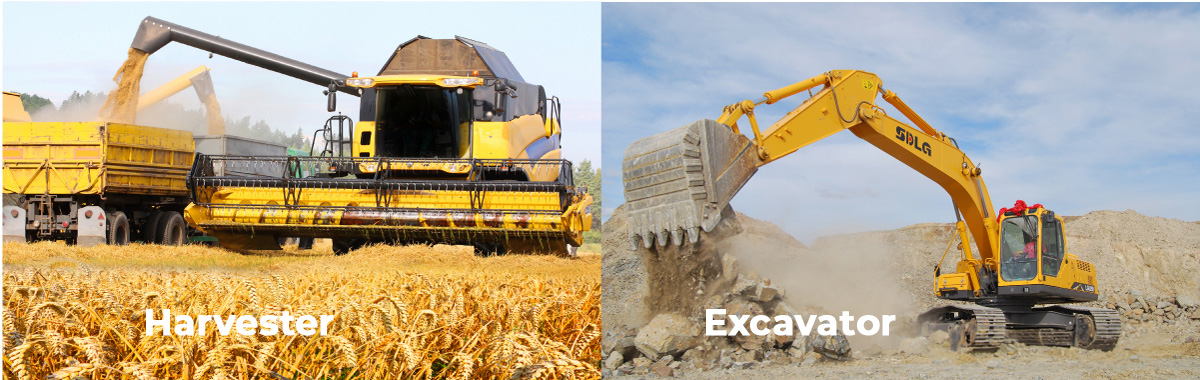

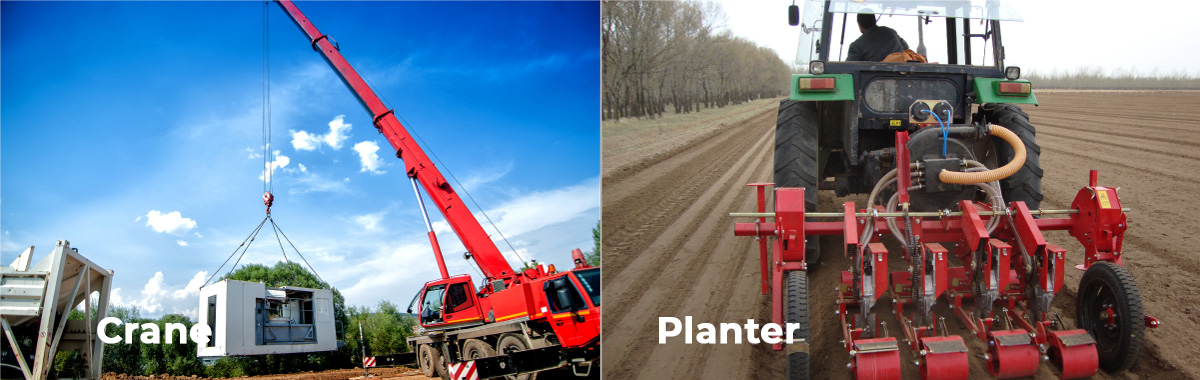

Multiple Application Scenarios

The HD Digital Wireless Vehicle Monitor, with its top-grade high quality, is highly versatile and can be applied to a variety of vehicles and machinery. Its easy installation and flexible features make it suitable for various industries. Some of the vehicles and machinery where this system can be used include:

• Harvester: Improves visibility and safety by providing clear views of the surroundings during harvesting operations.
• Excavator: Helps operators monitor blind spots and avoid obstacles during excavation and construction work.
• Farm Equipment: Ideal for farming machinery, enhancing precision and safety when navigating large fields.
• Forklift: Provides clear visibility for forklift operators, reducing the risk of accidents in warehouses and loading areas.
• Crane: Aids in lifting and lowering operations by offering a real-time view of the surroundings, ensuring safer manoeuvres.
• Planter: Assists in planting operations by providing clear visibility of the work area, improving accuracy and reducing potential collisions.

This high-quality wireless vehicle monitor system can enhance safety and operational efficiency across various sectors.





Application

The 10.1-inch HD Digital Wireless Quad-view Monitor is designed for easy installation, eliminating the need for running long cables, and making it suitable for various vehicles and machinery.

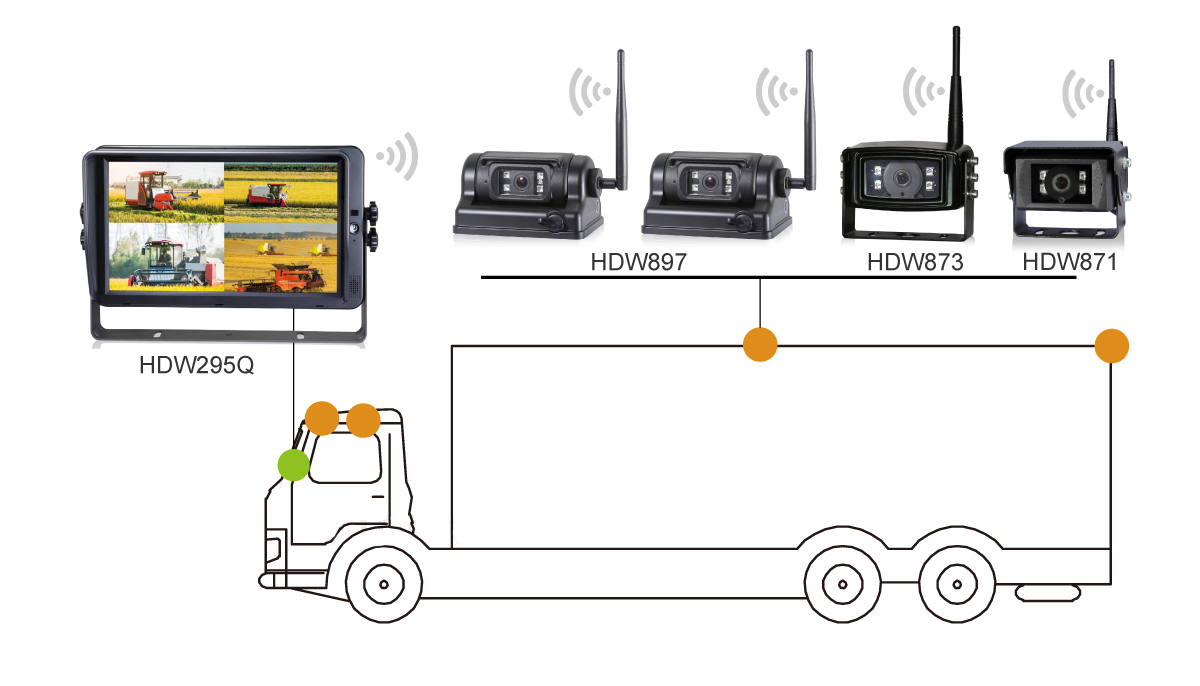

For Trucks:

• Enhanced Visibility: Provides clear views around the truck, improving safety and reducing blind spots during operation, especially in busy traffic or tight spaces.
• Easy Installation: Quickly set up without the hassle of complex wiring, saving time and reducing installation costs.
• Increased Safety: Helps drivers monitor critical areas like the back, sides, and blind spots, preventing collisions, accidents, and damage to the vehicle.
• Improved Efficiency: By offering multiple view modes and real-time monitoring, drivers can better control the vehicle, reducing the chances of operational mistakes.
• Durability: Built to withstand harsh conditions often encountered by trucks, ensuring reliable performance even in tough environments.

This makes the 10.1-inch HD Digital Wireless Quad-view Monitor an ideal choice for trucks, enhancing both safety and operational efficiency on the road.

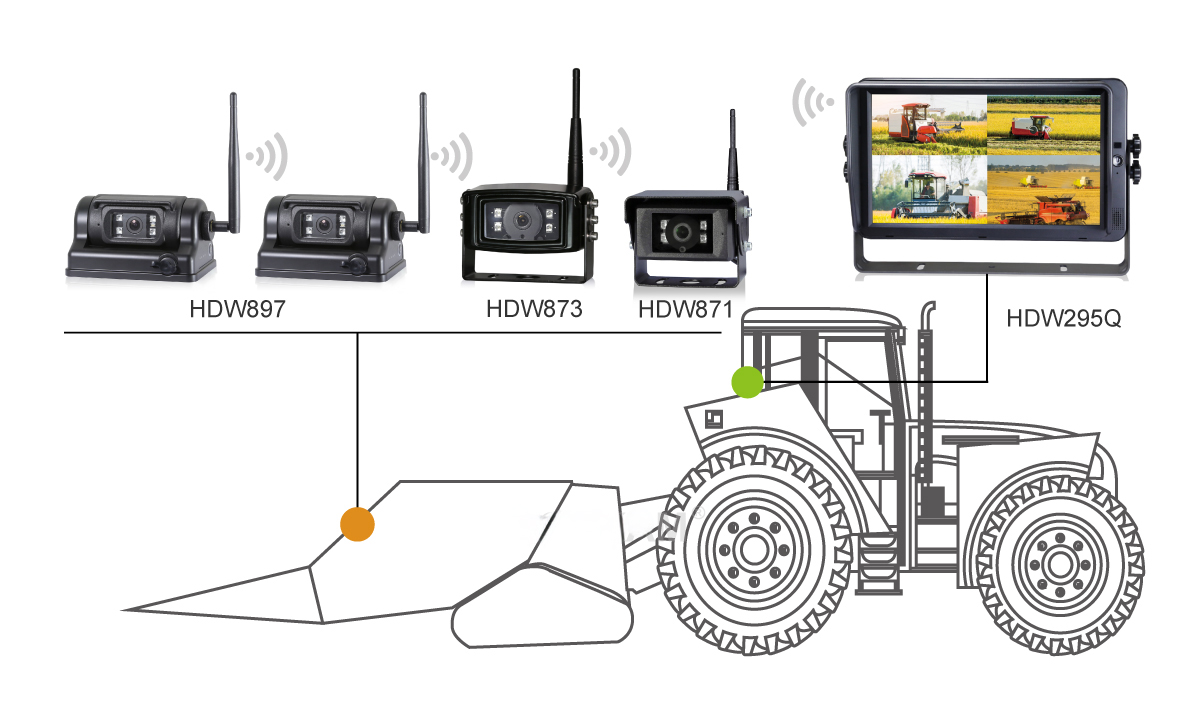

For Harvester:

• Clear Visibility in the Field: The Digital Wireless Vehicle Monitor helps operators monitor critical areas of the harvester, such as the rear, side, and surroundings, enhancing visibility during harvesting operations.
• Reduced Blind Spots: By eliminating blind spots, the system ensures better safety, especially when navigating through dense crops or crowded work areas.
• Improved Precision: Multiple display modes and real-time video feed help operators control the harvester with greater precision, reducing the risk of accidents or damage to crops and equipment.
• Durable for Harsh Conditions: Designed for rugged environments, the monitor and wireless cameras are built to withstand dust, moisture, and vibrations often found in agricultural fields.
• Efficient Setup: The wireless nature of the system simplifies installation, eliminating the need for extensive wiring, which is particularly useful for harvesters working in large, expansive fields.

This makes the Digital Wireless Vehicle Monitor an excellent choice for harvesters, ensuring safer and more efficient operations in agricultural settings.

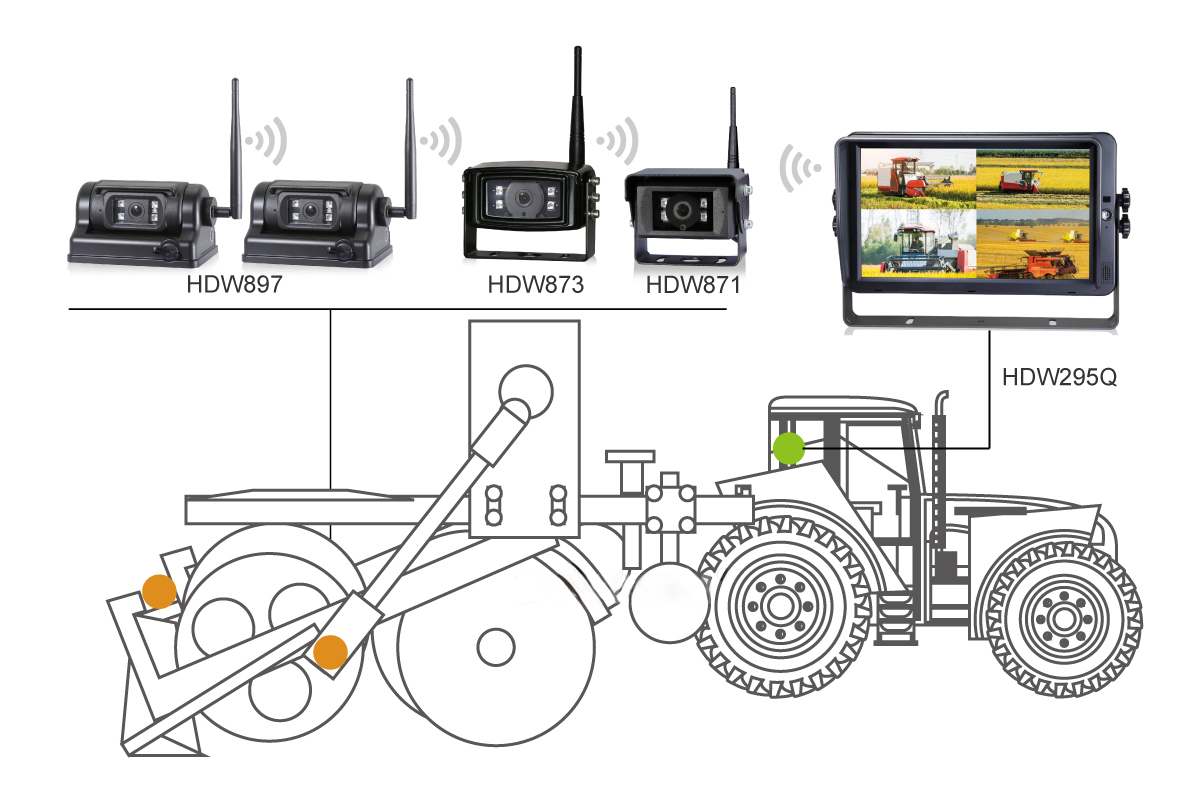

For Planter:

• Enhanced Visibility: The Digital Wireless Vehicle Monitor offers clear and real-time visibility around the planter, especially in areas that are typically hard to see, such as the rear and sides. This helps prevent accidental damage to plants or equipment.
• Increased Accuracy: By displaying multiple camera views, operators can easily monitor the planting process, ensuring precise seed placement and reducing errors.
• Efficient Operations: The wireless setup allows for quick and easy installation without the hassle of running long cables, perfect for planters that need to be frequently relocated or adjusted.
• Safer Navigation: With the ability to monitor multiple areas simultaneously, operators can navigate tight or complex field areas more safely, avoiding obstacles or other potential hazards.
• Durability in Agricultural Conditions: The system is built to withstand the rugged conditions of planting, including exposure to dust, dirt, and moisture, making it reliable throughout the planting season.
• Real-time Monitoring: Operators can adjust planting strategies on the fly by quickly reviewing real-time footage, enhancing operational efficiency and performance.

The Digital Wireless Vehicle Monitor is an ideal solution for planters, offering improved control, safety, and operational efficiency.











---
