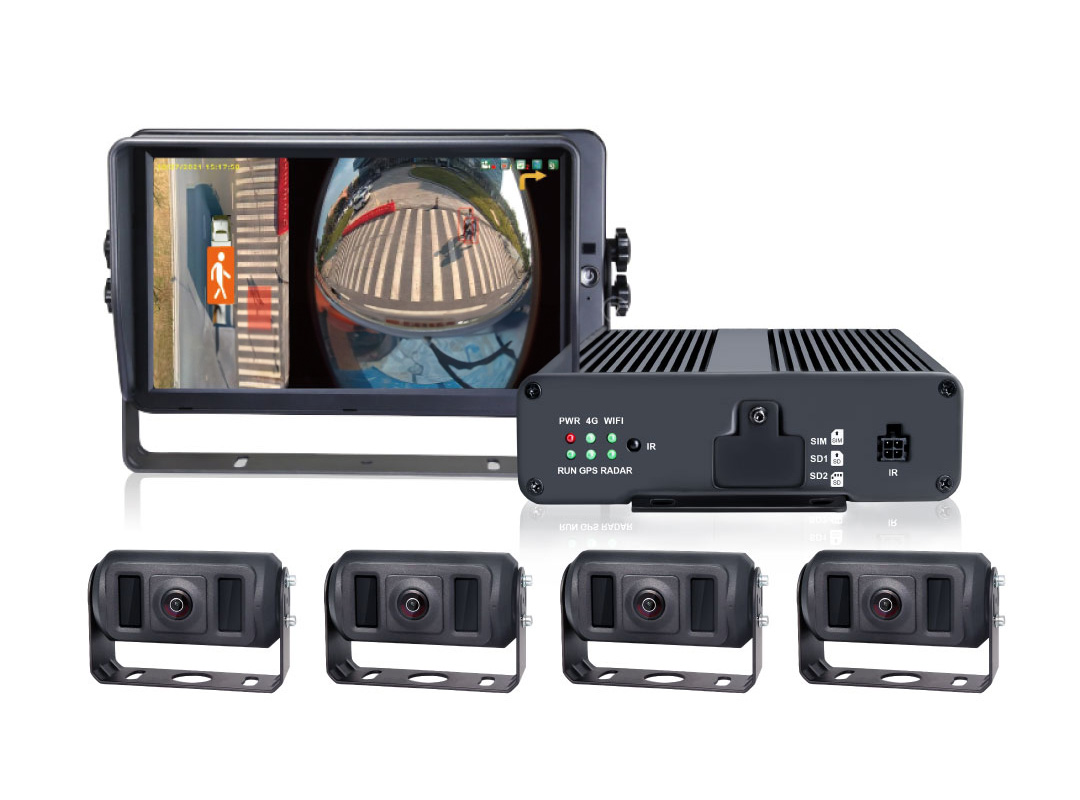

The 360° Around View + Pedestrian Detection System offers a comprehensive 360° panoramic bird’s-eye view, eliminating blind spots to ensure optimal driving safety. This system is ideal for buses, trucks, ambulances, limousines, and other large vehicles, enhancing visibility and reducing the risk of accidents.





Features of the 360° Around View + Pedestrian Detection System



• 1080P HD Fisheye Camera Input: Provides stable, high-definition images with real-time display, ensuring clear visibility for safe driving.
• Automatic Calibration: Quick, 1-minute automatic calibration with plane correction, saving both time and effort.
• Multiple Viewing Modes: Switch freely between 3D and 2D views to meet all visual needs and driving conditions.
• Video Recording: Supports 2 x 512GB SD cards for extensive video storage, with an ultra-capacitor for securing video files.
• AI Algorithm Integration: Built-in AI with LDW (Lane Departure Warning), FCW (Forward Collision Warning), and BSD (Blind Spot Detection) for comprehensive 360-degree vehicle monitoring, including lane departure, forward collision risks, and overtaking/merging detection, with alarms to alert drivers.
• 3D Effect for Enhanced Rearview Mirror: The 3D effect supports a super rearview mirror, covering the lane completely and improving safety when merging at high speeds.
• Quick Image Pop-Up: Single-view images appear quickly and smoothly with low latency, ensuring fast and efficient visual feedback.
• RTSP Video Output: Supports RTSP protocol for seamless integration with third-party devices.
• Radar and Parking Sensor Compatibility: Integrates with radar and parking sensors, providing real-time video and audio overlays to actively warn drivers of obstacles and potential hazards.
• IP Camera Support: Connect additional IP cameras for expanded coverage and more viewing angles.
• External AI Pedestrian Detection Cameras: Connect external AI cameras with up to 8T arithmetic power, capable of detecting pedestrians and objects within a 10-meter range.
• Wide Operating Temperature Range: Performs in environments from -20ºC to +70ºC, ensuring reliable operation in extreme conditions.
• Low-Lux Night Vision: Provides clear visibility under 0.1 lux without the need for infrared lighting, ensuring safety in low-light conditions.
• Optional GPS Tracking: Available GPS tracking feature for enhanced vehicle monitoring.



Video input	Max.4CH×1080P@25fps/1080P@30fps
Display mode	2D/3D
Resolution	1080P
Frame Rate	25/30
Storage	Max. 2×512GB SD card
Compressed encoding	Max. 4CH×1080P H.264 encoding
Code stream	4MB/2MB
Power supply	10-32V
Operating voltage range of external trigger signal	10-32V
Operating current	<2A/12V
Operating temperature	-20℃ ~ 70℃
Storage temperature	–40℃ ~85℃
Operating humidity	10%-90%





Why Do You Need 360° Around View + Pedestrian Detection System?



• Hidden Dangers in Blind Spots: Blind spots around vehicles can hide potential hazards that may lead to accidents, and they are often difficult to detect without advanced monitoring systems.
• Risk of Scratching on Narrow Roads: Navigating tight spaces and narrow roads increases the risk of vehicle scratches. Without proper visibility, these incidents are costly and often have no one to share the blame.
• Increasing Risk of Accident Fraud: With the rise of staged accidents, especially near commercial vehicles, having comprehensive surveillance to document the scene is crucial to protect against fraudulent claims.
• Unclear Responsibility in Rear-End Collisions: Determining fault in rear-end accidents can be complex. With a 360° view, your system provides clear evidence of the situation, ensuring accurate responsibility allocation.

The AUTO VANTAGE 360° system offers complete visibility around your vehicle, enhancing safety and reducing the risk of these common driving challenges.









Unignorable Vehicle Blind Spots



Blind spots are responsible for a significant percentage of road accidents, making them a serious threat to driver safety. These areas around the vehicle, which are not visible to the driver through mirrors, can hide pedestrians, cyclists, or other vehicles, increasing the risk of collisions. A 360° view system helps eliminate these blind spots, providing drivers with a comprehensive view of their surroundings and significantly improving road safety.



It turns out that while areas A, B, or C are typically not considered blind spots, the lower part of larger vehicles, such as trucks or buses, can create blind spots. These hidden areas, especially at the vehicle’s base, can obscure smaller vehicles or pedestrians from the driver’s view, posing significant safety risks. A 360° surround view system can help eliminate these hidden blind spots, offering a clearer view and enhancing overall safety.





Area A, B, C: Half Blind Area
These areas are typically not considered full blind spots, but the size and height of the vehicle can create partial blind zones. The severity of the danger depends on the size of the vehicle, as larger vehicles may obscure these areas more than smaller ones.

Area D: Full Blind Area
This area is completely beyond the driver’s line of sight and the three rearview mirrors. It is a significant blind spot that can pose a serious safety risk.

Area E: Full Blind Area
The A-pillar near the windshield can obstruct the driver’s view, creating a full blind spot. This is particularly dangerous when merging or turning, as pedestrians or smaller vehicles may be hidden from view.

A 360° surround view system can help address these issues by offering a panoramic view, ensuring there are no hidden blind spots and improving overall driving safety.





Watch Out for Truck’s Blind Spots!

Trucks have significantly larger blind spots than regular cars due to their size and length. As a result, truck drivers may not be able to see smaller vehicles driving alongside or behind them. For everyone’s safety, always exercise caution when driving next to or behind a truck. Stay visible, avoid lingering in their blind spots, and make sure you give them enough space to manoeuvre safely.









360° Around View + Pedestrian Detection System: Complete Safeguard for Your Driving!



360° Seamless Stitching

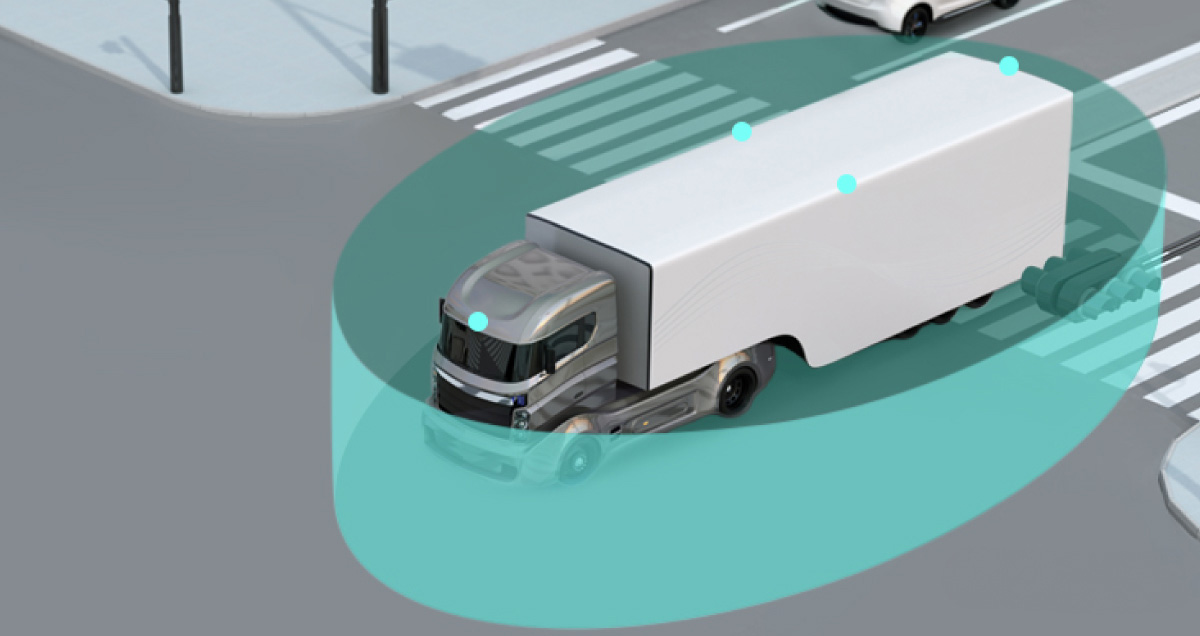

The 360° Around View + Pedestrian Detection System supports 4CH inputs, delivering a true 360° panoramic bird’s-eye view with seamless stitching. This technology ensures a full view of your surroundings, eliminating blind spots and enhancing driving safety by providing comprehensive, real-time monitoring.









Built-in AI Algorithm with LDW, FCW, and BSD Full Area Detection

The 360° Around View + Pedestrian Detection System features a built-in AI algorithm, seamlessly integrating Lane Departure Warning (LDW), Forward Collision Warning (FCW), and Blind Spot Detection (BSD) for 360° coverage. This system can intelligently detect lane departures, forward collisions, and overtaking or merging vehicles, providing timely alerts to help prevent accidents and improve overall driving safety.









Panoramic Image Synthesis Technology

The System uses advanced panoramic image synthesis technology. Four 1080P full HD images are seamlessly stitched together after distortion correction, then rendered into a 3D scene to simulate a true-to-life driving environment. This ensures a clear, accurate representation of the vehicle’s surroundings, enhancing safety by eliminating blind spots.



Flexible Viewing Options: 3D and 2D Switchable

The System offers multiple viewing modes, allowing users to seamlessly switch between 3D and 2D views. This flexibility accommodates various viewing angles, ensuring optimal visibility and enhancing driving safety in all situations.









Quick Start-up and RTSP Feed Integration

The 360° Around View + Pedestrian Detection System delivers a fast start-up, with single-view images appearing smoothly and with low latency. It supports RTSP protocol, allowing third-party equipment to access the 360° panoramic images. The system achieves seamless integration with less than 250ms of latency, enhancing real-time performance and connectivity.







Enhanced 3D Effect for Safer High-Speed Merging

Unlike most 3D around-view systems that block the rear traffic view with a solid vehicle image, the 360° Around View + Pedestrian Detection System uses a transparent vehicle model. This design provides a full, unobstructed view of the road behind, eliminating blind spots. Additionally, the bird’s-eye view expands visibility to both the left and right sides of the vehicle, offering a broader field of view and extra coverage compared to similar products. This innovative feature significantly enhances driving safety, especially when merging at high speeds.







Quick One-Minute Calibration

The 360° Around View + Pedestrian Detection System features automatic calibration that takes just one minute. Using the touch screen or remote control, the system can be easily calibrated with only four calibration mats. These mats can be placed randomly, ensuring accurate calibration with minimal effort, saving both time and resources.









External AI Pedestrian Detection Camera Support

The 360° Around View + Pedestrian Detection System supports the integration of external AI pedestrian detection cameras, offering up to 8T of computational power. This advanced feature enables comprehensive vehicle detection with a range of up to 10 meters, enhancing safety by accurately detecting pedestrians and potential obstacles around the vehicle.







Video Recording with Dual 512GB SD Cards

The 360° Around View + Pedestrian Detection System features video recording capabilities with two 512GB SD cards. This ensures continuous and reliable storage of high-definition footage, providing ample space for long-duration recording while securing video files with an ultra-capacitor to protect them in case of power loss





Resolution	channels	Storage	Transmission rate	Recording time
1280 x 720	4	2 x 512 GB	2Mbps	266Hrs

Low Light Night Vision

The System is equipped with advanced low-light night vision, allowing the driver to maintain a clear, 360° view of the road even in low-light conditions. No infrared light is required, and the night vision technology ensures visibility across the entire panoramic view, enhancing safety during nighttime driving.





Support Radar Access and Parking Sensor System

The 360° Around View + Pedestrian Detection System seamlessly integrates with radar and parking sensors. It overlays real-time video and audio to provide active alerts, warning the driver of obstacles and potential hazards in the surrounding area, and ensuring safer manoeuvring and parking.











AI Algorithm

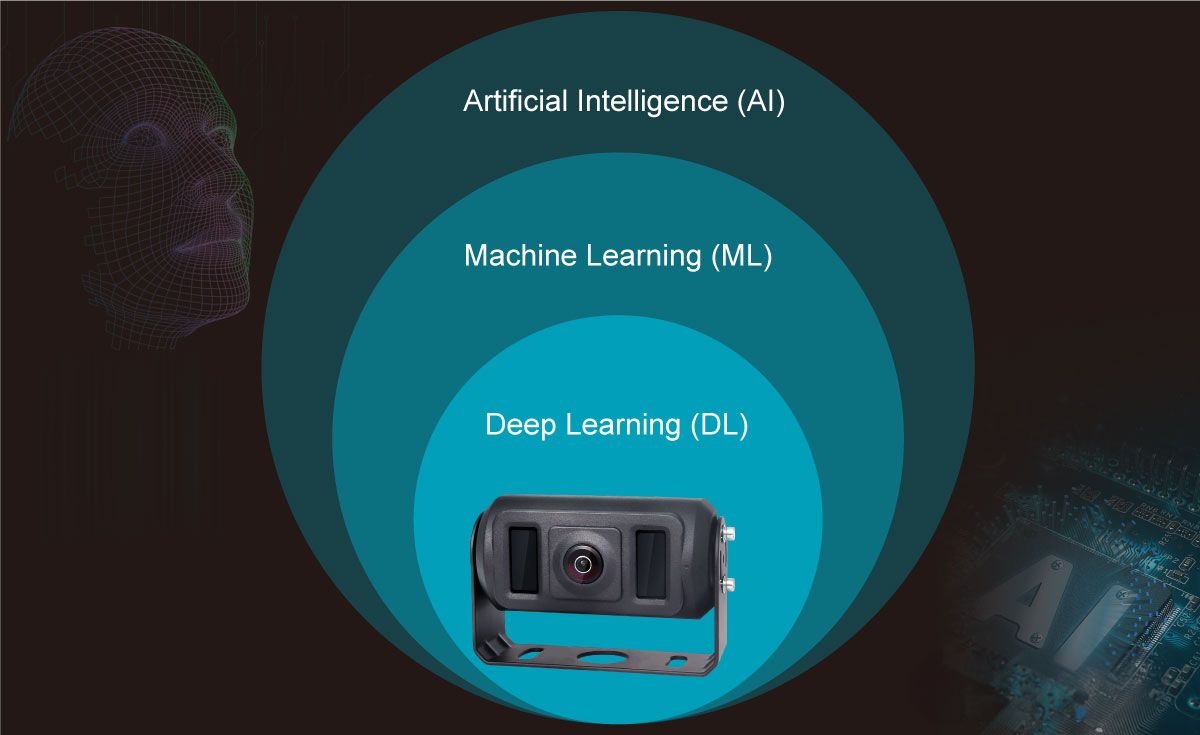

The System utilises advanced deep learning technology. This enables accurate and intelligent detection of pedestrians and vehicles, enhancing driver safety by providing real-time alerts and assistance.

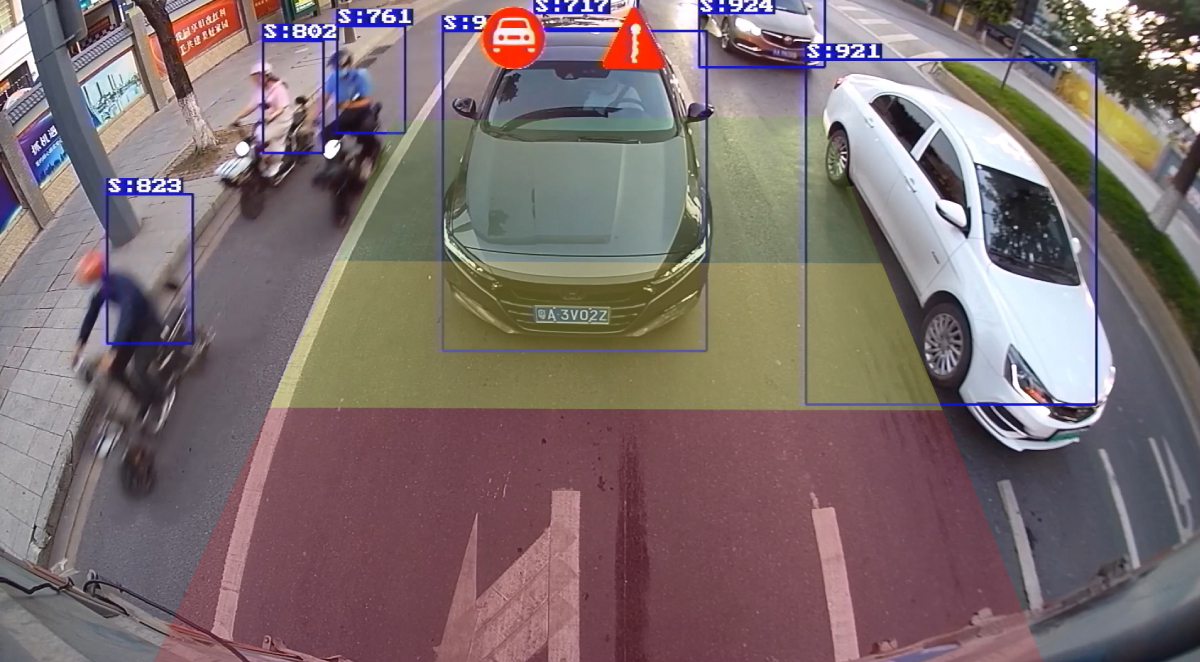

All-Round Monitoring with Downward Detection and Warning

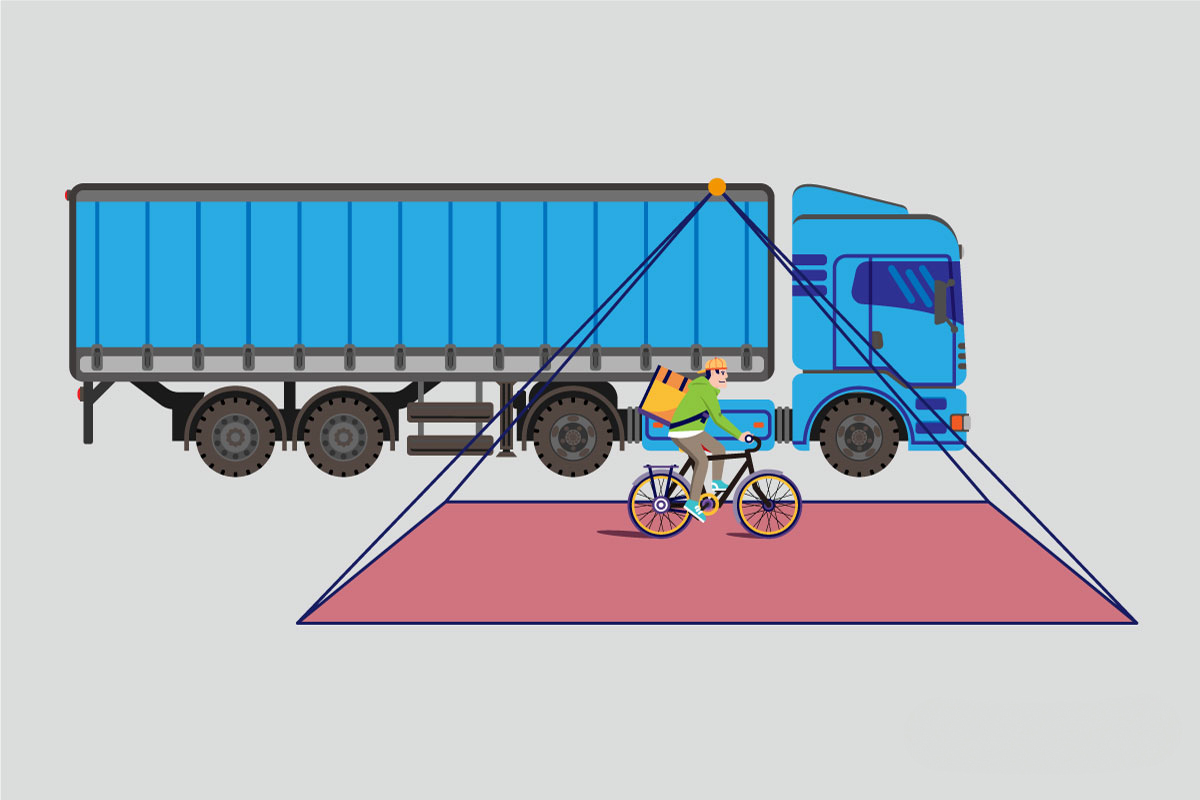

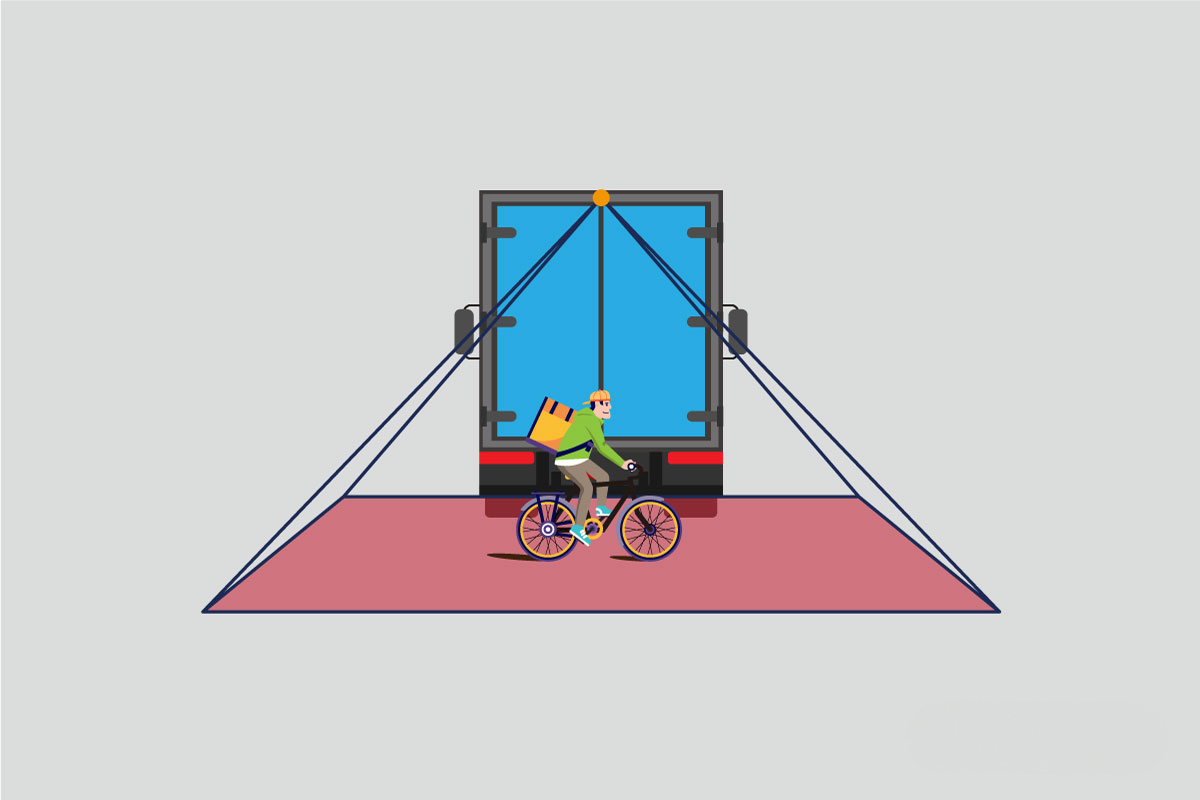

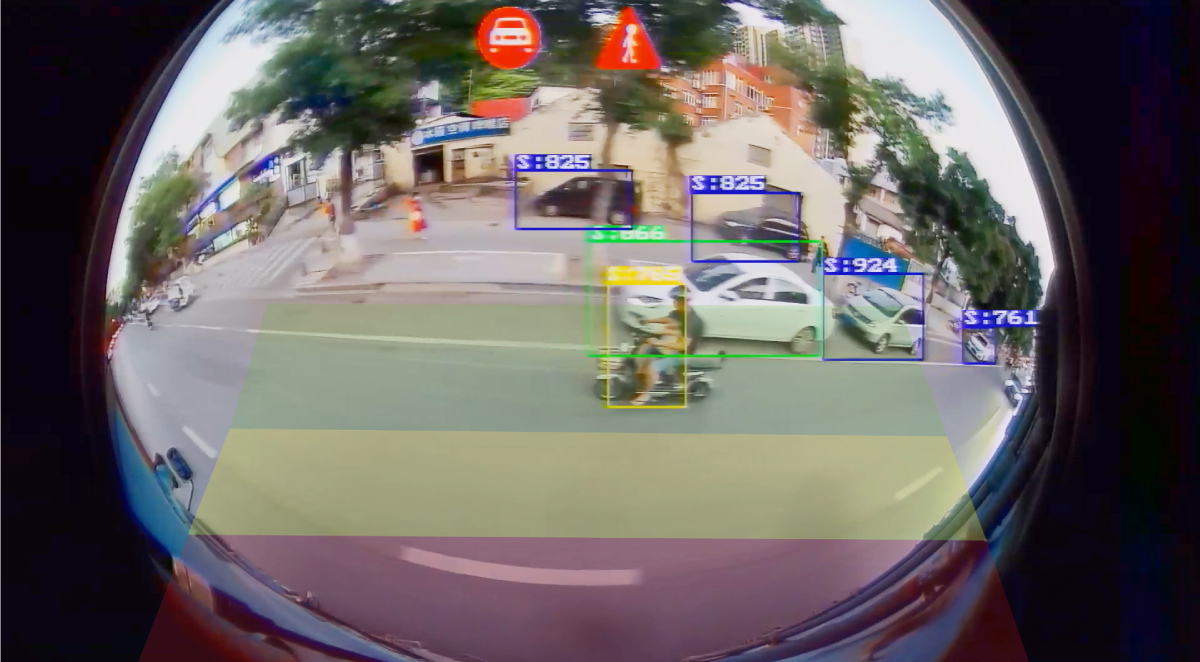

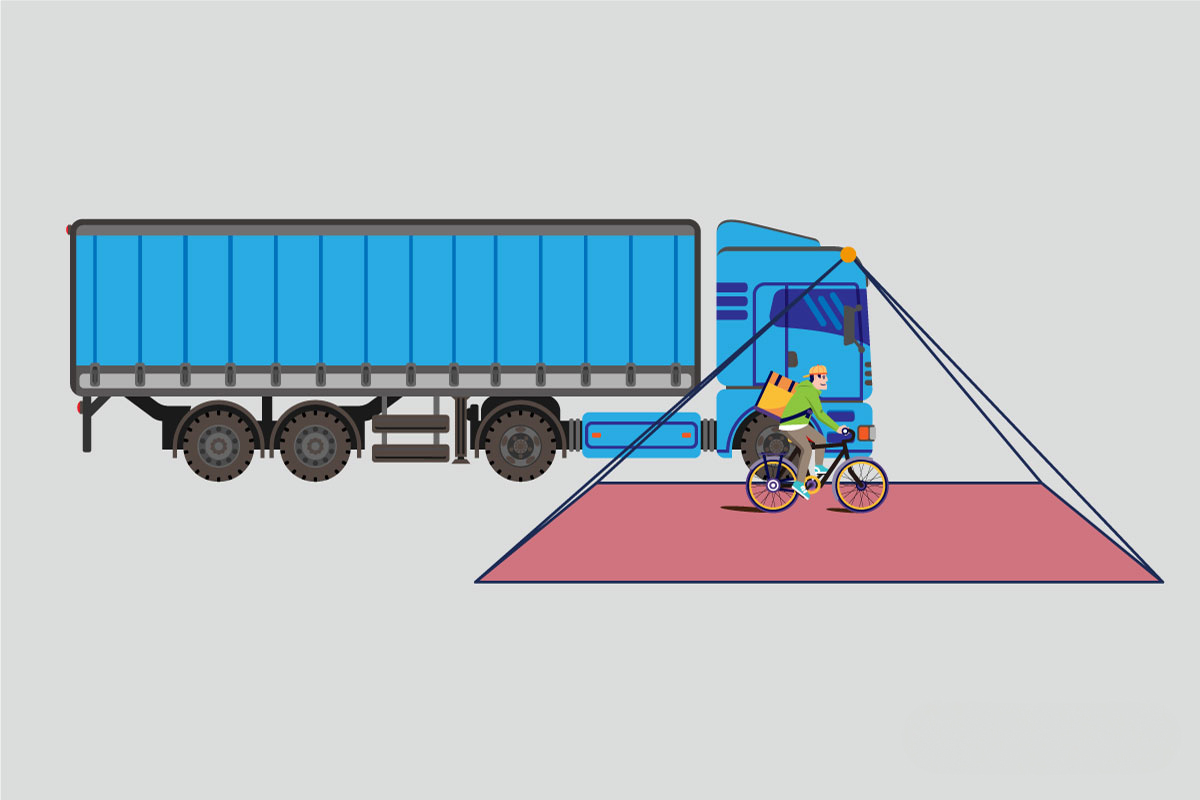

The 1080P Intelligent Real-time Pedestrian & Vehicle Detection Camera is designed for installation at a height of 2.5m to 3.5m for optimal performance. With a 150°/170° horizontal viewing angle, the camera detects pedestrians, cyclists, motorcyclists, and vehicles within an 8m/10m range in a vehicle’s blind zones. It provides real-time alerts, including 1080P video output and pedestrian alarm frames, helping to significantly reduce the risk of traffic accidents.







Durable and Reliable for Harsh Environments

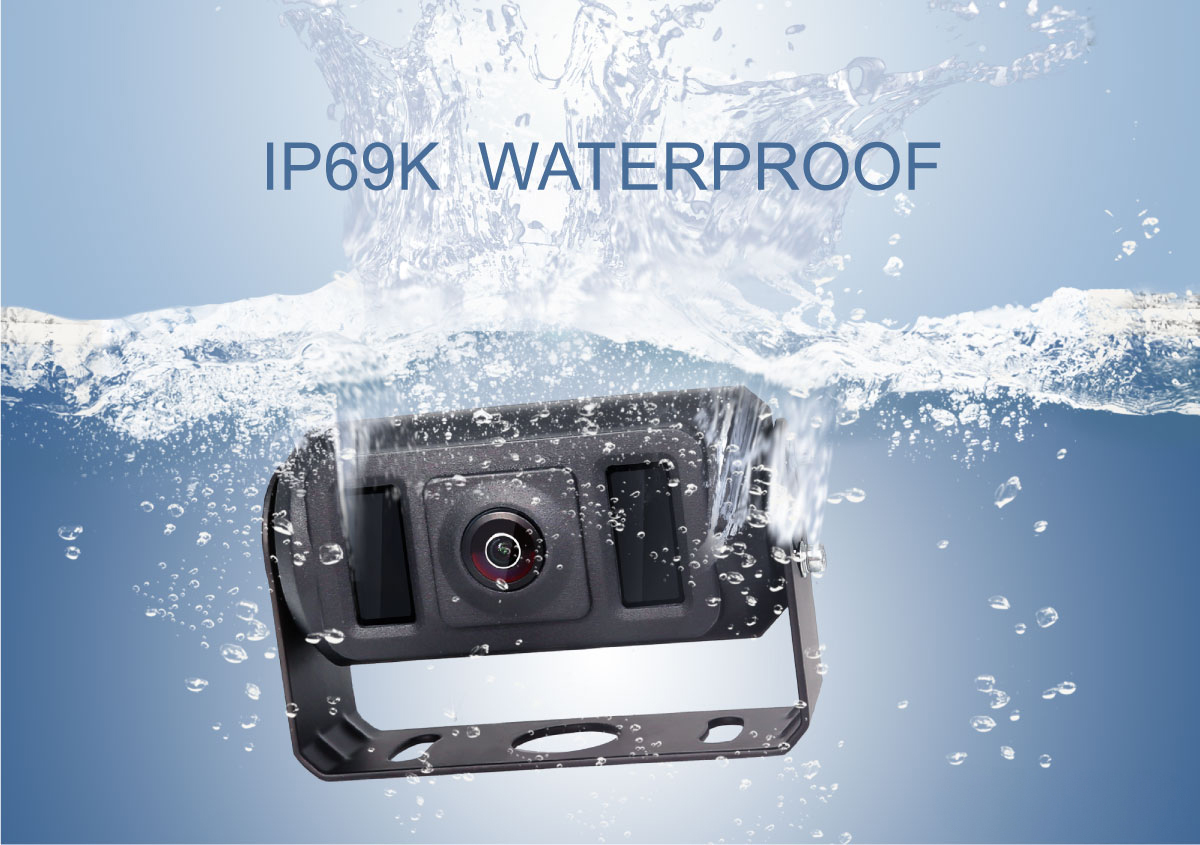

The 360° Around View + Pedestrian Detection System is built to withstand tough conditions. With an IP69K rating, it is fully waterproof, dustproof, and shockproof, ensuring reliable operation even in the most challenging working environments.

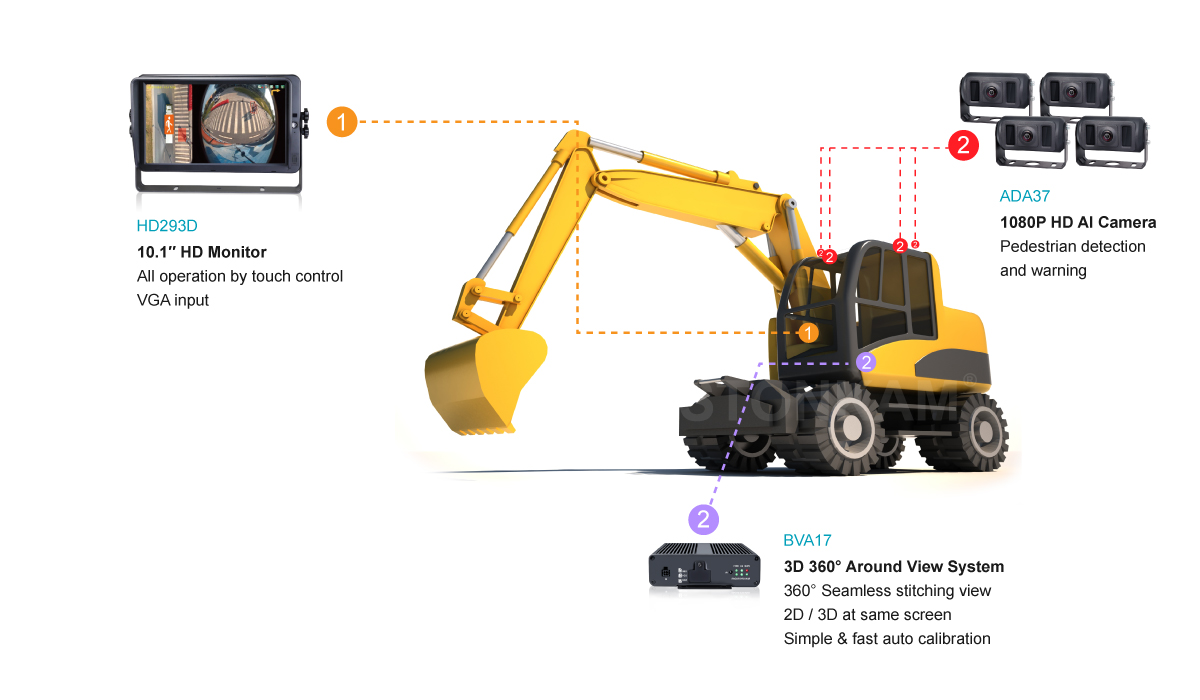

Applications







---
