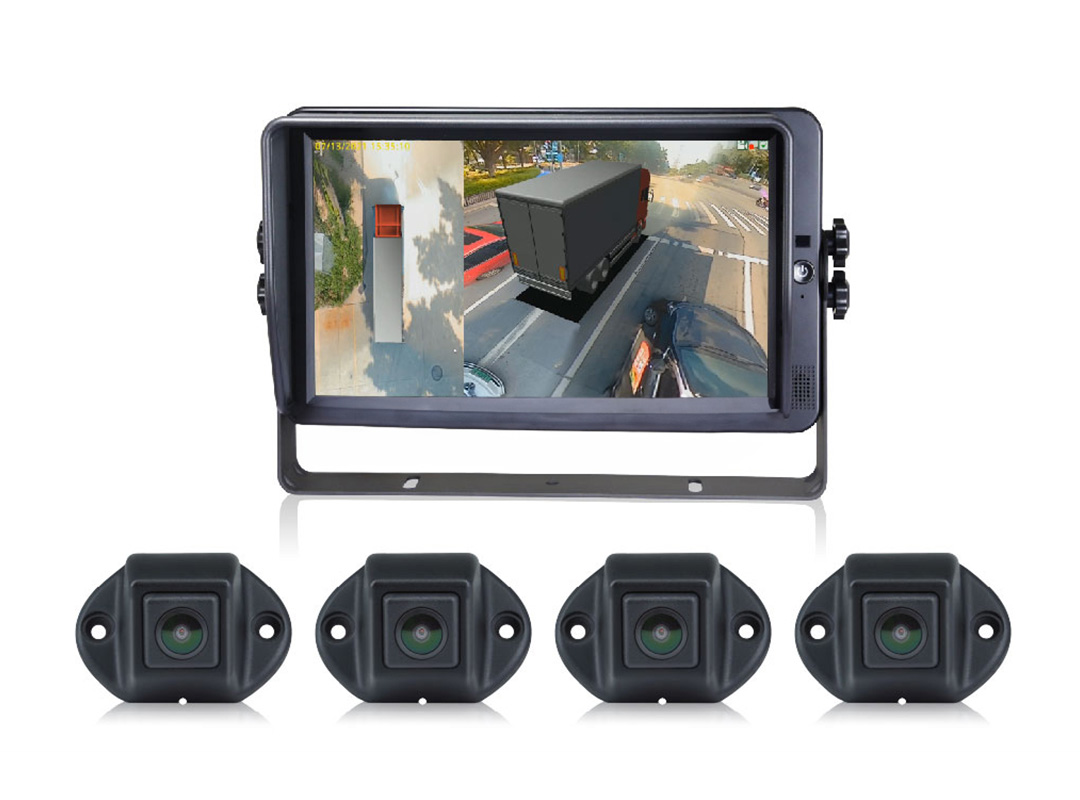

7-inch HD 360° Surround View Safe Driving Assistance Monitor
7-inch HD 360° Surround View Safe Driving Assistance Monitor
The 7-inch HD 360° Surround View Safe Driving Assistance Monitor integrates an AVM algorithm to provide a seamless 360° surround-view without requiring a control box.
- Delivers a blind-spot-free driving image for enhanced safety.
- Automatic calibration in just one minute with plane correction saves time and effort.
- Compatible with radar systems, ensuring extra security for trucks, public transport, and emergency vehicles.
Product Details
Features of the 7-inch HD 360° Surround View Safe Driving Assistance Monitor
- Integrated AVM Algorithm: Eliminates the need for an additional control box; provides panoramic images with 360° blind-spot-free coverage.
- HD Video: Supports 1080P fish-eye camera input, offering high-definition and stable real-time display.
- HB IPS Screen: Equipped with a high-brightness and HD IPS screen with large viewing angles.
- One-Minute Calibration: This feature features automatic calibration completed in one minute, with support for plane correction, saving time and effort.
- 3D/2D Switching: Offers multiple viewing modes, allowing seamless 3D and 2D switching.
- Super Rear View Mirror: 3D mode enhances the rearview mirror, providing full lane coverage for safer high-speed merging.
- Built-in FCW Function: Includes Front Collision Warning without requiring additional cameras or installation, reducing complexity.
- 360 System + MDVR: Compatible with existing MDVR systems, enabling AI 360° + MDVR functionality.
- Resource Integration: Supports radar access for enhanced vehicle protection.
- Other Functions: Optional capacitive touch screen, support for trigger wires, and GPS access for added versatility.
| LCD Dimension | 7 inch |
| Resolution | 1024 x 3 (RGB) x 600 |
| Contrast | 700:1 |
| Brightness | 600 cd/m2 |
| Aspect Ratio | 16:9 |
| Display Model | 3D/2D views switch freely |
| Video Input | Max.4CH×1080P （25FPS/30FPS） and 4CH * 720P （25FPS/30FPS） |
| Power Supply | 10-32V |
| Power Consumption | Max. 25W |
| Loudspeaker | 1W/8Ω |
| Operating Temp. & Humidity | -20~+70°C, RH 90%MAX |
| Storage Temp. & humidity | -30~+80°C, RH 90%MAX |
Why Do You Need a 360° Surround View System?
- Eliminate Blind Spot Dangers: Hidden hazards in blind areas increase accident risks.
- Avoid Costly Scratches: Navigate narrow roads safely, preventing scratches and disputes over repair costs.
- Combat Fraudulent Claims: Rising staged accident incidents create financial and legal challenges.
- Clarify Collision Responsibility: Indeterminate liability in rear-end collisions leads to disputes and delays.
- Reduce Installation Costs: Traditional monitoring systems require separate control boxes and displays, demanding more time and money.
The 360° surround view system addresses these challenges, offering a reliable, cost-effective, intelligent solution for safer driving.
7-inch HD 360° Surround View Safe Driving Assistance Monitor: Complete Driving Safety Solution!
Integrated AVM Algorithm for Simplified Installation
Eliminate the need for a separate control box! The monitor features a built-in AVM algorithm, enabling a seamless 360° bird’s-eye view and comprehensive monitoring.
Choose the 360° panoramic all-in-one device for a streamlined setup, enhanced safety, and effortless navigation—ensuring a superior driving experience.

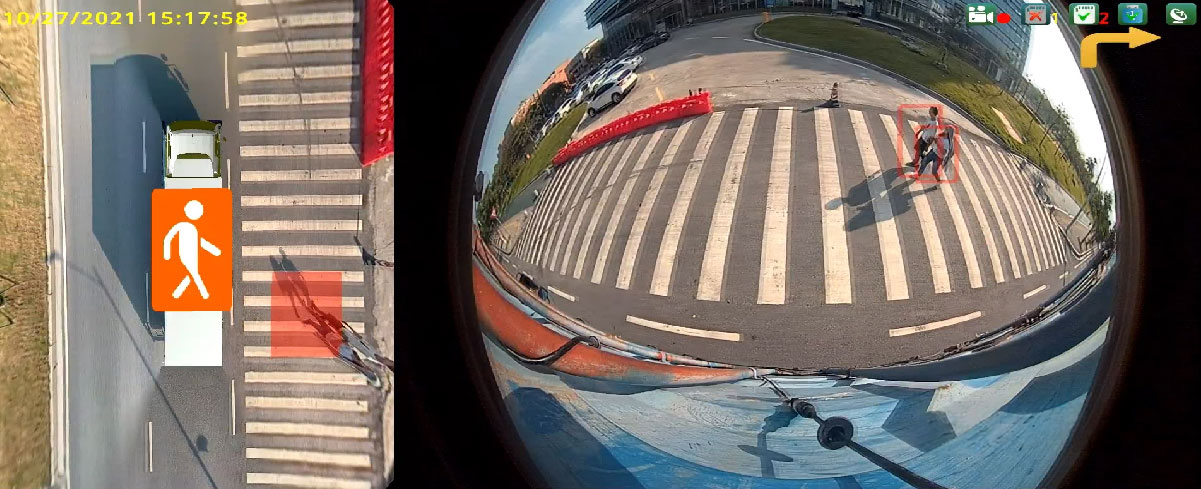

HD Video with Real-Time Monitoring and Minimal Delay
Experience sharp 1080P HD visuals with 4-channel fisheye camera input, delivering a clear and realistic driving scene. Enjoy smooth real-time monitoring with low display delay, ensuring timely and accurate situational awareness.

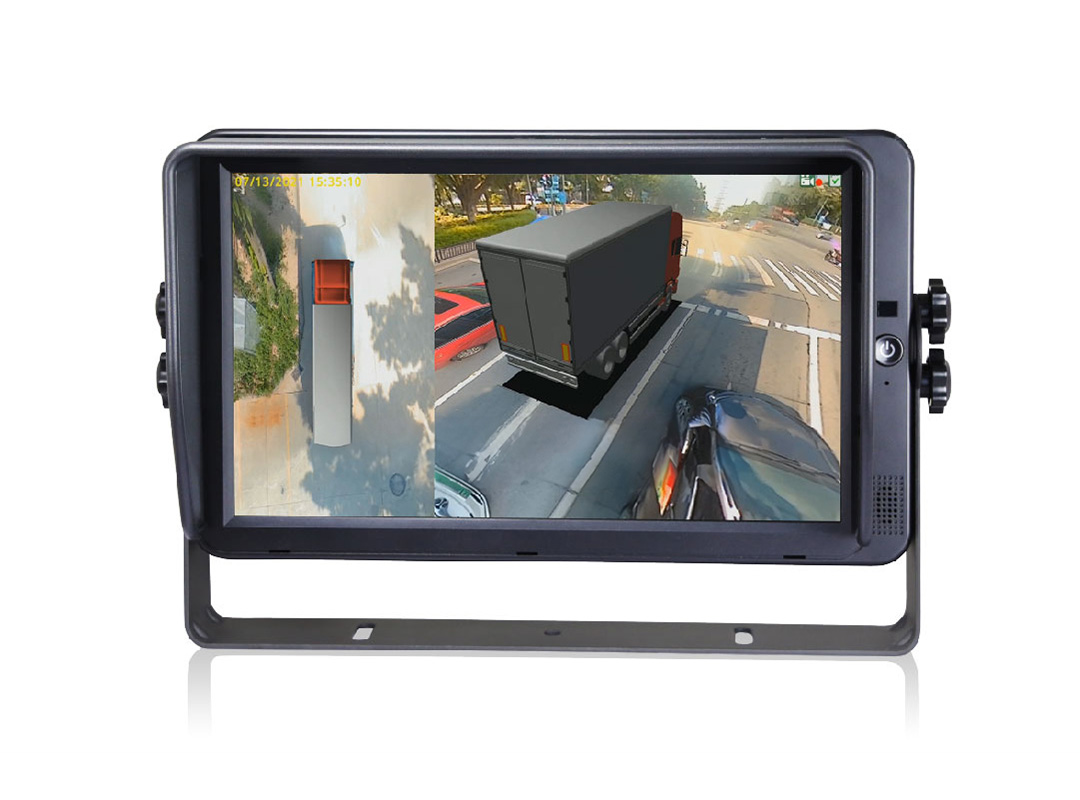

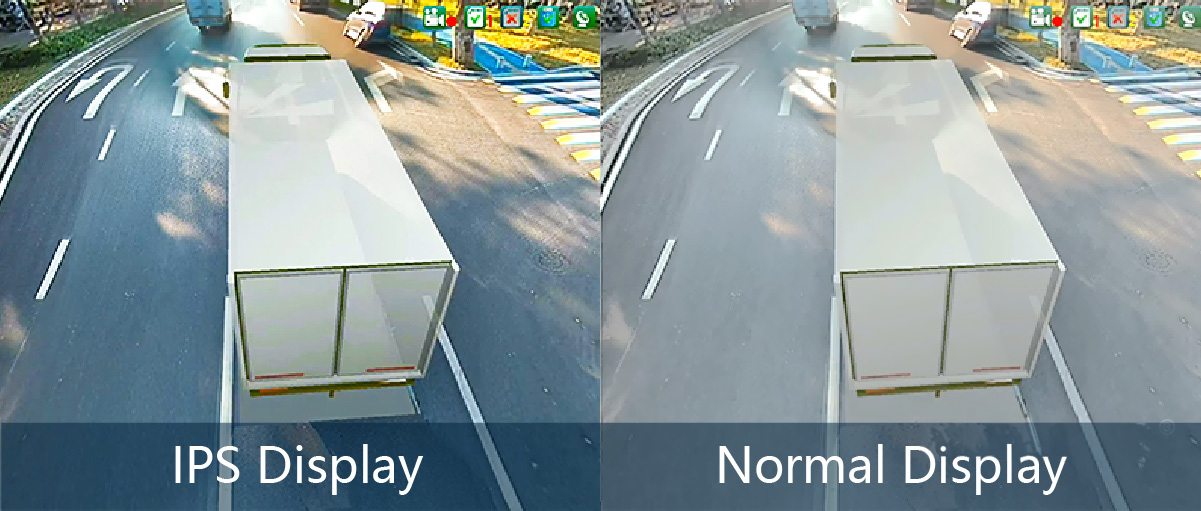

High-brightness HD IPS Screen with a Wide Viewing Angle
The 7-inch HD 360° Surround View Safe Driving Assistance Monitor features a high-definition IPS screen offering exceptional brightness and a wide viewing angle. Enjoy clear, vivid visuals from any perspective for enhanced driving safety.

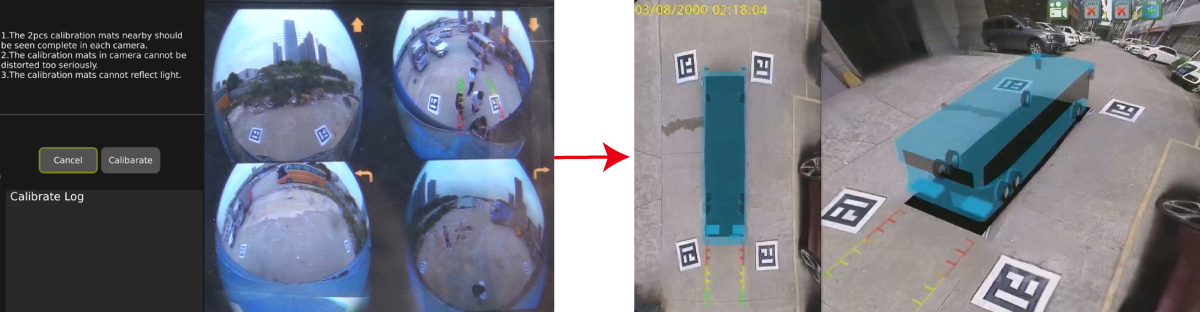

One-Minute Calibration for Quick Setup
The 7-inch HD 360° Surround View Safe Driving Assistance Monitor features automatic calibration that is completed in just one minute using a touch screen or remote control. Simply place four calibration mats in any arrangement to achieve precise calibration, saving both time and effort.

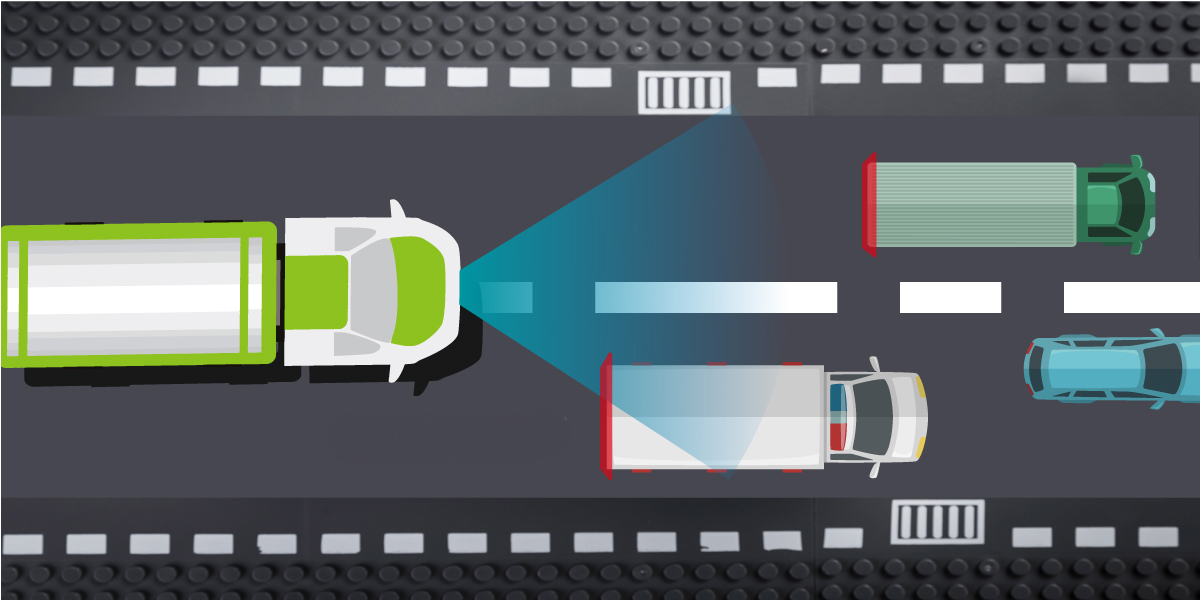

Built-in Forward Collision Warning (FCW) for Enhanced Safety
The 7-inch HD 360° Surround View Safe Driving Assistance Monitor includes FCW functionality without needing an additional camera, reducing installation time and cost. Using advanced technology, it analyses the distance and relative speed between vehicles, predicts potential rear-end collisions, and alerts the driver, helping to prevent accidents.

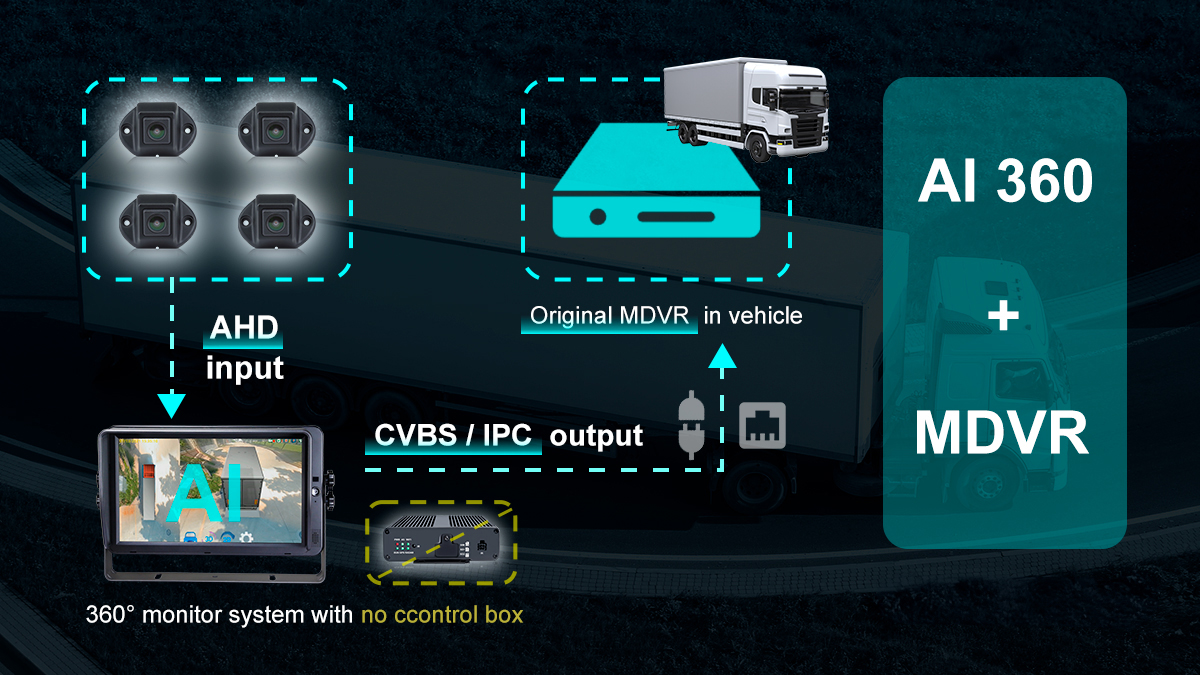

360 Panorama System with MDVR Integration
The 7-inch HD 360° Surround View Safe Driving Assistance Monitor seamlessly integrates with existing MDVR systems. This advanced connection enables the MDVR to utilize AI-powered 360° panoramic functionality, significantly improving display quality and safety features. This combination offers a comprehensive in-vehicle monitoring solution, enhancing safety and operational efficiency for drivers and fleet managers alike.

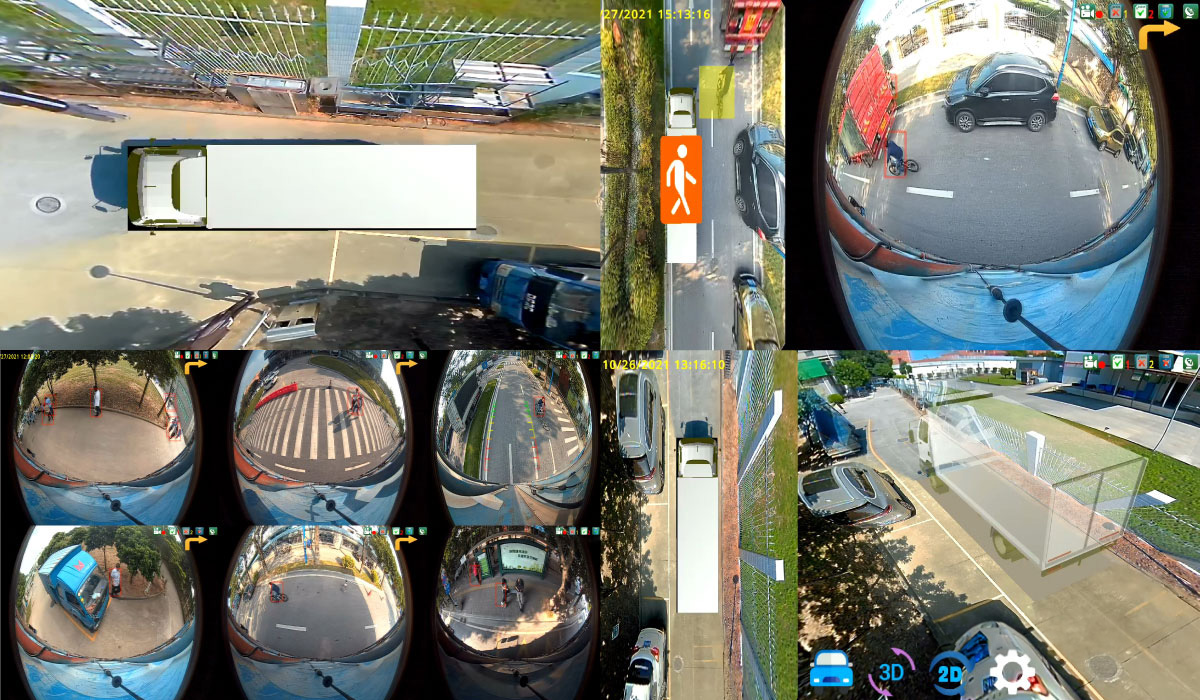

Multiple Viewing Modes: 3D and 2D Switchable
The 7-inch HD 360° Surround View Safe Driving Assistance Monitor offers flexible viewing options with 3D and 2D switchable modes. Users can effortlessly toggle between these modes to suit different driving and monitoring needs, ensuring a tailored and comprehensive visual experience for all situations.

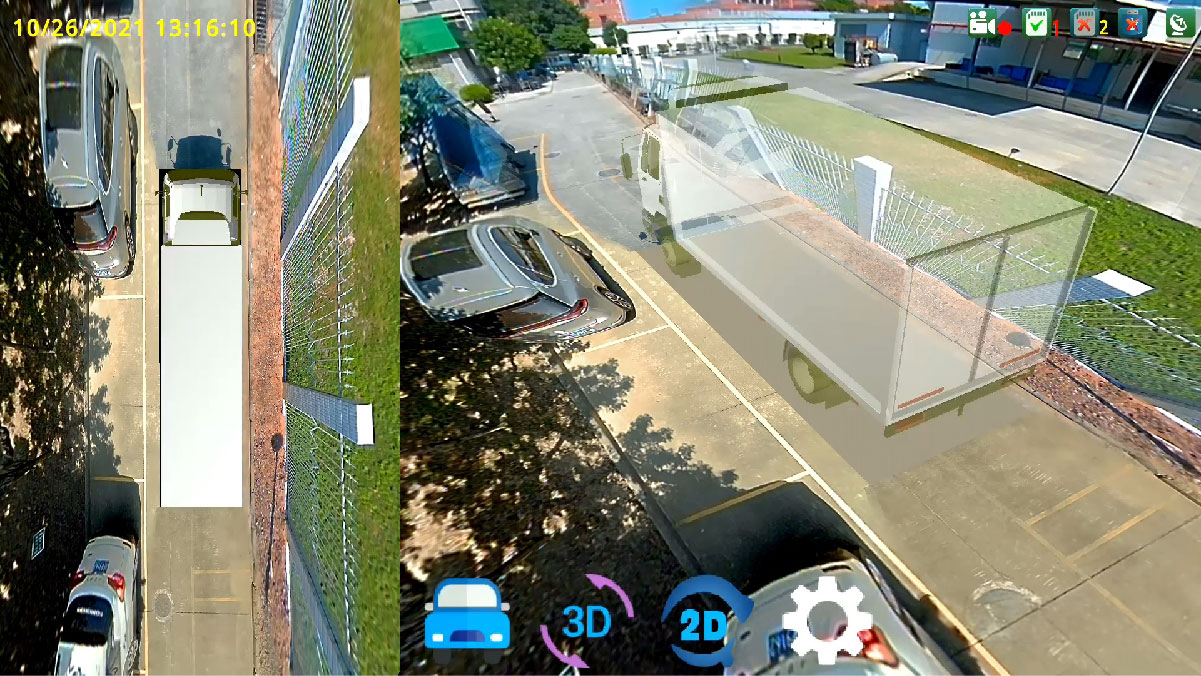

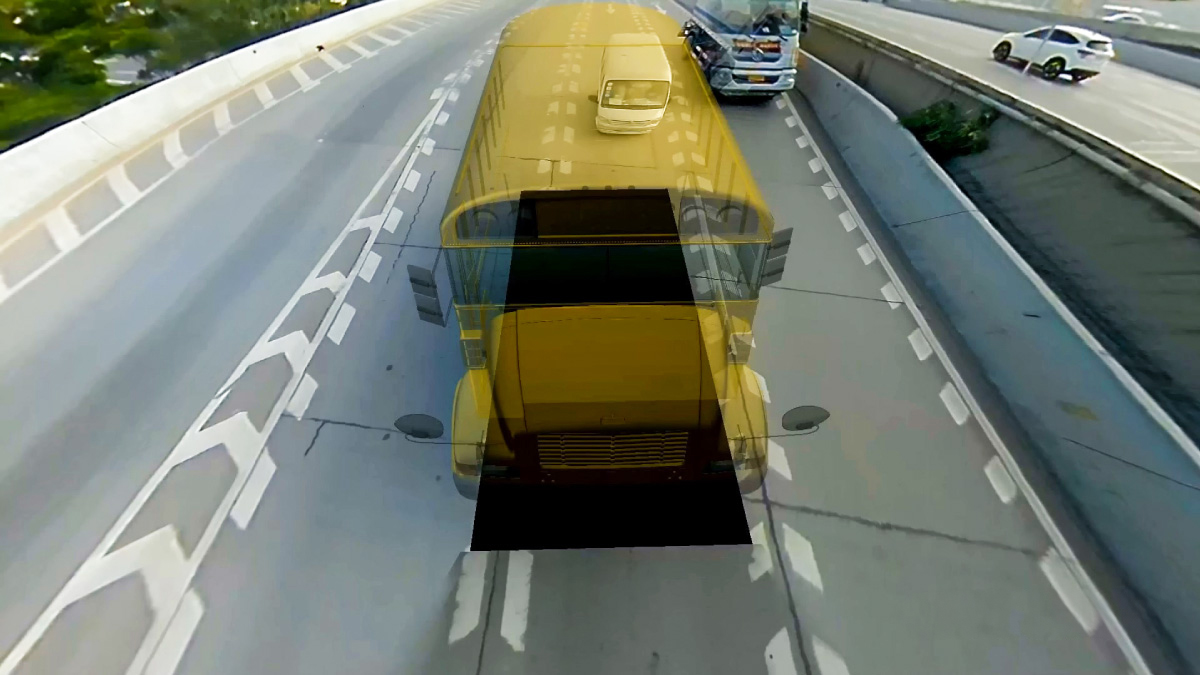

Transparent 3D View for Enhanced Safety
The System features a transparent vehicle model in its 3D effect mode, eliminating blind spots by providing a clear view of road conditions behind the vehicle. Unlike traditional systems, which obscure traffic behind with a solid vehicle image, this advanced technology offers a wider field of vision, including additional driveway scenes on the left and right. This comprehensive perspective significantly improves safety, especially during high-speed lane changes or merging.

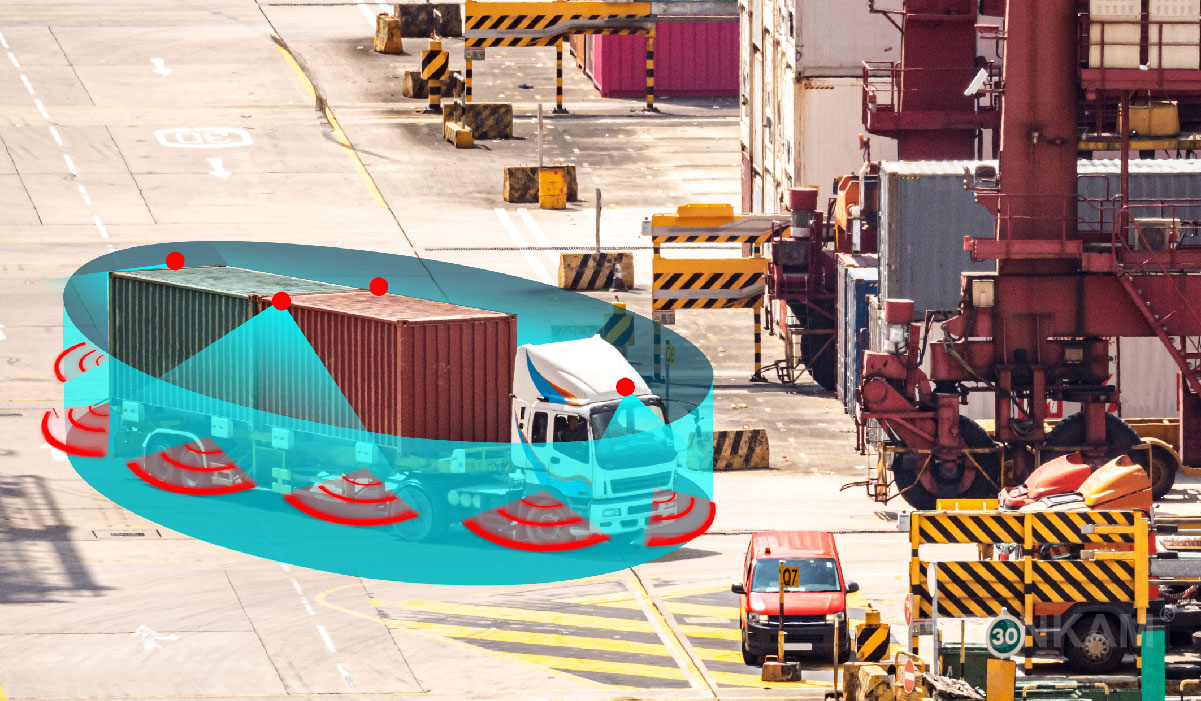

Comprehensive Vehicle Protection with Radar Integration
The 7-inch HD 360° Surround View Safe Driving Assistance Monitor supports radar integration, enhancing safety by actively detecting and warning drivers about nearby obstacles and potential hazards. Real-time video and audio overlays provide a clear and immediate understanding of the surroundings, ensuring full-body protection for the vehicle.

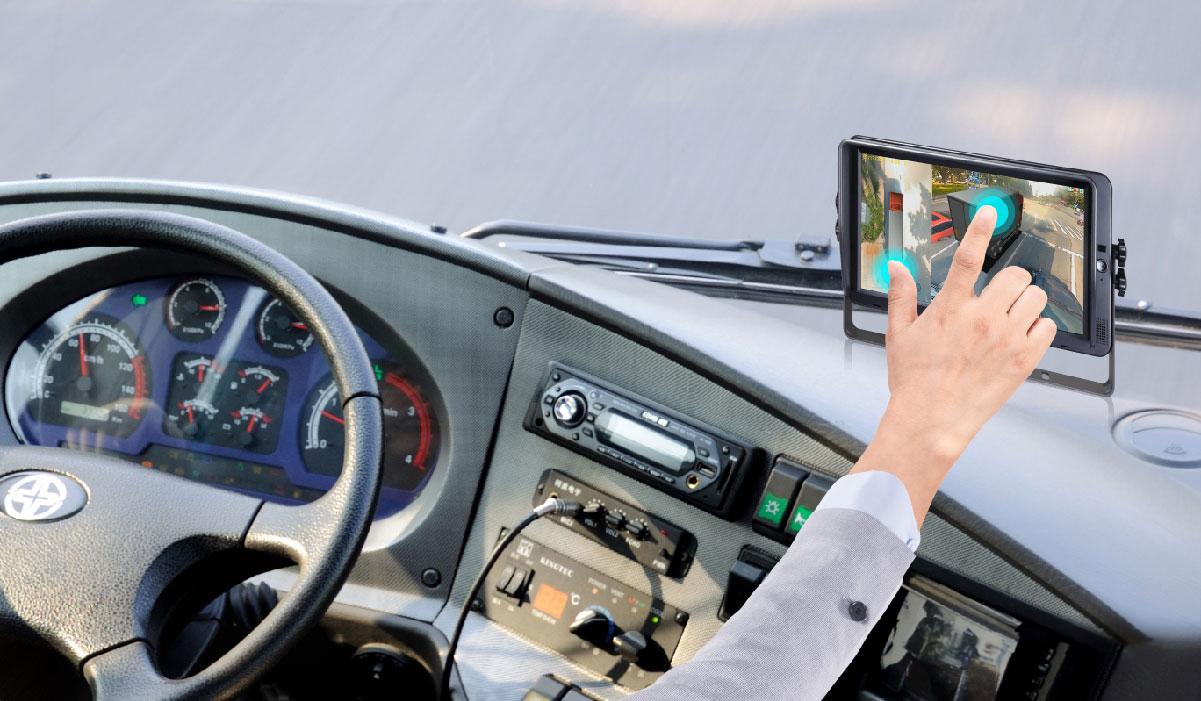

Optional Capacitive Touch Screen
The 7-inch HD 360° Surround View Safe Driving Assistance Monitor offers an optional capacitive touch screen, delivering a user-friendly interface for seamless operation and enhanced convenience.

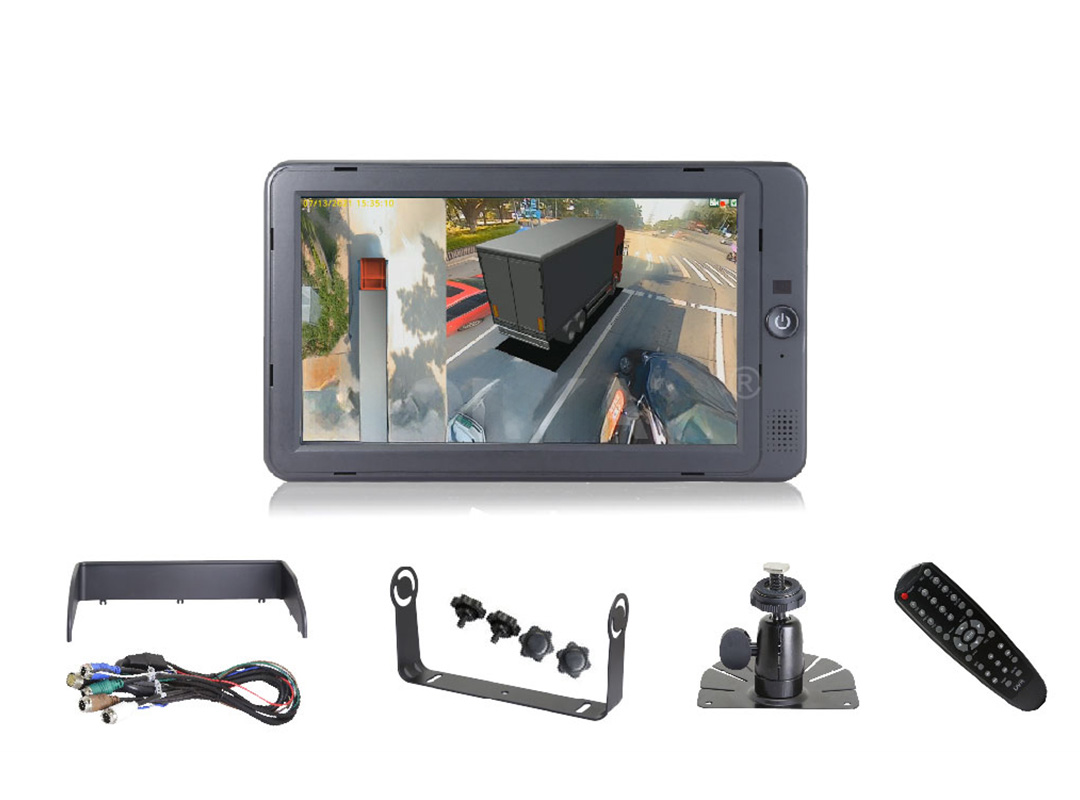

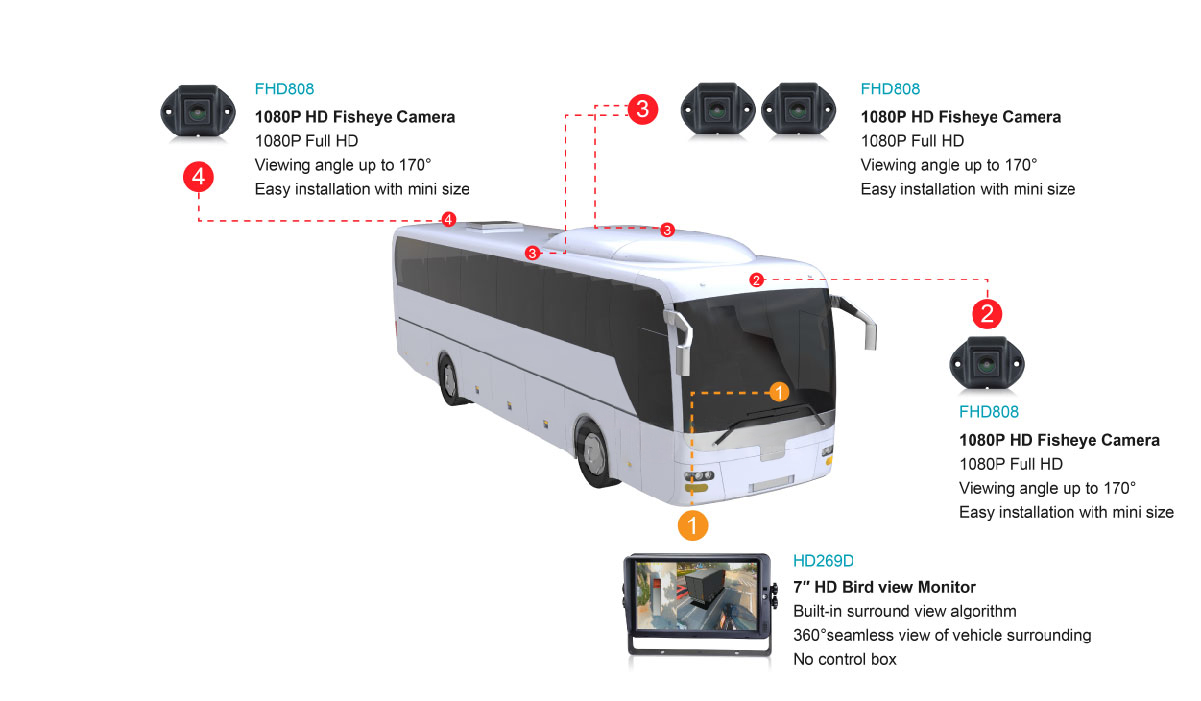

Applications
The 7-inch HD 360° Surround View Safe Driving Assistance Monitor is ideal for trucks, public transports, emergency vehicles, and other large vehicles. It eliminates blind spots around the vehicle, safeguarding drivers and reducing the risk of dangerous accidents.
