HD Intelligent Pedestrian Detection Vehicle Ethernet Camera
HD Intelligent Pedestrian Detection Vehicle Ethernet Camera
Our HD Intelligent Pedestrian Detection Ethernet Camera provides cutting-edge technology to enhance driving safety through real-time monitoring. Equipped with advanced features, this system is a reliable companion for a safer and more efficient driving experience.
Product Details
Features of the HD Intelligent Pedestrian Detection Vehicle Ethernet Camera
- Pedestrians & Vehicle Detection and Warning
Capable of identifying pedestrians, cyclists, electric bikers, and more, ensuring comprehensive detection for enhanced safety. - Audio Alarm
Equipped with an audio alarm output to provide real-time warnings to drivers, improving reaction time and reducing risks. - High Compatibility
Supports upgrades, pull-stream functions, and AVTP integration with third-party platforms, streamlining video management and system efficiency. - Large Viewing Angle
- Side View Camera Lens: 6mm lens offering a 52° horizontal field of view.
- Rear View Camera Lens: 2.3mm lens offering a 130° horizontal field of view.
These wide angles provide extensive coverage to monitor blind spots effectively.
- Wide Dynamic Range (WDR)
With a 120dB WDR, the camera delivers sharp and clear images in varying lighting environments, from dim conditions to intense brightness. - Waterproof & Shock-Resistant
Built to withstand harsh conditions with IP69K waterproofing, dust proofing, and superior shock resistance, ensuring durability and consistent high-quality performance.
This robust feature set makes the camera a versatile solution for diverse applications, offering reliability and advanced safety for vehicles of all types.
| Anti-vibration | 5.9G |
| Detection Distance | Front/side view: 0.5M-20M (Horizontal) |
| Rearview: 0.5-~12m (Horizontal) | |
| DC10V~32V | |
| Consumption (12V IN) | 150mA(IR light off) |
| 700mA(IR light on) | |
| Frame Rate | 25/30 |
| Output signal | AHD(1.0Vp-p, 75Ohm) |
| Resolution | 1920（H） x 1080（V） |
| Viewing Angle | Front/side view: 52° (Horizontal) |
| Rearview: 130° (Horizontal) | |
| Audio Output | Warning sound signal output |
| Communication Interface | USB 2.0 (for software upgrade) |
| Cable Length | 3M |
| Operating Temperature | -20 ~ +70℃ |
| Storage Temperature | -30 ~ +80℃ |
| Waterproof Rating | IP69K |
| Dimension | 95 x 60 x70mm |
| Weight | 500g |
| Housing Color | Black |
| Output mode | 100Base-T1/BroadR-Reach |
| Network protocol | RTSP/ISO17215 |

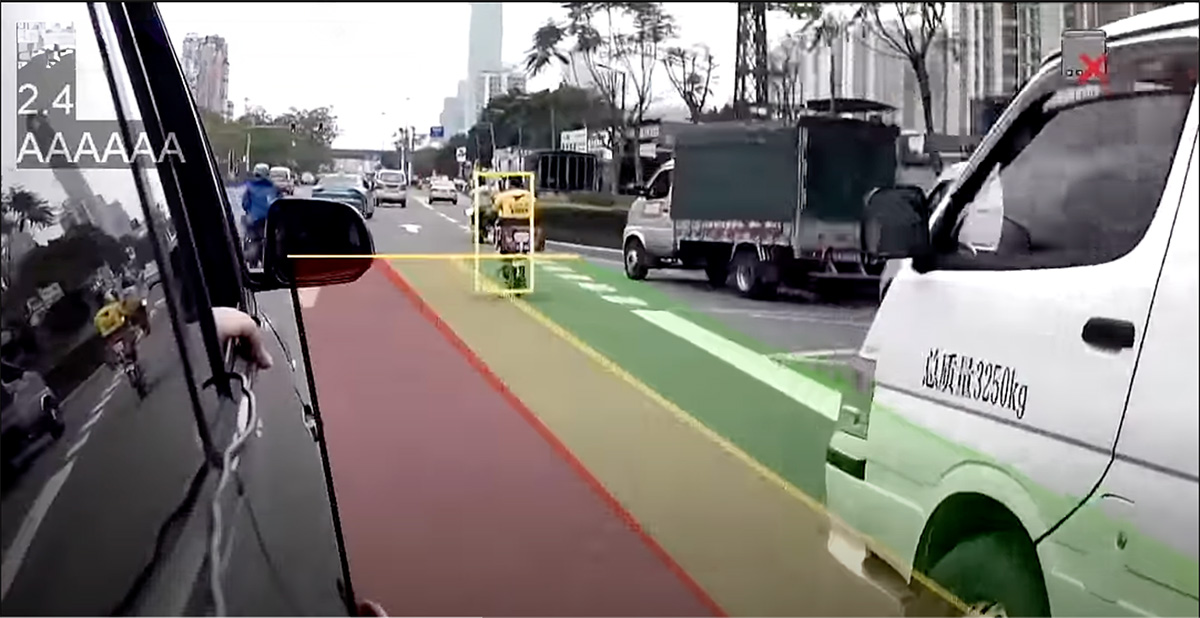

Side View: The 1080P Vehicle AI Pedestrian Detection Camera
The 1080P Vehicle AI Pedestrian Detection Camera for side-view applications is designed to enhance safety in buses, trucks, and other commercial vehicles. With advanced AI technology, the camera provides real-time pedestrian and vehicle detection along the vehicle’s sides, minimizing blind spots and alerting drivers to potential hazards.
Rear View: The 1080P Vehicle AI Pedestrian Detection Camera
The 1080P Vehicle AI Pedestrian Detection Rearview Camera is a high-performance safety solution designed for buses, trucks, and commercial vehicles. Positioned at the rear of the vehicle, this camera ensures safe reversing and parking by providing real-time monitoring of pedestrians, vehicles, and obstacles.
Solving Blind Spot and Safety Risks for Large and Construction Vehicles
Large vehicles and construction vehicles face unique challenges due to their extensive blind spots, high safety risks, and operational complexities. Here’s how these issues can be addressed effectively:
- Integrated Monitoring Systems
- Unified Platform: Implement an intelligent monitoring system that integrates multiple devices such as blind spot cameras, radar sensors, and AI pedestrian detection cameras. This ensures a single platform for real-time monitoring and data management.
- Device Interconnection: Use technologies like Ethernet BroadR-Reach to simplify connectivity between devices, reducing the complexity of installation and integration.
- Comprehensive Blind Spot Elimination
- 360° Monitoring: Equip vehicles with 360° panoramic systems that provide a bird’s-eye view, eliminating blind spots from all angles.
- Specialized Cameras: Use side-view and rear-view AI cameras to ensure areas like the vehicle’s sides and rear are continuously monitored.
- Advanced Detection Capabilities
- AI-Powered Detection: Leverage deep learning algorithms to identify pedestrians, cyclists, and vehicles in real time, ensuring timely alerts for collision avoidance.
- Radar Integration: Combine camera systems with millimetre-wave radar to detect objects in poor visibility conditions, such as heavy rain, fog, or low-light environments.
- Simplified and Scalable Installation
- Plug-and-Play Design: Adopt devices that require minimal wiring and support quick installation, saving time and labour.
- Modular Upgrades: Use modular systems that can be easily expanded or updated as needed without overhauling the entire system.
- Centralized Fleet Management
- MDVR Integration: Integrate cameras and radar systems with intelligent MDVR platforms to centralize video recording, storage, and live monitoring.
- Remote Monitoring: Allow fleet managers to oversee vehicles remotely, ensuring compliance with safety protocols and reducing operational risks.
HD Intelligent Pedestrian Detection Vehicle Ethernet Camera: Safer and More Efficient
The HD Intelligent Pedestrian Detection Vehicle Ethernet Camera is designed to enhance vehicle safety and operational efficiency, especially in environments with high pedestrian traffic or large vehicle blind spots. This advanced camera uses cutting-edge technology to ensure that pedestrians and other potential hazards are detected promptly, minimizing risks and improving driver awareness.
Pedestrian & Vehicle Detection, Intelligent Driving Assistance
The 1080P Intelligent Pedestrian & Vehicle Detecting and Warning Camera is designed to enhance vehicle safety through advanced deep learning technology. This cutting-edge camera system provides accurate pedestrian and vehicle detection, alerting drivers to the presence of pedestrians, cyclists, motorcyclists, and other potential hazards in real-time.
Supporting Audio Alarm Output and Real-time Warning
The 1080P Intelligent Pedestrian & Vehicle Detection Camera goes beyond visual alerts by offering audio alarm outputs for real-time warnings, ensuring enhanced safety for both the driver and pedestrians.
High Compatibility for Efficient Video Management
The 1080P Intelligent Pedestrian & Vehicle Detection Camera is designed for seamless integration with existing systems, enhancing video management efficiency.
Compatibility with Central Control Screen for Multiple Vehicle Types
The 1080P Intelligent Pedestrian & Vehicle Detection Camera is designed to integrate seamlessly with central control screens, making it highly adaptable across various vehicle types. Supporting 100Base-T1/BroadR-Reach Ethernet output, RTSP, and ISO17215 network protocols, this camera ensures smooth operation and efficient management, particularly in demanding environments like engineering machinery.
Large Viewing Angle and Wider Driving Field of View
The 1080P Intelligent Pedestrian & Vehicle Detection Camera offers a 130° rear viewing angle for blind spot monitoring and a detection range of up to 20 meters for side and front cameras. It can be installed both horizontally and vertically to detect pedestrians from all directions. The camera provides real-time alerts (1080P video and pedestrian warning frame) to drivers, enhancing safety and reducing traffic accident risks. Its colour night vision ensures reliable performance in all lighting conditions.
Wide Dynamic Range for Various Scenarios
Equipped with 120dB Wide Dynamic Range (WDR), the 1080P Intelligent Pedestrian & Vehicle Detection Camera delivers clear, high-quality images in diverse lighting conditions, ensuring reliable performance across various environments and application scenarios.
IP69K Rated: Dustproof, Shockproof, and Weatherproof
The 1080P Intelligent Pedestrian & Vehicle Detection Camera is built to withstand harsh conditions with its IP69K rating. It is dustproof, shockproof, and weatherproof, ensuring durability and reliable performance even in extreme environments.
Application
The 1080P HD Intelligent Pedestrian Detection Ethernet Vehicle Camera uses AI deep learning technology to intelligently recognize pedestrians, bicycles, and vehicles in real time, covering areas in front, on the sides, and behind the vehicle. It provides immediate audio and video alerts to the driver, enhancing safety. With Ethernet connectivity, it simplifies management, offering an efficient blind spot monitoring solution for various commercial vehicles, including trucks, buses, construction vehicles, and forklifts.
