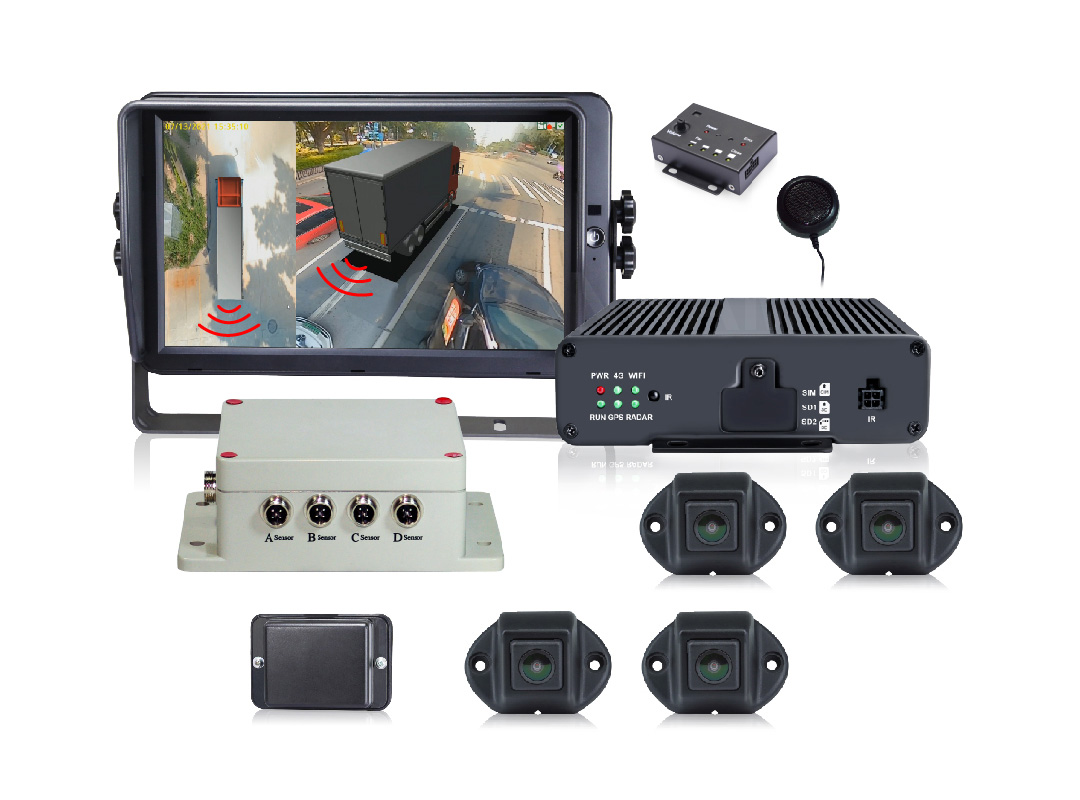

360° 3D Panoramic Driving Radar System
360° 3D Panoramic Driving Radar System
The 360° 3D Panoramic Driving Radar System integrates an AVM algorithm for seamless 360° panoramic monitoring without the need for a control box. With one-minute automatic calibration and plane correction, it saves time and effort. Compatible with radar, it enhances safety for trucks, buses, and emergency vehicles by eliminating blind spots and ensuring secure driving.
Product Details
Features of the 360° 3D Panoramic Driving Radar System
- 1080P High Definition: Fisheye camera input with stable HD images and screen delay reduced to 150ms for excellent real-time display.
- Automatic Calibration: Complete calibration in just 1 minute, with automatic plane correction for ease of use.
- Multiple Viewing Models: Flexible 3D/2D view switching to suit various driving conditions.
- Video Recording: Dual 512GB SD cards with ultra-capacitor for secure video file storage.
- AI Integration: Built-in AI algorithm combining Lane Departure Warning (LDW), Forward Collision Warning (FCW), and Blind Spot Detection (BSD) for 360° monitoring and alarm triggering.
- Super Rearview Mirror: The 3D effect provides clear lane coverage, enhancing safety when merging at high speeds.
- Quick Image Display: Single-view images pop up smoothly with low latency.
- RTSP Video Output: Supports RTSP output for video streaming.
- Radar and Sensor Compatibility: Works with radar and parking sensors, overlaying real-time video and audio for active driver warnings.
- IP Camera Support: Can connect additional cameras to expand viewing angles.
- External AI Pedestrian Detection: Optional external cameras for pedestrian detection, with a maximum arithmetic power of 8T and a detection range of up to 10 meters.
- Wide Operating Temperature: Functional in temperatures from -20ºC to +70ºC.
- Low-Lux Night Vision: Visibility down to 0.1lux without the need for infrared light.
- Optional GPS Tracking: Provides GPS tracking as an additional feature for vehicle monitoring.
360° vision system:
| Video input | Max.4CH×1080P@25fps/1080P@30fps |
| Display mode | 2D/3D |
| Resolution | 1080P |
| Frame Rate | 25/30 |
| Storage | Max. 2×512GB SD card |
| Compressed encoding | Max. 4CH×1080P H.264 encoding |
| Code stream | 4MB/2MB |
| Power supply | 10-32V |
| Operating voltage range of external trigger signal | 10-32V |
| Operating current | <2A/12V |
| Operating temperature | -20℃ ~ 70℃ |
| Storage temperature | –40℃ ~85℃ |
| Operating humidity | 10%-90% |
Radar system:
| Operation Frequency | 76.00 ~ 77.00GHz |
| Transmitter Type | FMCW |
| Power Supply | 10 to 32V DC |
| Detection Range | Detection length limit 0.2~40m, up to 5 detection zones(distance of each zone can be configured ) |
| Detection Zone Visualization | Green (furthest), Yellow(middle), Red (closest) |
| Detection Tolerance | +/- 15 cm |
| Antenna Beam Angle | 120° (Horizontal), 14° (Vertical) |
| Trigger Input ×1 | Trigger from vehicle, high active |
| Range above +10Vdc, up to supply voltage | |
| Alarm Output ×1 | Switched to Ground when activated |
| Loading up to 1.0A | |
| Video format | 720P 25fps/30fps, 1080P 25fps/30fps |
| Wi-Fi module | 2.4GHz(Option) |
| Operating Temperature | -20 ~ +70°C |
| Storage Temperature | -30 ~ +80°C |
| Waterproof rating | IP69K (sensor),IP66(Control Box) |
| Anti-vibration | ISO 16750-3 2012(5.9G) |
| Dimensions | Sensor: 106.6(W) ×72.9(H) ×34.5(D) mm |
| Control Box: 152.6(W) ×89.2(H) ×53.8(D) mm | |
| Weight | 158.8Grams (sensor), 240Grams (control box) |
| Mounting | Two (4.5mm) diameter mounting holes (sensor) |
| Four (6mm) diameter mounting holes (control box) |
Why Do You Need AUTO VANTAGE 360° Around View Driving Assistance System?
Aftermarket Surround View Camera System – The Necessity:
- Hidden Dangers in Blind Spots: Blind spots around the vehicle can lead to unnoticed hazards, but the 360° system provides full coverage to ensure no danger goes unseen.
- Scratching in Narrow Roads: When driving in tight spaces, there’s a risk of damaging the vehicle. The system offers a clear bird’s-eye view, helping drivers avoid scratches by manoeuvring safely.
- Increasing Risk of Accident Fraud: In today’s environment, racketeers may stage accidents. A 360° camera system records all around the vehicle, providing crucial evidence to clarify responsibility in case of fraudulent claims.
- Indeterminate Responsibility in Rear-End Collisions: Rear-end accidents can be difficult to prove in terms of fault. With continuous monitoring and real-time footage, the system helps provide clarity on the events leading to a collision, ensuring fair accountability.

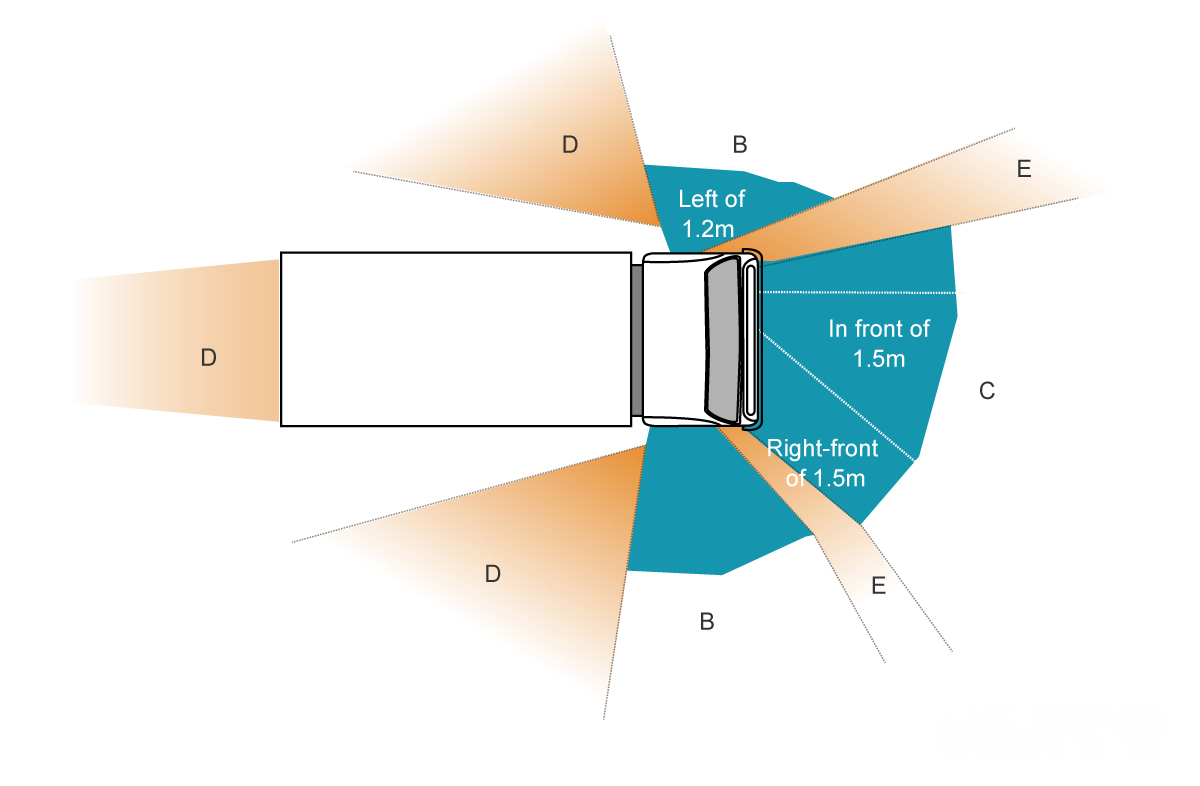

Unignorable Vehicle Blind Spots
Blind spots are responsible for a significant proportion of road accidents, posing a major threat to driver and pedestrian safety. These areas, which are not visible through the vehicle’s standard mirrors, can lead to collisions if not properly monitored. The AUTO VANTAGE 360° Around View Driving Assistance System eliminates these blind spots, providing a full panoramic view around the vehicle to enhance awareness and prevent accidents.

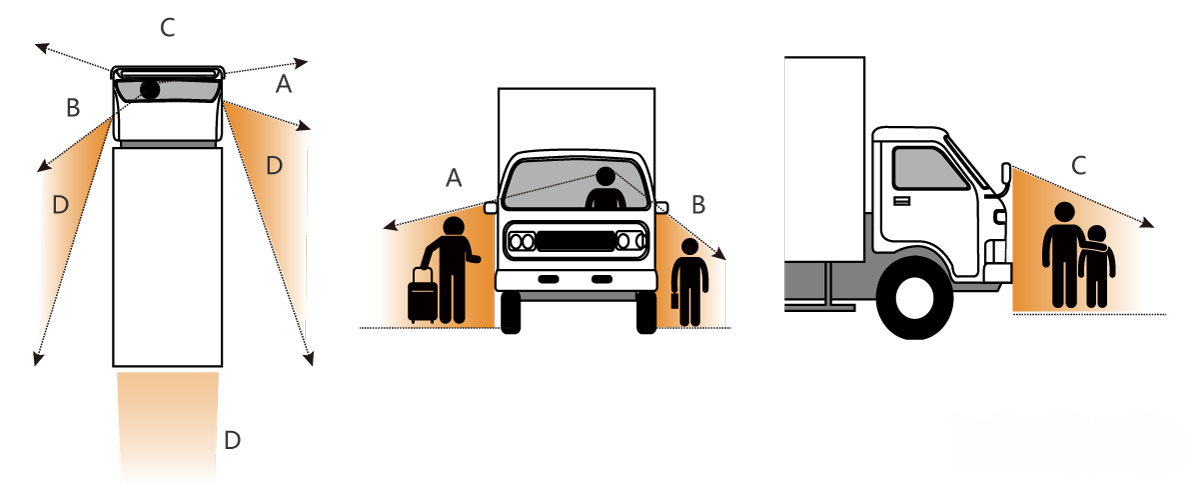

It turns out that although areas A, B, or C may not typically be considered blind spots, the lower part of a high vehicle can create a blind zone. This is especially true for trucks, buses, and other large vehicles, where the height and size of the vehicle can obstruct the driver’s view of the road below. The AUTO VANTAGE 360° Around View Driving Assistance System helps eliminate these hidden blind areas, providing a comprehensive, clear view of the surroundings to ensure safer driving.
- Area A, B, C: Half Blind Area
The severity of danger depends on the size of the vehicle. - Area D: Full Blind Area
Beyond the driver’s sight and three rearview mirrors. - Area E: Full Blind Area
The A-pillar near the windshield obstructs the view, creating blind spots.
Watch Out for Truck’s Blind Spots!
Trucks have significantly larger blind spots compared to regular cars due to their size and length. This makes it harder for truck drivers to see vehicles in certain areas around them. These blind spots can be dangerous, especially when driving next to or behind a truck. For your safety, always stay aware of these blind spots and avoid lingering in areas where the truck driver may not be able to see you. It’s important to give trucks extra space on the road to prevent accidents and ensure everyone’s safety.
AUTO VANTAGE 360° Surround View System: Complete Safeguard for Your Driving
360° Seamless Stitching
The AUTO VANTAGE 360° Around View Driving Assistance System offers a true 360° panoramic bird view by supporting 4CH inputs. This system ensures no blind spots around your vehicle, providing seamless monitoring to enhance driving safety. With this advanced technology, you can confidently navigate any situation, knowing that every angle is covered.

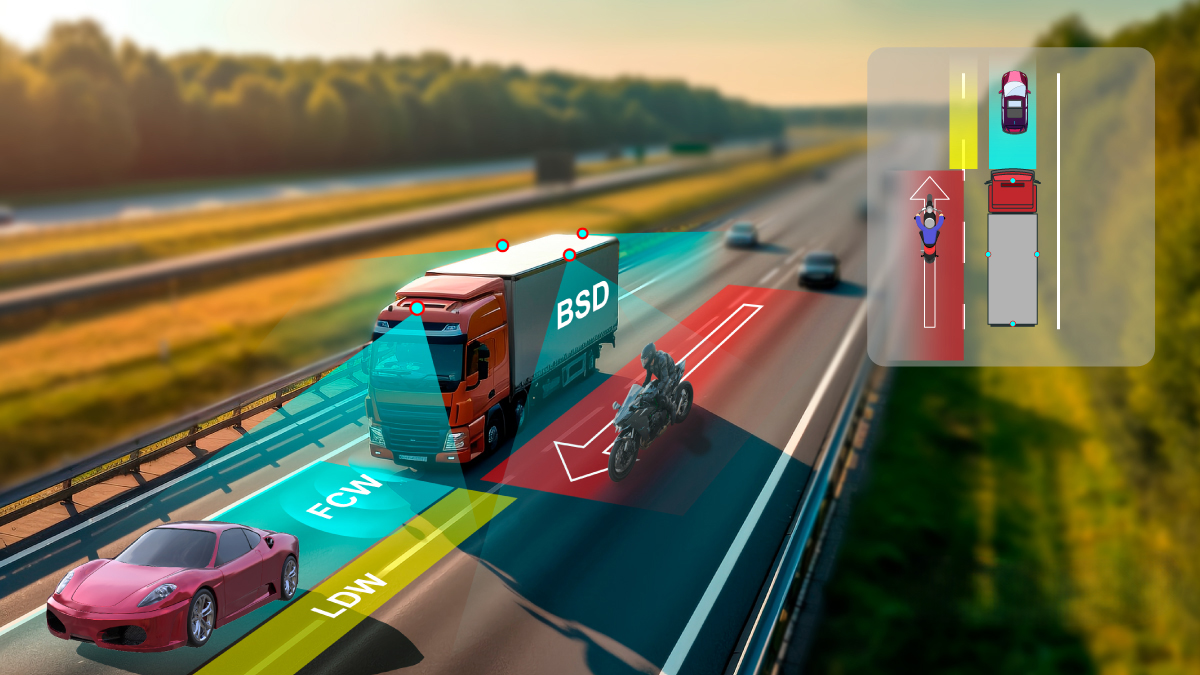

Built-in AI Algorithm: Integrated LDW, FCW, and BSD Full-Area Detection
The built-in AI algorithm in the AUTO VANTAGE 360° Surround View System integrates Lane Departure Warning (LDW), Forward Collision Warning (FCW), and Blind Spot Detection (BSD) for complete 360-degree coverage. This system detects lane departures, forward collisions, and potential overtaking or merging vehicles, providing timely alarms to help prevent accidents and enhance driving safety.
Panoramic Image Synthesis Technology
The 4CH 1080P full HD images are seamlessly stitched after distortion correction, using advanced panoramic image synthesis technology. The system then renders these images into a 3D scene, accurately simulating real-world driving conditions for a more immersive and safer driving experience.

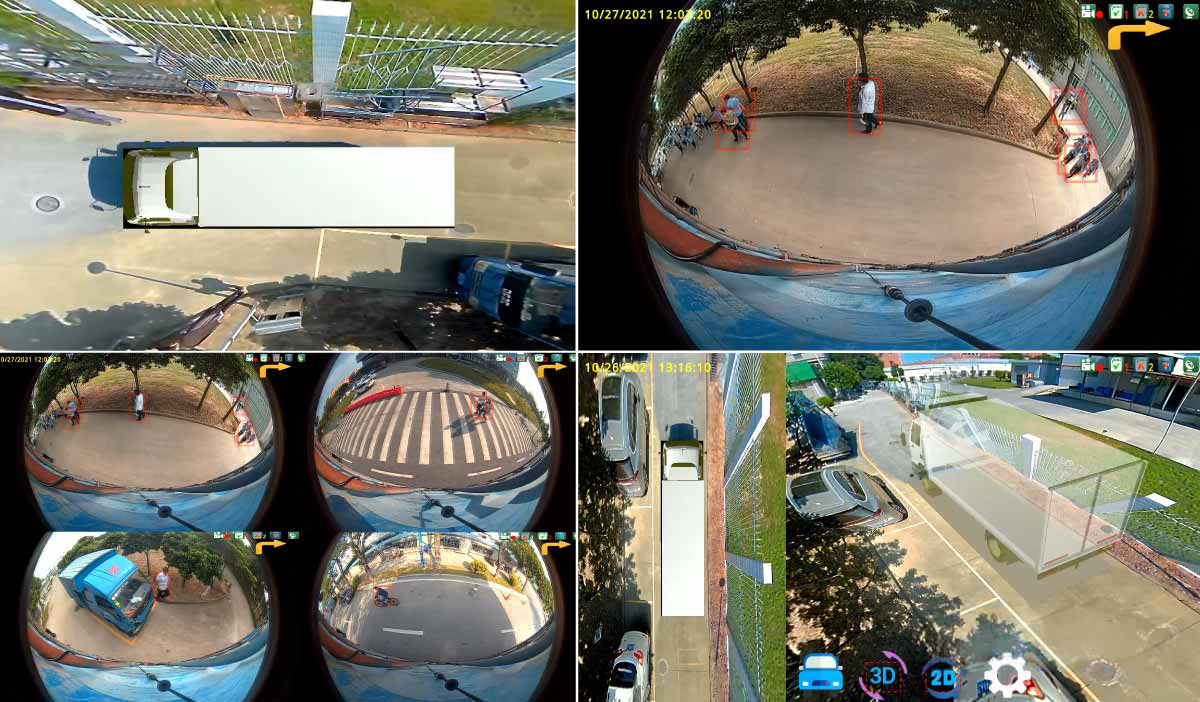

Flexible Viewing Options: Seamless 3D and 2D Switching
The 360° 3D Panoramic Driving Radar System allows users to easily switch between 3D and 2D views, offering versatile viewing angles to suit different driving scenarios. This functionality ensures optimal visibility

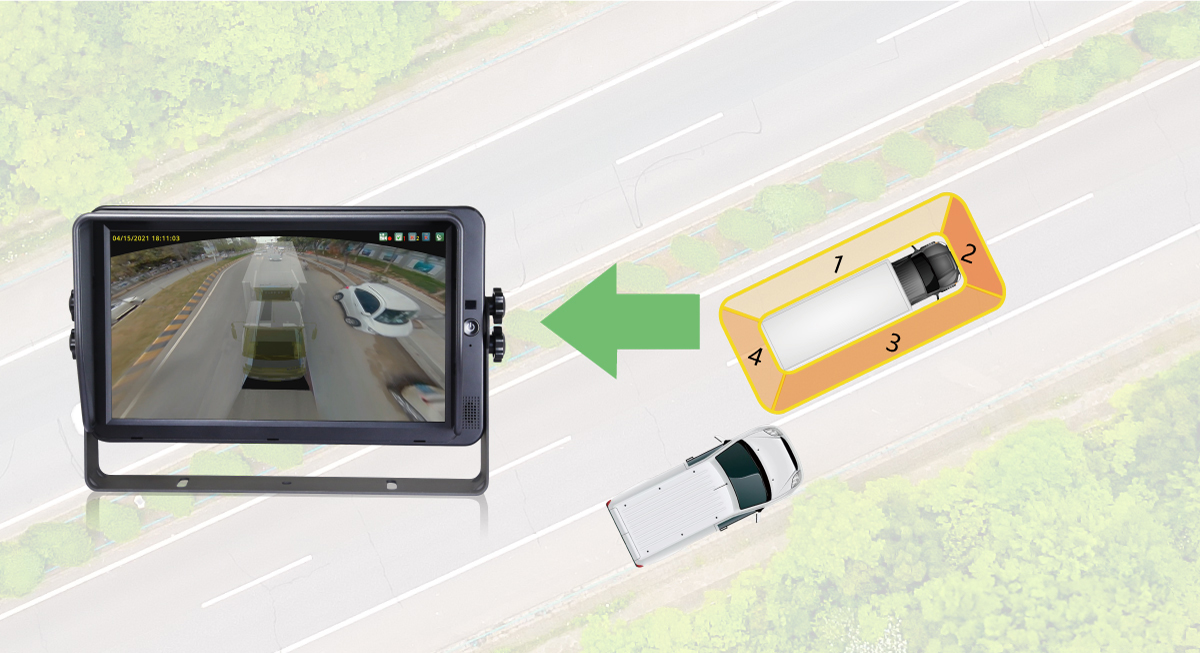

Quick Start-up and RTSP Feed Integration
The system ensures a fast start-up, with single-view images appearing quickly and smoothly, offering minimal latency. It also supports third-party equipment to access the 360° panoramic view through the RTSP protocol, allowing seamless integration of panoramic images with less than 250ms latency.
3D Effect for Enhanced Rearview Mirror Visibility
Unlike traditional 3D around view systems that use solid vehicle images, the 3D 360° Around View Driving Assistance System uses a transparent vehicle model. This offers a clear view of the road behind and around the vehicle, effectively eliminating blind spots. Additionally, the bird’s-eye view provides an expanded field of vision to the left and right, giving drivers a wider perspective than typical systems. This feature enhances safety, particularly when merging at high speeds.
One-Minute Automatic Calibration
The 360° system offers automatic calibration that takes just one minute. Calibration can be easily done via the touch screen or remote control. Simply place four calibration mats at random positions, and the system will automatically adjust to ensure accurate calibration. This quick setup process saves time and effort while maintaining precision.
External AI Pedestrian Detection Camera Support
The system supports external AI pedestrian detection cameras, featuring an impressive processing power of 8T. This allows for comprehensive vehicle and pedestrian detection, with a detection range of up to 10 meters, enhancing safety by identifying potential obstacles in real-time.

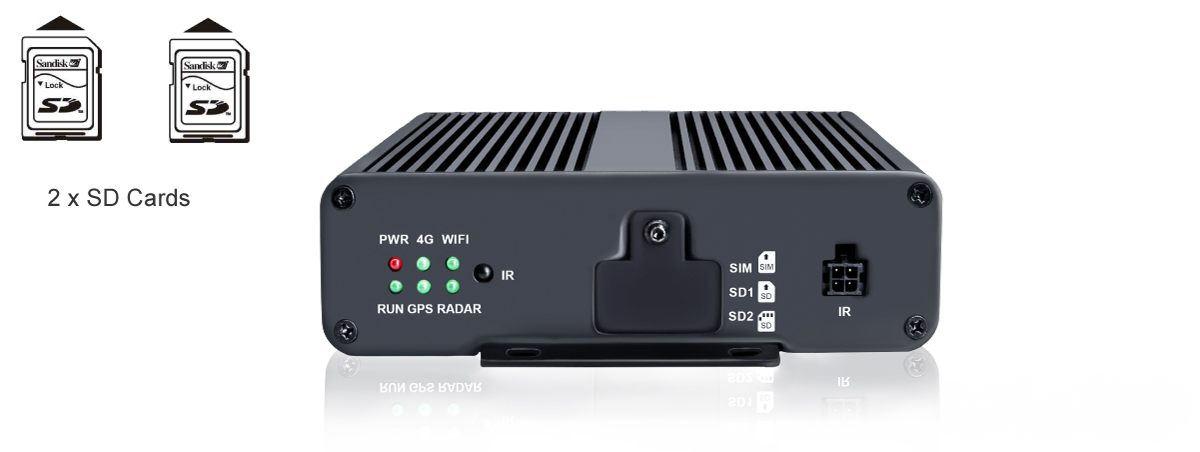

Video Recording with Dual 512GB SD Card
The system supports video recording with two 512GB SD cards, providing ample storage for high-quality footage. This ensures reliable and continuous recording, securing important video data for later review.
| Resolution | channels | Storage | Transmission rate | Recording time |
| 1280 x 720 | 4 | 2 x 512 GB | 2Mbps | 266Hrs |
Low Light Night Vision for Enhanced Safety
The 360° 3D Panoramic Driving Radar System is equipped with cameras that offer low-light night vision, ensuring clear visibility even in dim conditions. This feature eliminates the need for infrared lights while providing a full 360° view of the surroundings, enhancing driver safety during nighttime driving.

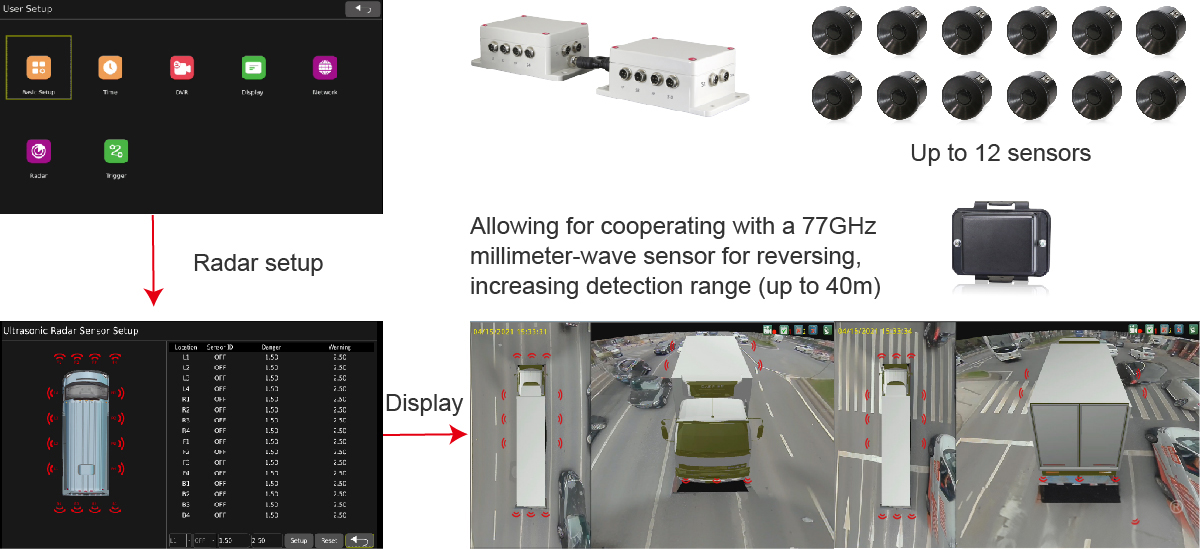

Integrated Radar and Parking Sensor System for Enhanced Safety
The 360° Around View Driving Assistance System supports integration with radar and parking sensors. It overlays real-time video and audio, actively warning the driver about obstacles and potential hazards, helping to avoid accidents and ensuring a safer driving experience.
24/7 Reliability with AUTO VANTAGE Automotive Radar Detection System
The 360° Around View Driving Assistance System utilises advanced microwave technology, ensuring consistent performance regardless of weather conditions. It operates effectively 24/7, providing reliable detection and enhancing safety at all times.

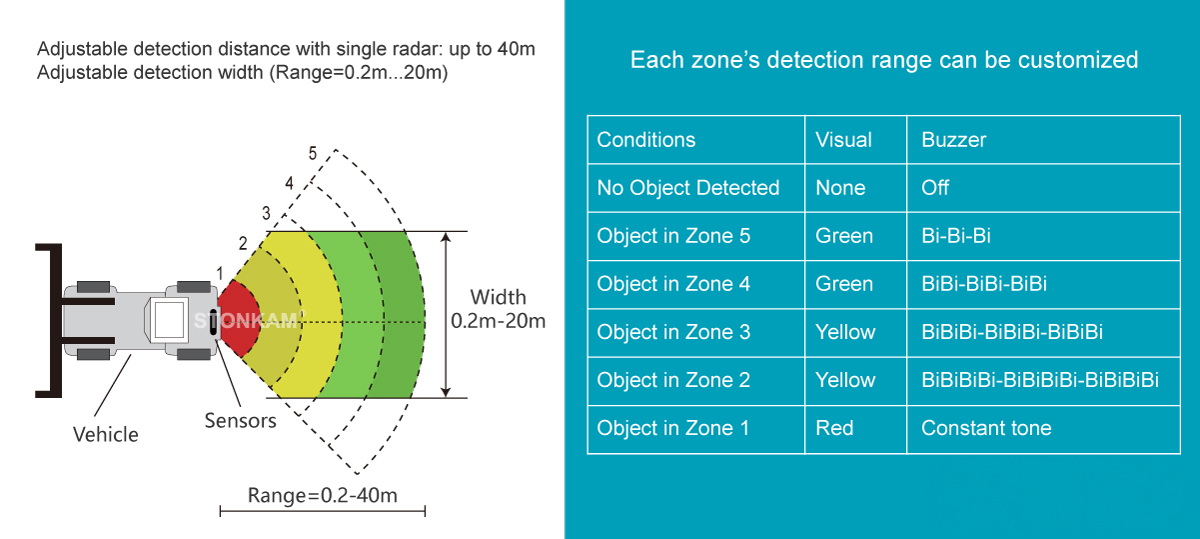

Long Detection Range with High Sensitivity
The 360° Around View Driving Assistance System boasts a long detection range of up to 40 meters. With its high sensitivity, it can accurately detect objects within this range, providing enhanced awareness and safety while driving.

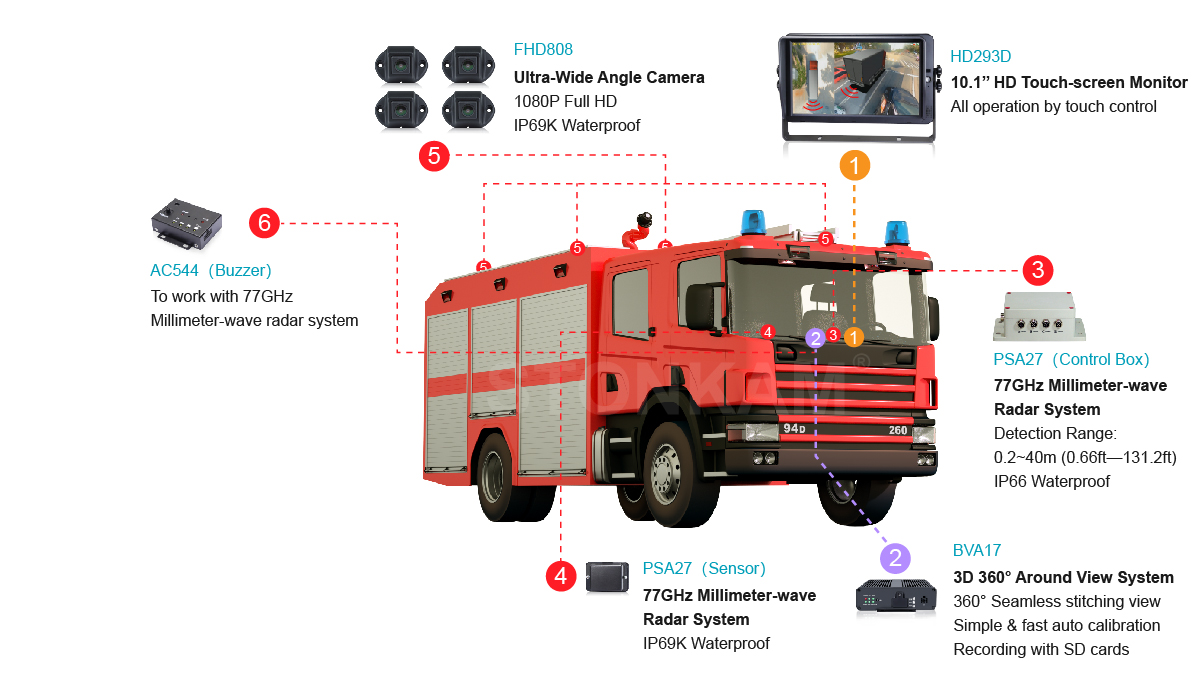

Applications
The 360° mobile panoramic image monitor all-in-one system is widely used in trucks, public transport, emergency vehicles, and other large vehicles. It effectively covers the blind spots around the vehicle, enhancing driver safety and reducing the risk of accidents.
