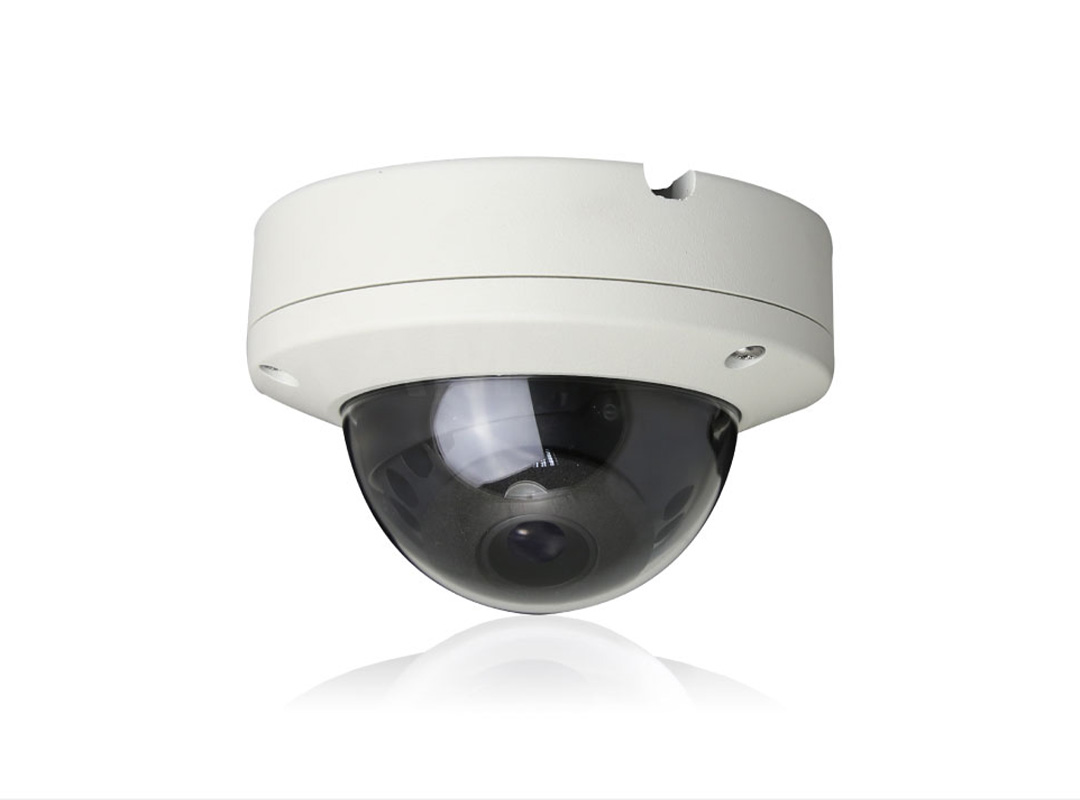

The Bus Passenger Counting Camera is a 1080P camera equipped with advanced deep learning algorithms for accurate, real-time passenger counting and motion tracking. Designed for public transportation, it captures and analyses passenger flow, improving operational efficiency through features like intelligent vehicle scheduling, passenger flow analysis, fare evasion alerts, and route planning.

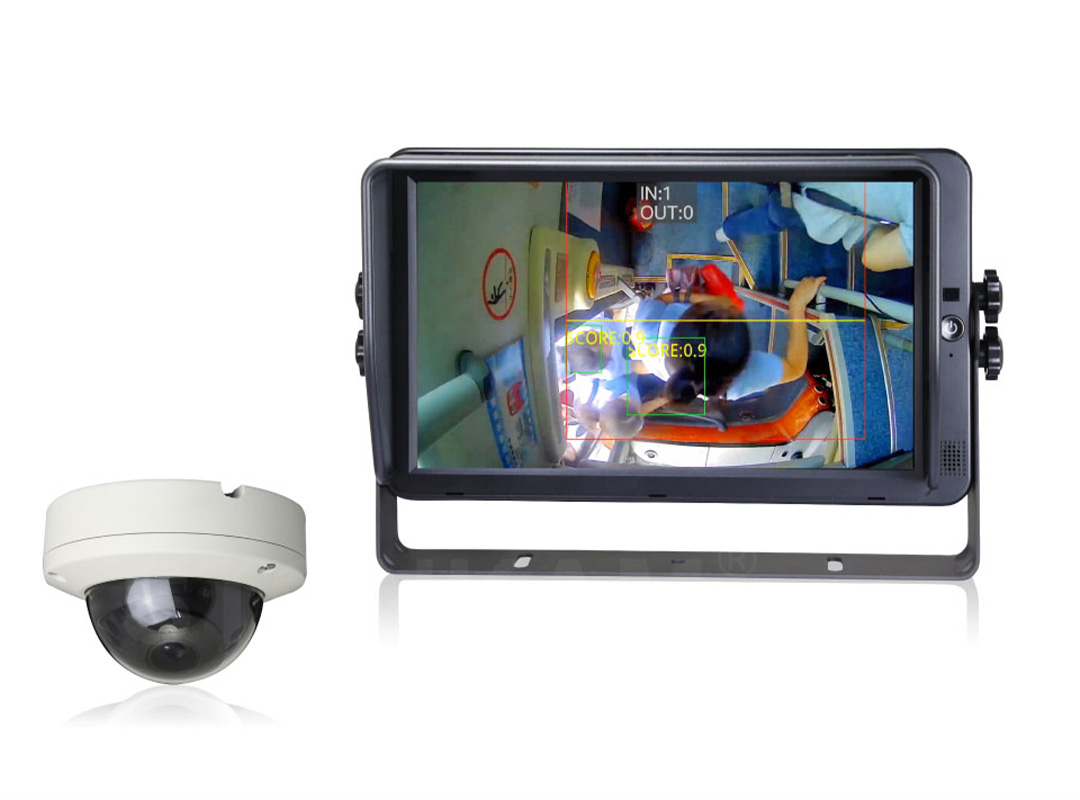

The Bus Passenger Counting Camera can operate independently with a monitor or connect to an MDVR for real-time data access, supporting efficient decision-making in transit operations. With easy installation, low power consumption, and cost-effectiveness, it is ideal for buses, coaches, school buses, subways, trains, and other vehicles needing reliable passenger flow statistics.



Bus Passenger Counting Camera Features

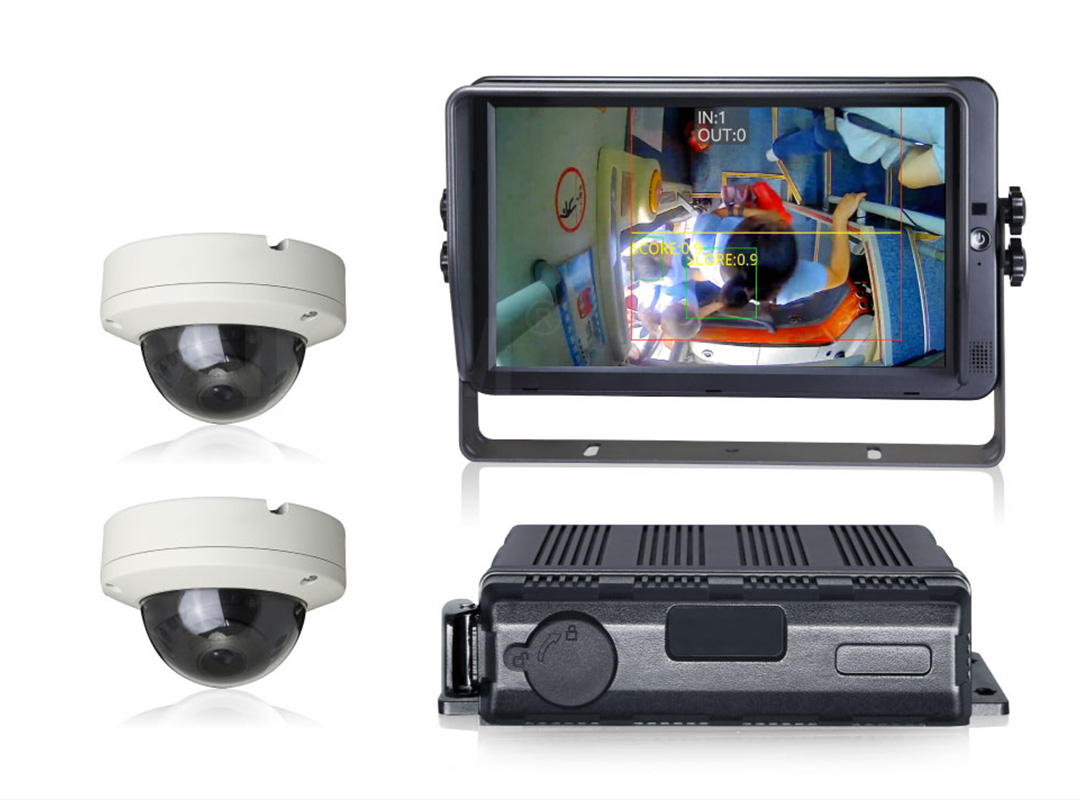

• Intelligent Public Transportation Management: When paired with a vehicle-mounted DVR, the Bus Passenger Counting Camera enables real-time passenger flow data collection, supporting intelligent scheduling, passenger flow analysis, fare evasion alerts, and route optimization for enhanced public transportation management.
• Built-in Algorithm: The camera’s integrated algorithm provides superior detection accuracy and frame rate compared to traditional MDVR-based solutions. It processes at 30 fps with up to 98% accuracy, ensuring precise passenger counting.
• Alarm Output: The camera issues alarms for conditions like overloading or crowding during boarding, sending alerts to the display or MDVR. This feature enhances passenger flow control, helping to prevent accidents in public transportation.



Operating Temp. & Humidity	-20 ~ 70℃ RH95%MAX.
Storage Temp. & Humidity	-30 ~ 80℃ RH95%MAX.
Waterproof Rating	IP66K
Image Device	1/2.9″ CMOS
FPS	2~30
Effective Pixels	1920 (H)  x 1080 (V)
Pixel Size	2.8 μm x 2.8 μm
Scanning System	Progressive Scanning
Sync. System	Internal
Dynamic Range	81dB
Main Stream Resolution	D1/720P/960P/1080P
Sub Stream Resolution	CIF/D1
Audio Format	G.711A/G.711U
AGC	Auto
White Balance	Auto
BLC	Auto
Electronic Shutter	1/25 (1/30)～1/50,000 Seconds
Minimum Illumination	0.1 Lux
Power Supply	DC12V / IEEE 802.3af POE
Audio	Yes
Viewing Angle	120°



Why Bus Passenger Counting Cameras Are Essential

1. Optimising Public Transportation Scheduling: Accurate passenger flow data are key to efficient transportation management. Variations in passenger numbers and vehicle capacity throughout the day often lead to inefficiencies. By tracking real-time passenger flow, transit operators can adjust schedules to meet demand, reducing wait times and optimising vehicle usage.
2. Enhancing Safety and Preventing Accidents: Accurate monitoring of passenger flow can prevent safety risks associated with overloading. Without precise data, there is a higher chance of overloading, which can lead to serious accidents. Passenger counting cameras provide reliable data, enabling operators to maintain safe load limits, and improving passenger safety and regulatory compliance.

By providing real-time insights into passenger flow, bus passenger counting cameras play a vital role in making public transportation safer and more efficient.





Accurate Passenger Flow Statistics for Flexible Vehicle Planning

The public transportation passenger flow statistics camera uses advanced deep learning technology to capture and analyze passenger flow in real time. By tracking and monitoring passenger movements, it provides reliable data on passenger flow changes, giving transportation operators a solid, data-driven foundation for effective scheduling and fleet management.

With precise passenger data, operators can allocate vehicles more efficiently, enhancing scheduling and safety. This optimised planning not only improves public transportation services but also reduces urban traffic congestion, minimises the number of vehicles on the road, lowers environmental pollution, and boosts social and economic benefits.





Intelligent Public Transportation Management

Equipped with an on-board DVR, the passenger flow statistics camera captures real-time data and conducts in-depth analysis across major stations, routes, shifts, passenger flow points, and peak times. This intelligent analysis supports route optimization, helping operators plan efficient schedules and adjust routes to better serve passenger demand.

The system also utilizes historical passenger flow data to estimate daily fare revenue, contributing to a precise fare monitoring system. By evaluating operational conditions through passenger flow insights, it aids in strategic bus route planning, optimizing resource allocation and improving service efficiency. This intelligent passenger flow analysis system strengthens and enhances overall public transportation management, making transit services more responsive, effective, and sustainable.

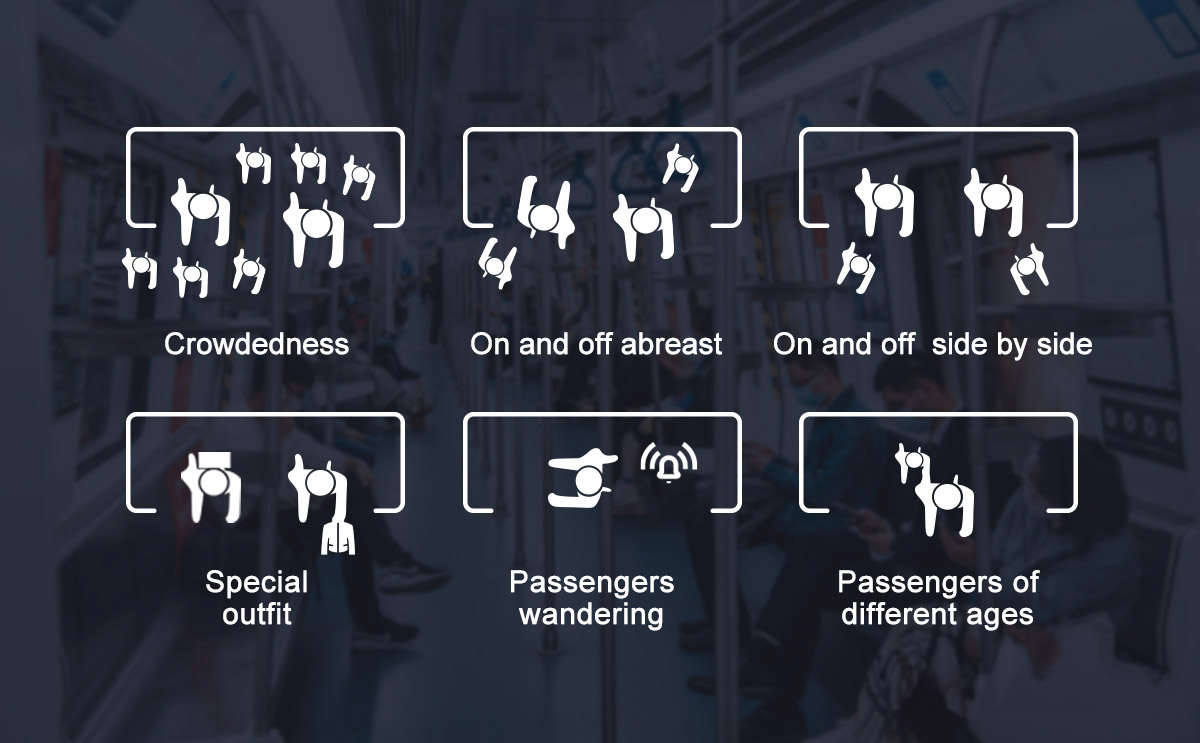

Built-in Algorithm with Enhanced Accuracy

The camera’s integrated algorithm provides superior detection accuracy and frame rate compared to traditional MDVR-based solutions. Processing at 30 frames per second with an accuracy rate of up to 98%, it ensures highly precise passenger counting in diverse scenarios.

This advanced system performs reliably even in crowded conditions and can count passengers boarding and alighting abreast, side by side, or moving unpredictably. It also accurately detects individuals in various types of attire and across different age groups, making it a versatile solution for accurate passenger flow monitoring in public transportation.





Alarm Output for Enhanced Safety

The camera supports alarm outputs for critical situations, including overloading, crowded boarding conditions, and stranded passengers. When these conditions are detected, the device sends alerts to the display or MDVR, enabling immediate action to manage passenger flow and prevent accidents. This feature helps ensure passenger safety by providing real-time monitoring and strengthening control over public transportation conditions.





Applications of the Public Transportation Passenger Flow Counting Camera

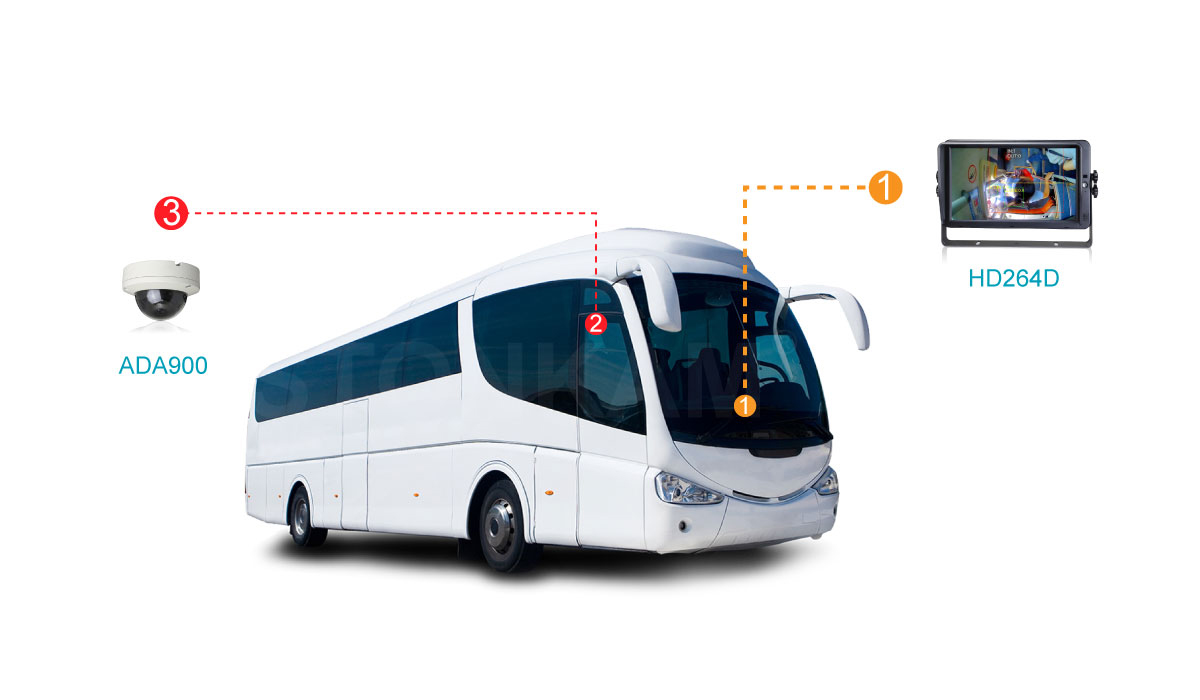

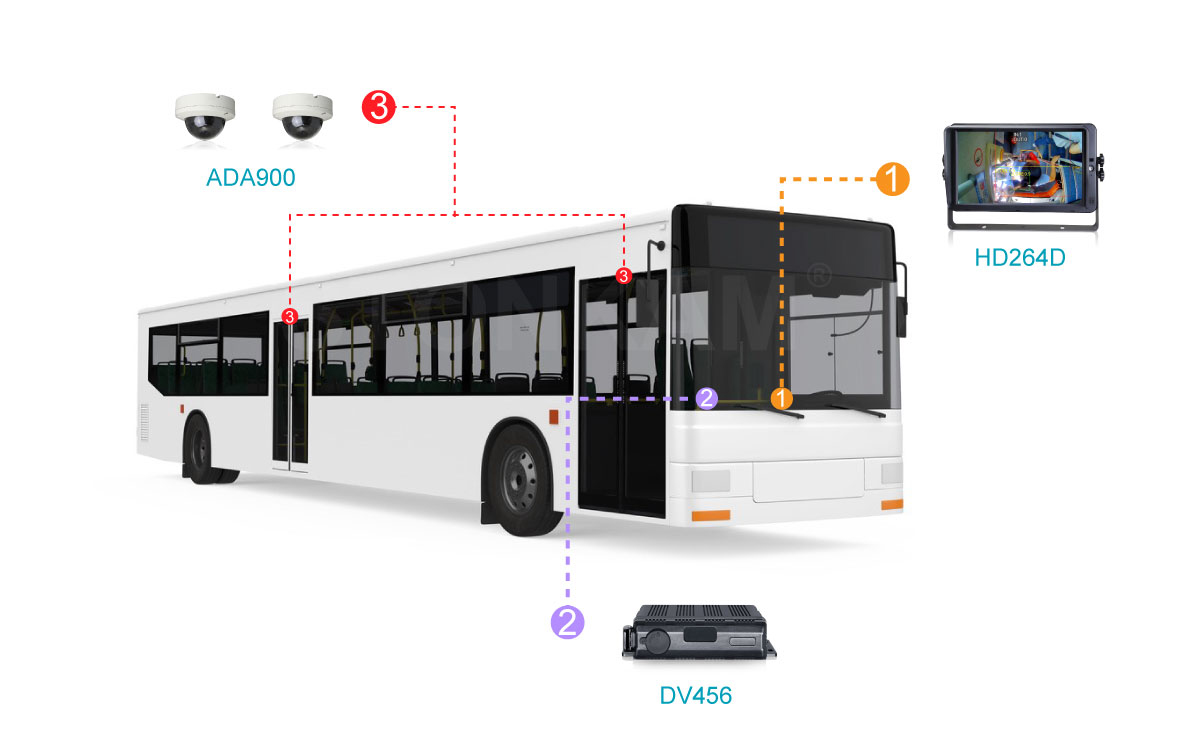

The passenger flow counting camera can function independently with a monitor for basic passenger counting, or it can integrate with an MDVR system to enable advanced features such as real-time passenger data, intelligent vehicle scheduling, passenger flow analysis, fare evasion alerts, and route planning.

This versatile camera is ideal for various transportation scenarios, including buses, coaches, school buses, subways, trains, and other vehicles requiring accurate passenger flow statistics. It enhances operational efficiency, safety, and service quality across a wide range of public transit systems.



---
