Intelligent HD Pedestrian Detection System
Intelligent HD Pedestrian Detection System
Blind spots in large vehicles pose significant risks, prompting global attention. To address this, the European Union introduced the Road Safety Regulation on November 27, 2019, applying to N2, N3, M2, and M3 vehicles. This regulation mandates Blind Spot Information Systems (BSIS) and Moving Off Information Systems (MOIS) as standard for commercial vehicles. The Intelligent HD Pedestrian Detection System, using AI technology, enhances road safety by detecting pedestrians, cyclists, and vehicles around the vehicle. With real-time visual and audio alerts, it actively assists drivers in avoiding potential hazards and protecting vulnerable road users.
Product Details
Features of the Intelligent HD Pedestrian Detection System
- Compliance & Safety: Meets UN ECE R159 MOIS testing standards, enhancing commercial vehicle safety and protecting vulnerable road users.
- High Compatibility: Supports AHD/CVBS, fast Ethernet output, RTSP, ISO17215, and other network protocols for broad compatibility across multiple vehicle types.
- Pedestrian & Vehicle Detection: Detects pedestrians, cyclists, and vehicles; provides real-time visual and audio alerts to warn drivers of potential hazards.
- Robust Design: IP69K waterproof, dustproof, and shock-resistant; built for durability with an anti-vibration rating (ISO 16750-3, 5.9G).
- Extensive Detection Range:
- Side View: 0.5–30m
- Horizontal Narrow-Angle: 0.5–30m, 70° (6mm lens)
- Horizontal Wide Angle: 0.5–20m, 150° (2.3mm lens)
- Downward View: 8m/10m, 200° (1.45mm lens)
- High-Definition Output: 1080P video quality with an alarm frame overlay to aid real-time hazard awareness.
- Audio Alerts: Sends real-time audio alarms to drivers for immediate responses.
- Convenient Connectivity: USB 2.0 port for Wi-Fi modules and USB connections, with phone-enabled calibration via web link and USB for easy upgrades.
| Effective Pixels | 1920（H）x1080（V） |
| Pixel Size | 2.8μmx2.8μm |
| Frame Rate | 25/30 |
| Scanning System | Progressive Scanning |
| Sync. System | Internal |
| Resolution | 1080p |
| Video output | 1.0Vp-p，75Ohm |
| Gamma Consumption | 0.45 |
| Signal-to-Noise Ratio | 38dB |
| White Balance | Auto |
| Exposure | Auto |
| Power Supply | DC10~32V |
| Operating temp. & humidity | –20℃~70℃,RH95%MAX. |
| Storage temp. & humidity | –30℃~80℃,RH95%MAX. |
| Waterproof Rating | IP69K |
| Anti-vibration | ISO 16750-3（5.9G） |
| Viewing Angle | Front/side view: 70° (Horizontal) Rearview: 150° (Horizontal) Bird view: 200° (Horizontal) |
| Audio | YES |
| Minimum Illumination | 0.01Lux |
| Detection Distance | Vertical side view:0.5~30m Horizontal narrow-Angle: 0.5~30m Horizontal wide Angle: 0.5-~20m Downward view: 8m/10m |
| Image mode | Mirror/Normal image switchable |
| Output mode | AHD/CVBS/Fast Ethernet |
| Network protocol | RTSP/ISO17215 |
Why do we need to install an Intelligent HD Pedestrian Detection System?
Installing the Intelligent HD Pedestrian Detection System is essential for enhancing safety, especially for drivers of large vehicles prone to dangerous blind spots. Here’s why this system is beneficial:
- Improved Blind Spot Awareness: Large vehicles, such as trucks, buses, and construction machinery, have significant blind spots where drivers may not see pedestrians, cyclists, or other vehicles. This system detects and alerts drivers of nearby pedestrians and vehicles, reducing the risk of accidents in these zones.
- Enhanced Road Safety Compliance: Regulations like the UN ECE R159 MOIS standard mandate safety technology to protect vulnerable road users. Installing this system helps vehicles meet international safety requirements, improving compliance and safety standards.
- Real-Time Warnings and Quick Response: The system’s audio and visual alerts give drivers immediate warnings when pedestrians or vehicles are detected, helping them respond quickly and avoid potential collisions.
- All-Weather, All-Day Functionality: With IP69K waterproofing, shock resistance, and excellent image clarity, the system performs reliably in all weather conditions and light levels, providing continuous protection around the clock.
- Adaptable to Multiple Vehicles and Scenarios: Its flexible installation and compatibility with different network protocols make it suitable for various vehicle types, including buses, forklifts, mine trucks, and urban transportation fleets, improving safety across various applications.
- Reduced Liability and Operational Costs: By preventing accidents, this system can reduce the risk of costly insurance claims, vehicle downtime, and legal liability, ultimately supporting safer and more efficient operations.
In short, installing the Auto Vantage Intelligent HD Pedestrian Detection System safeguards both drivers and nearby road users, making it a crucial investment in vehicle safety.
Large Vehicles are Facing Dangers Caused by Blind Spots
Commercial vehicles like trucks and buses face significant risks due to large blind spots or “black zones.” These areas can conceal pedestrians, cyclists, and other vehicles, especially during lane changes or turns. For instance, if a motorcycle approaches at high speed or a pedestrian appears unexpectedly, the chances of a serious accident increase.
Standard mirrors often cannot cover these extensive blind spots, making it difficult for drivers to detect and avoid obstacles in time. This issue is particularly concerning in busy urban environments, where rapid responses are essential to maintain safety. Installing advanced pedestrian and vehicle detection systems is therefore crucial for improving driver awareness, reducing accidents, and enhancing safety for everyone on the road.
Compliant with UN ECE R159 MOIS Testing Requirements
The pedestrian and cyclist detection monitoring camera, equipped with an advanced alarm system, meets the UN ECE R159 (MOIS) standards. This compliance ensures the system effectively addresses blind spot-related safety concerns in large vehicles, reducing the likelihood of accidents involving vulnerable road users, such as pedestrians and cyclists. By meeting these rigorous international safety standards, the Auto Vantage system enhances road safety and provides crucial protection to those most at risk around commercial vehicles.

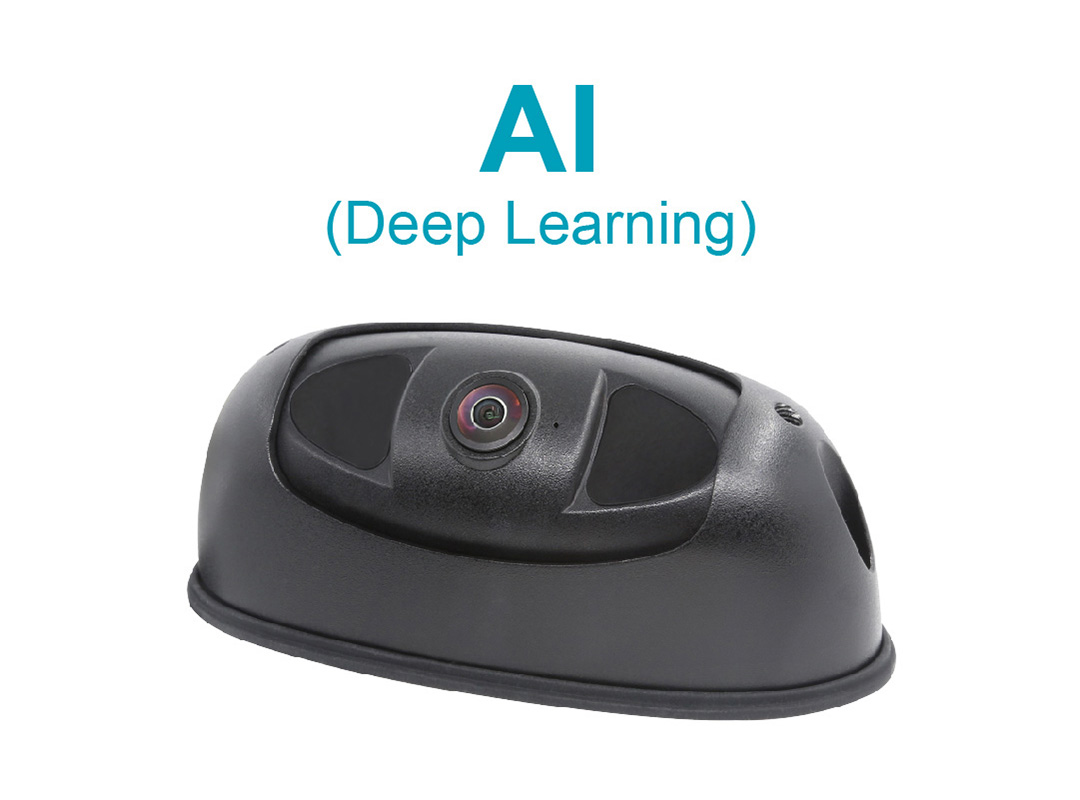

Pedestrian & Vehicle Detection, Intelligent Driving Assistance
Our Intelligent HD Pedestrian Detection System uses deep learning technology for precise pedestrian and vehicle detection. This system identifies cyclists, motorcyclists, and pedestrians around large vehicles, assisting drivers in maintaining safe driving practices and protecting vulnerable road users.

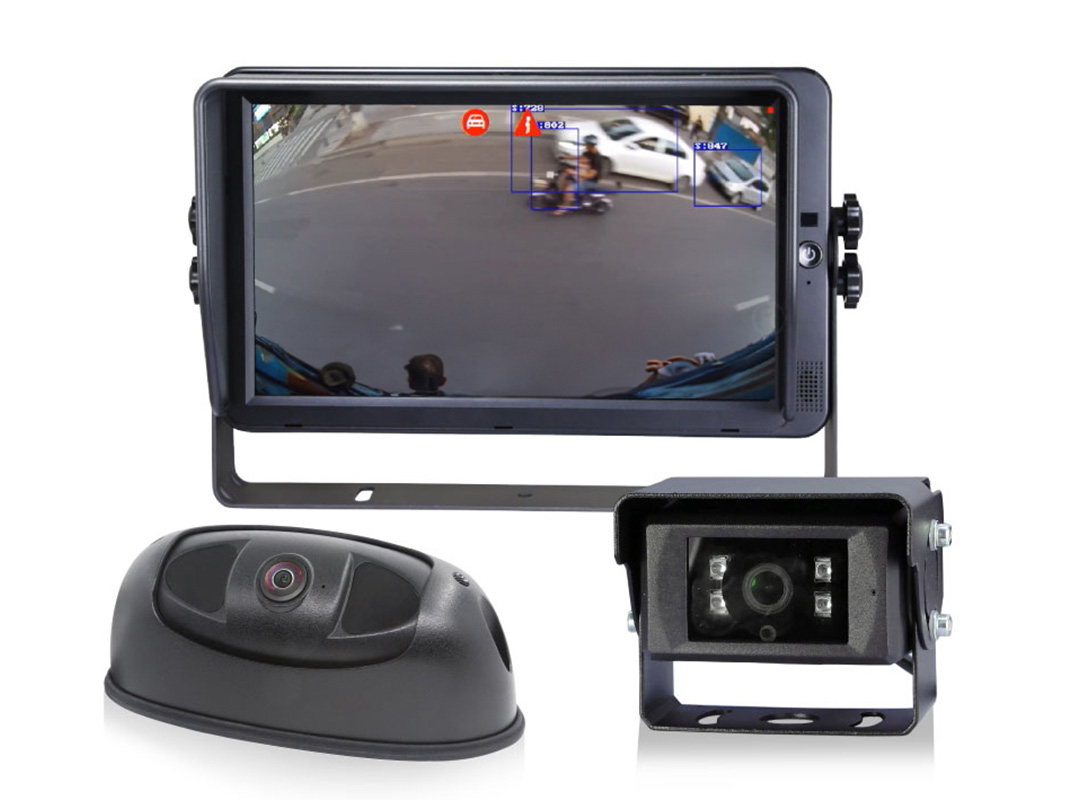

Large Viewing Angle and Wider Driving Field of View
Our Intelligent HD Pedestrian Detection System offers horizontal and vertical installation options for all-direction pedestrian detection. With a large viewing angle and 1080P video output featuring a pedestrian alert frame, it enhances driver awareness and reduces accident risks. Equipped with colour night vision, it performs reliably in any lighting conditions. The detection range covers up to 8m/10m in downward view, providing essential support for safer driving in low-visibility areas.
Our Intelligent HD Pedestrian Detection System offers flexible horizontal and vertical installation to detect pedestrians and vehicles in all directions. With a detection range of up to 30 meters for side views and a wide 1080P video output featuring alert frames, it significantly enhances driver visibility and helps reduce accident risks. Equipped with colour night vision, it ensures reliable performance under any lighting conditions, supporting safer operation in complex environments.
The Intelligent HD Pedestrian Detection System features a detection range of up to 20 meters for rear views, enhancing driver awareness of potential hazards. With flexible horizontal and vertical installation options, the system can monitor pedestrians and vehicles in all directions. Combined with 1080P video output and alarm frames, it reduces blind spot risks and helps prevent accidents. Its color night vision ensures reliable performance in any lighting condition, improving safety in all environments.
Real-Time Audio Alarm and Warning
The Intelligent HD Pedestrian Detection System not only detects pedestrians and vehicles but also provides real-time audio alarms to alert drivers of potential hazards. For enhanced safety, external alarms can be connected to the system, providing warnings outside the vehicle to pedestrians, and helping them avoid risk. This feature ensures immediate response to threats, promoting safer driving and protecting vulnerable road users.
Wide Compatibility and Multi-Vehicle Support
The Intelligent HD Pedestrian Detection System supports AHD/CVBS/100M Ethernet output and RTSP, ISO17215, and other network protocols, ensuring seamless integration with central control systems. This versatility makes it suitable for various vehicle types, including mine cars, forklifts, buses, and trucks. By enabling real-time pedestrian and vehicle detection, it enhances safety and prevents collisions across a wide range of driving and operating scenarios.

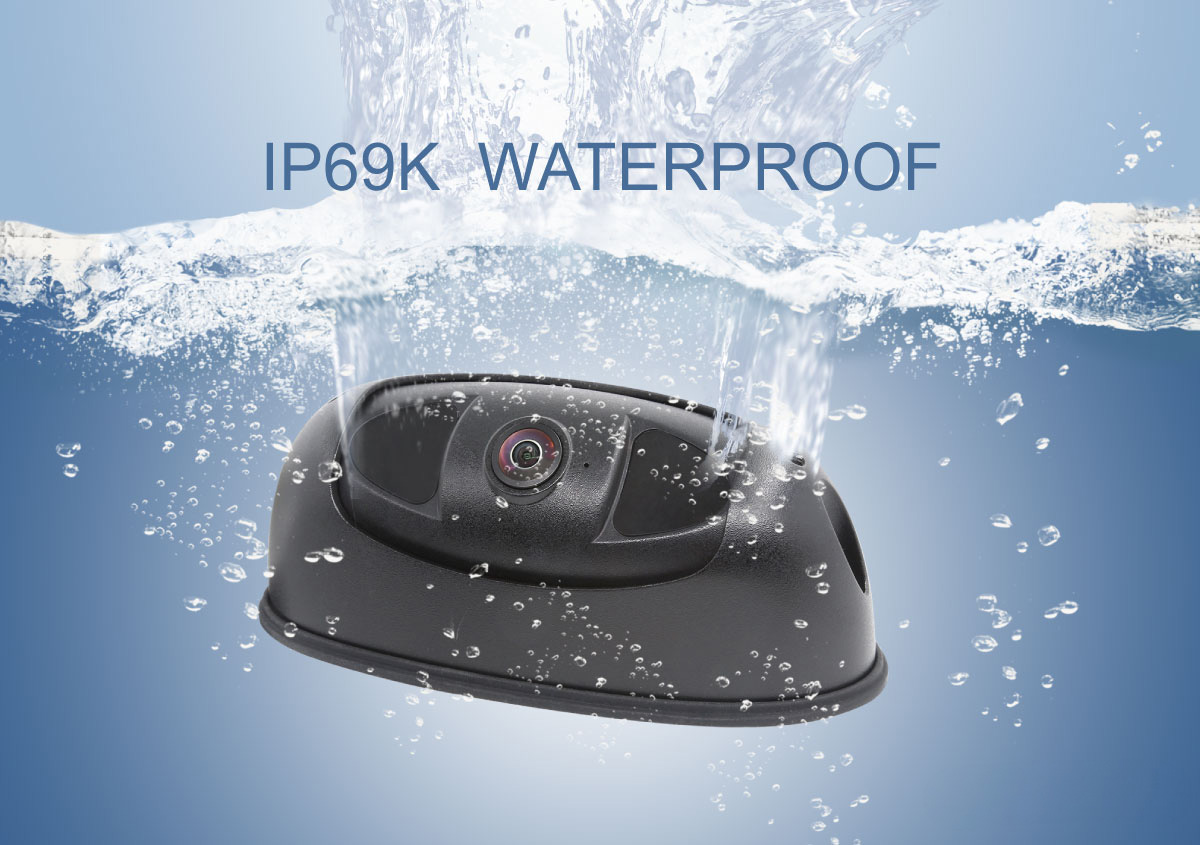

IP69K is Waterproof, Dustproof, Shockproof, and Weatherproof
The Intelligent HD Pedestrian Detection System is built to withstand harsh environments. With an IP69K rating, it is waterproof and dustproof, ensuring reliable performance even in challenging conditions. Its shockproof design meets ISO 16750-3 standards, making it durable and resilient for use in commercial vehicles, construction machinery, and other rugged applications. This robust construction guarantees long-lasting safety and protection, no matter the weather or terrain.
Adjustable Lens for Flexible Installation
The Intelligent HD Pedestrian Detection System features an adjustable lens, allowing for flexible installation based on the site and vehicle requirements. The lens angle can be easily adjusted to optimize the viewing range and ensure better detection, regardless of the installation height or vehicle type. This customisable setup ensures that drivers have enhanced visibility, reducing blind spots and improving overall safety.

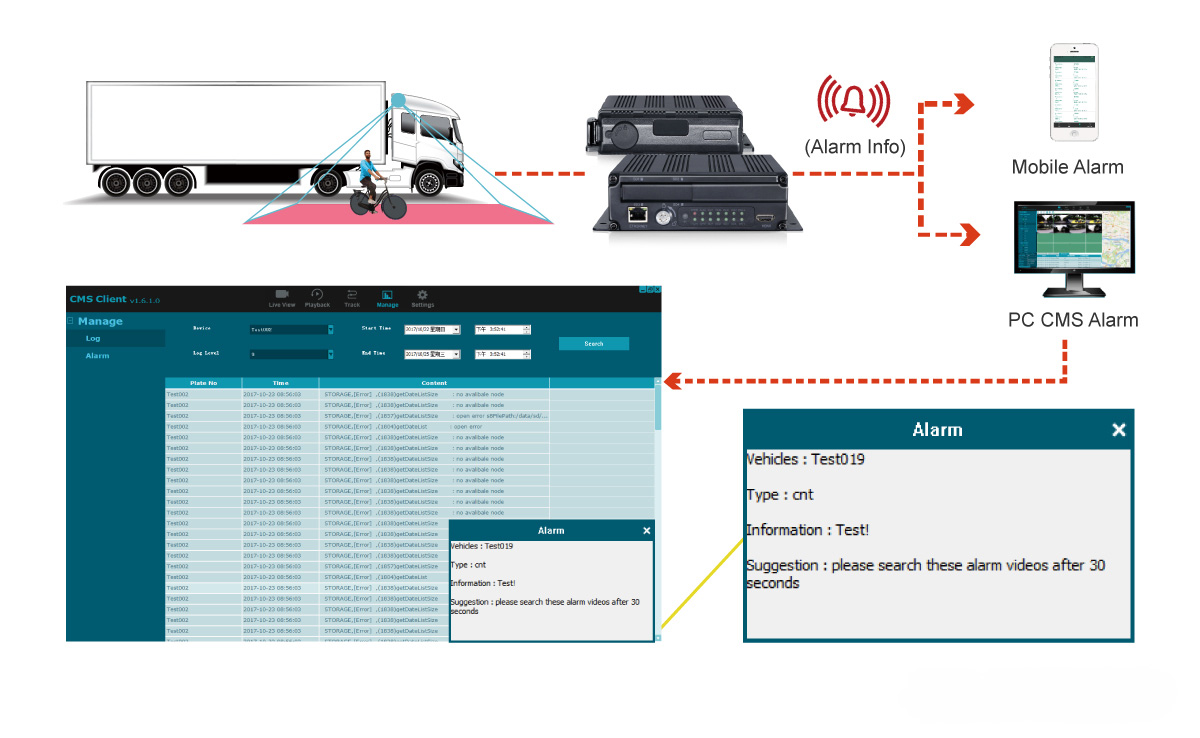

Intelligent HD Pedestrian Detection System Combined with MDVR
The Intelligent HD Pedestrian Detection System can be seamlessly integrated with MDVR (Mobile Digital Video Recorder) for enhanced functionality. This integration allows for real-time video recording of pedestrian and vehicle detections, ensuring that all alarm events are captured. In addition, the system can upload these events to a remote server for easy access, providing comprehensive monitoring and recording of critical safety information, and improving fleet management and incident tracking.
Application
The Intelligent HD Pedestrian Detection System is suitable for a wide range of vehicles, including buses, coaches, trucks, and other large-sized vehicles. It enhances safety by detecting pedestrians and vehicles in critical blind spots, making it an essential tool for reducing accidents and improving driver awareness across various transport and commercial vehicle scenarios.
Mobile phones can connect to the Auto Vantage Intelligent HD Pedestrian Detection System via an external Wi-Fi module, allowing for easy calibration and camera setup through a convenient mobile interface. This feature enhances flexibility and simplifies the installation process, ensuring the system operates optimally across different vehicles.
