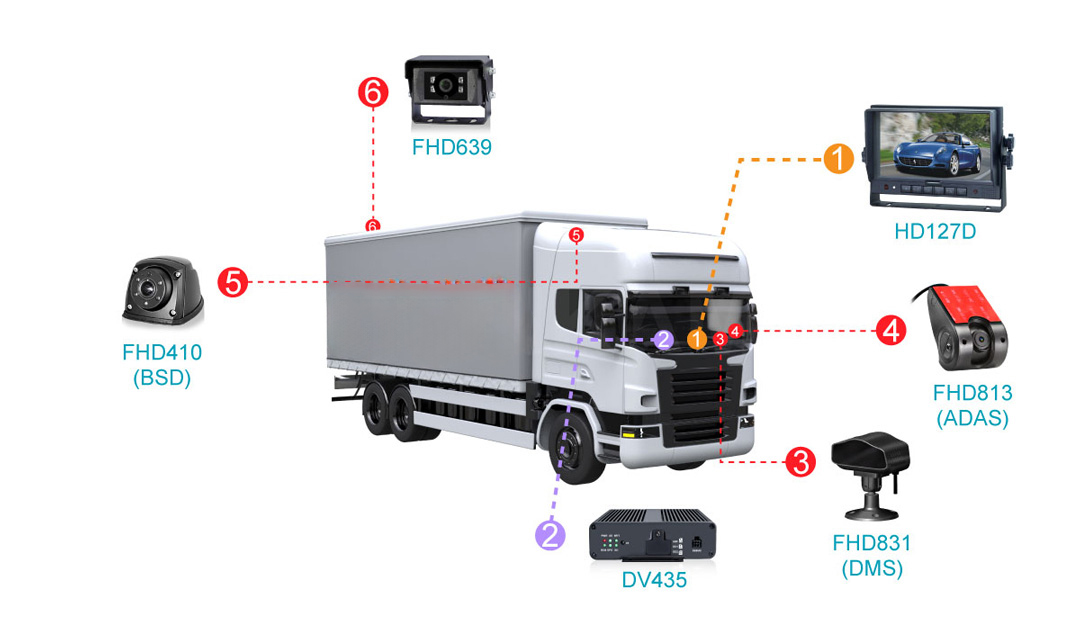

The Intelligent Vehicle Edge Computing Smart Box Application is an intelligent vehicle edge computing solution powered by a multi-core processor and neural network inference engine. Designed for flexible and robust performance, it integrates various algorithms and applications, supporting a wide range of vehicle camera types, including AHD, TVI, and CVBS.
Key features include:

• Intelligent Algorithm Integration: The AI BOX is equipped to handle multiple intelligent algorithms tailored to specific scenarios, such as:

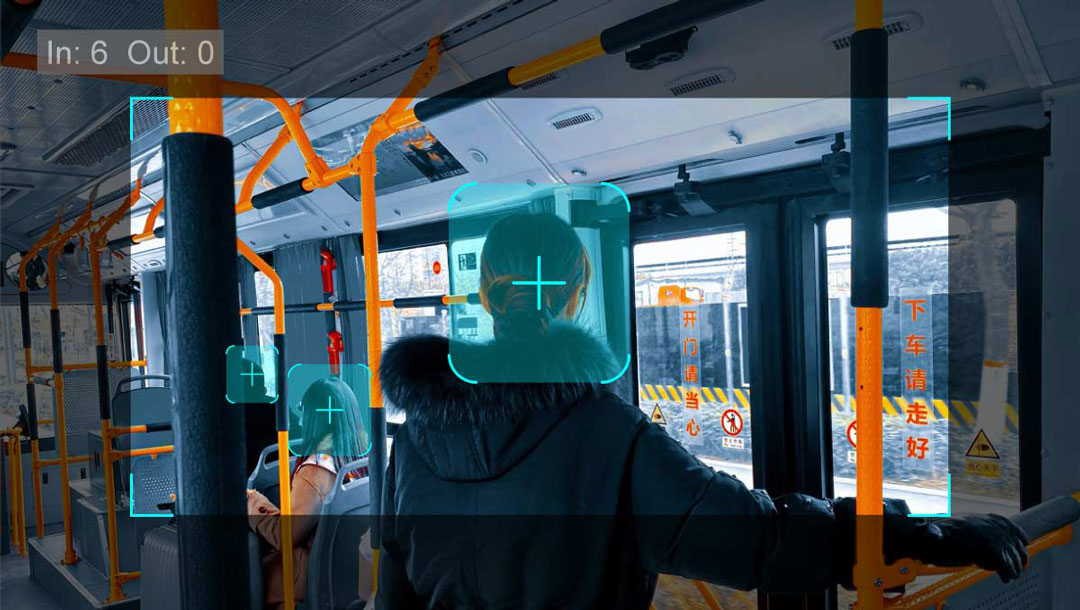

  • APC (Automatic Passenger Counting)
  • ADAS (Advanced Driver Assistance System)
  • DMS (Driver Monitoring System)
  • BSD (Blind Spot Detection)
  • 360° Surround View Monitoring
• Flexible Application Expansion: Through an upgradable AI algorithm library, the system can be extended and updated to monitor all abnormal conditions on the road, adapting to new safety and monitoring requirements.
• Comprehensive Fleet Data Collection: The AI BOX collects valuable data for in-depth fleet management, providing insights that enable fleet operators to monitor driver behaviour, enhance road safety, and improve operational efficiency.

This cutting-edge solution offers powerful edge computing capabilities to support comprehensive, real-time fleet management and advanced safety monitoring.

Features of Intelligent Vehicle Edge Computing Smart Box



• AI-Powered Algorithms
  • Comprehensive Integration: Incorporates multiple advanced algorithms such as APC (Automatic Passenger Counting), ADAS (Advanced Driver Assistance System), DMS (Driver Monitoring System), BSD (Blind Spot Detection), and 360° Surround View.
  • Customisable Solutions: Supports the integration of customer-developed algorithms to address specific operational needs and scenarios.
• High Compatibility
  • Versatile Camera Support: Compatible with a wide range of camera types, including AHD, TVI, and CVBS, ensuring seamless integration with existing vehicle camera systems.
• Rapid Image Display
  • Fast Startup: Quickly boots up and displays images within 8 seconds.
  • Exceptional Speed: Achieves image display as fast as 2 seconds, providing immediate visual feedback for enhanced monitoring.
• Dual Compression Support (H.264/H.265)
  • Efficient Storage Usage: Utilises both H.264 and H.265 compression technologies to optimize storage space.
  • Reduced Network Traffic: Minimises wireless network bandwidth usage, ensuring smoother data transmission.
• Advanced Video Recording
  • Multiple Trigger Modes: Supports various recording triggers including boot-triggered, timed, and motion-triggered recording.
  • Pre-Recording Buffer: Includes a 15-second pre-recording feature to capture critical footage before an event occurs, facilitating reliable evidence collection.
• Comprehensive Fleet Management
  • Remote Monitoring: Enables real-time monitoring via PC and mobile terminals.
  • Historical Data Access: Provides access to historical tracks and video queries.
  • Efficient Event Management: Dangerous events can be uploaded to vehicle monitoring platforms, enhancing overall fleet management efficiency.
• User-Friendly Operation
  • HD Touch Screen Control: Features a high-definition touch screen for intuitive navigation and control.
  • IR Remote Control: Includes an infrared remote for convenient operation from a distance.
  • Streamlined Interface: Offers a user-centric human-device interaction interface, making it easy for customers to operate.
• Multi-Function Access
  • Sensor Integration: Supports integration with a variety of sensors, including Radar, OBD (On-Board Diagnostics), voice intercom, speed, tire pressure, fuel consumption, temperature, door switches, vehicle weight, and vibrators.
  • Extensive Data Collection: Facilitates comprehensive monitoring and data collection, enhancing vehicle and fleet management capabilities.





Video input	4CH 1080P
Video standard	PAL: 25FPS, NTSC: 30FPS
Compression	H264/H265
Video output	AHD
Total resources	1080P 120FPS
Audio input	4CH
Audio compression	ADPCM
Image quality	1~8 level adjustable
Video bit rate	128kbps~4Mbps/channel
Storage consumption	56~1800MB/(channel*hour)
Playback resolution	4*1080P
Audio bit rate	32kbps
Storage	SD card * 2, max 512GB
Alarm input	4CH
Alarm output	1CH
RS232	1CH（Optional）
RS485	1CH
CAN	1CH
USB2.0	1CH
Ethernet	1CH
IR	optional
LTE module	optional
WIFI	optional
GPS	optional
Attitude sensor	optional
Power supply	less than 15W (without camera)
Operating temp. & humidity	-20~70℃, RH 80%MAX
Algorithms	DMS/ADAS/BSD/360AVM/APC



Have you ever faced these challenges?

• Where can I find the ideal fleet management solution?
• How can I monitor abnormal situations involving drivers, vehicles, and road conditions in real-time?
• What’s the fastest way to capture and provide reliable evidence in cases of accidents or theft?

If these questions sound familiar, the Intelligent AI BOX is designed with you in mind. Our comprehensive, AI-powered solution addresses these concerns head-on, offering advanced monitoring, rapid evidence capture, and intelligent fleet management to keep your operations secure and efficient.







The Intelligent Vehicle Edge Computing Smart Box addresses all your fleet management needs with powerful AI algorithms and high-performance capabilities.

Our AI Box integrates advanced algorithms, including APC (Automatic Passenger Counting), ADAS (Advanced Driver Assistance System), DMS (Driver Monitoring System), BSD (Blind Spot Detection), 360° Surround View, and more, making it a reliable vehicle management solution for a wide range of applications. It’s designed for use across various types of vehicles, such as buses, tour buses, escort vehicles, school buses, cargo vans, fire engines, emergency vehicles, and passenger vehicles.

When it comes to managing these fleets, the Auto Vantage AI Box delivers a comprehensive solution that combines high performance, enhanced security, seamless integration, and customisation options. Whether you’re monitoring driver behaviour, ensuring road safety, or capturing critical data, our AI Box provides the tools you need to keep your fleet efficient and secure.

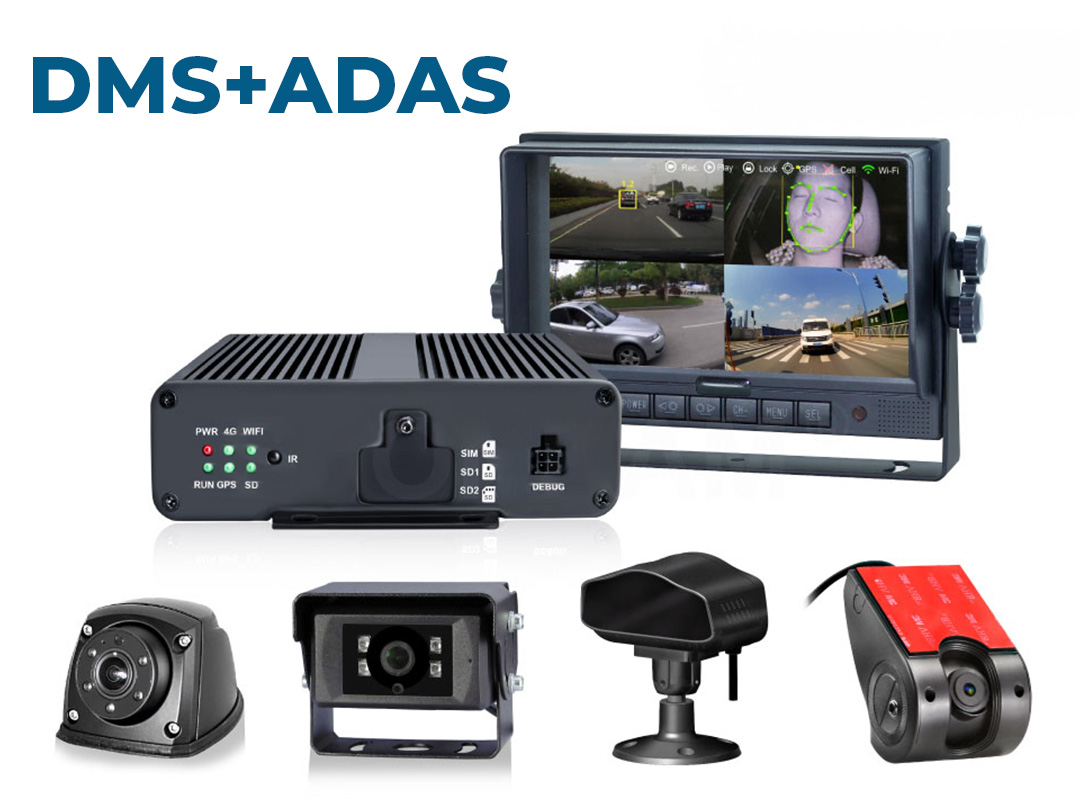

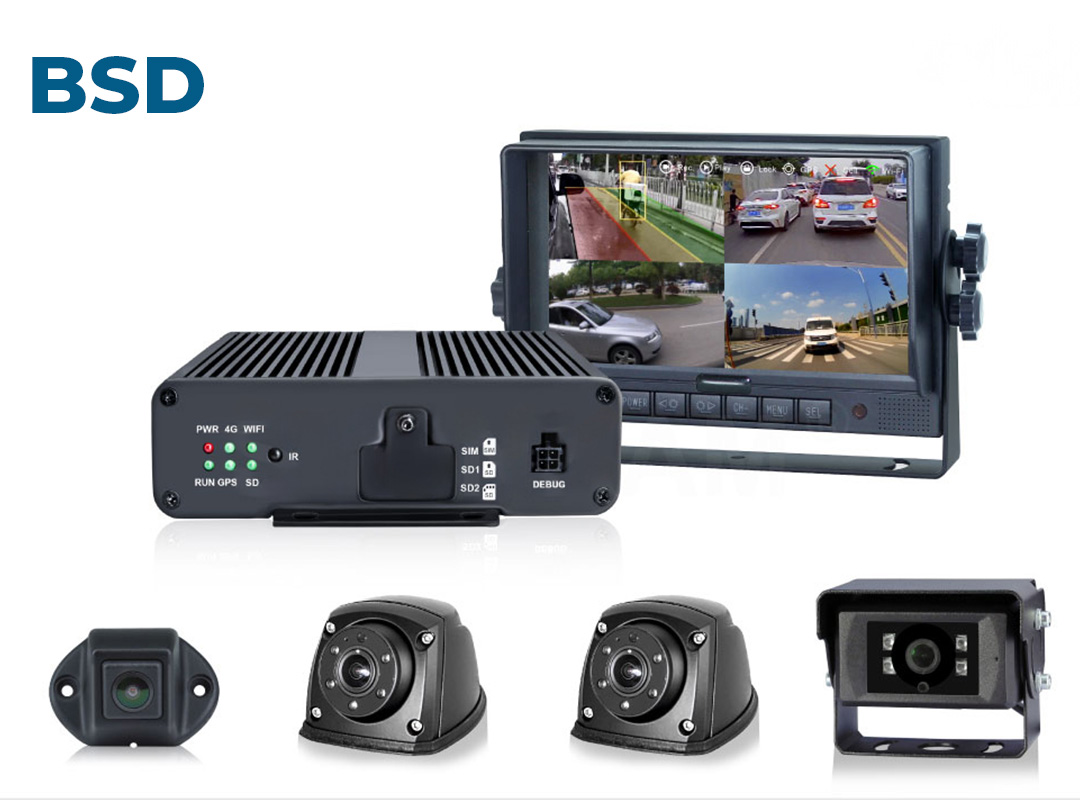

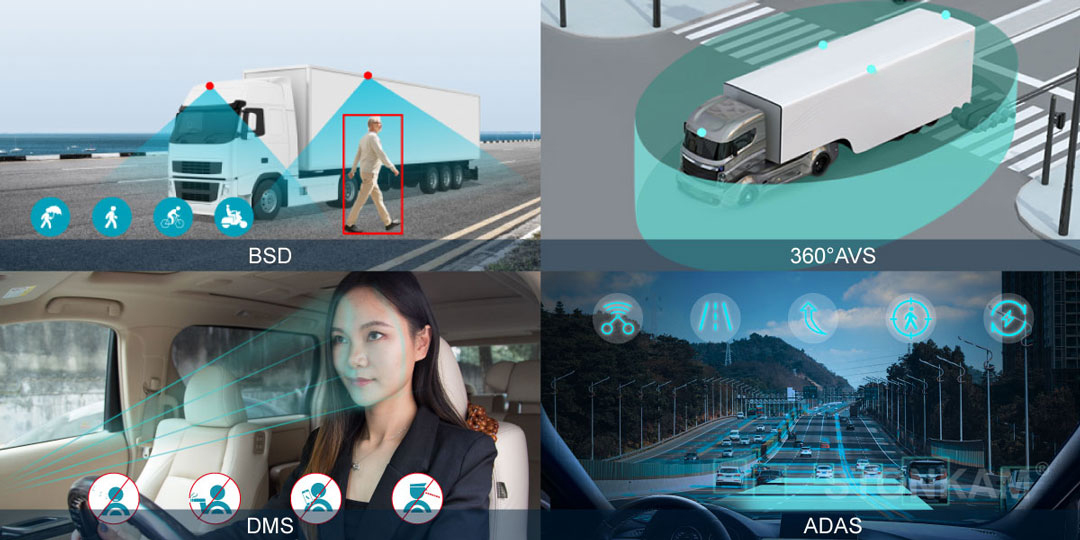

Cutting-edge AI Technology with Versatile Multi-Algorithm Capabilities

The Intelligent Vehicle Edge Computing Smart Box leverages the latest AI technology to perform multiple algorithms and functions with remarkable efficiency. By integrating APC (Automatic Passenger Counting), ADAS (Advanced Driver Assistance System), DMS (Driver Monitoring System), BSD (Blind Spot Detection), and 360° Surround View, it excels in processing multi-channel AI tasks and identifying various targets in real-time—providing superior driving assistance and safety.

With support for algorithm customisation, customers can even integrate their own AI algorithms into the system to operate seamlessly alongside built-in functions, offering unparalleled flexibility to meet specific application needs.





High Compatibility with AHD, TVI, and CVBS Cameras

The Intelligent Vehicle Edge Computing Smart Box offers broad compatibility, supporting AHD, TVI, and CVBS standard cameras through multiple interface protocols. This flexibility allows seamless integration with a wide range of camera types, and only minimal configuration in the AI box menu is required to get started.





Optimised Startup Speed for Rapid Image Display

The Intelligent Vehicle Edge Computing Smart Box is engineered for fast startup, displaying images within 8 seconds to minimize waiting time. For even quicker access, it can be customized to display images in as little as 2 seconds, providing immediate visual feedback and enhanced operational efficiency.





HD Real-Time Monitoring & Powerful Recording Capabilities

The Intelligent Vehicle Edge Computing Smart Box offers Full HD real-time monitoring with robust recording features, designed for reliable, high-quality surveillance and evidence collection.

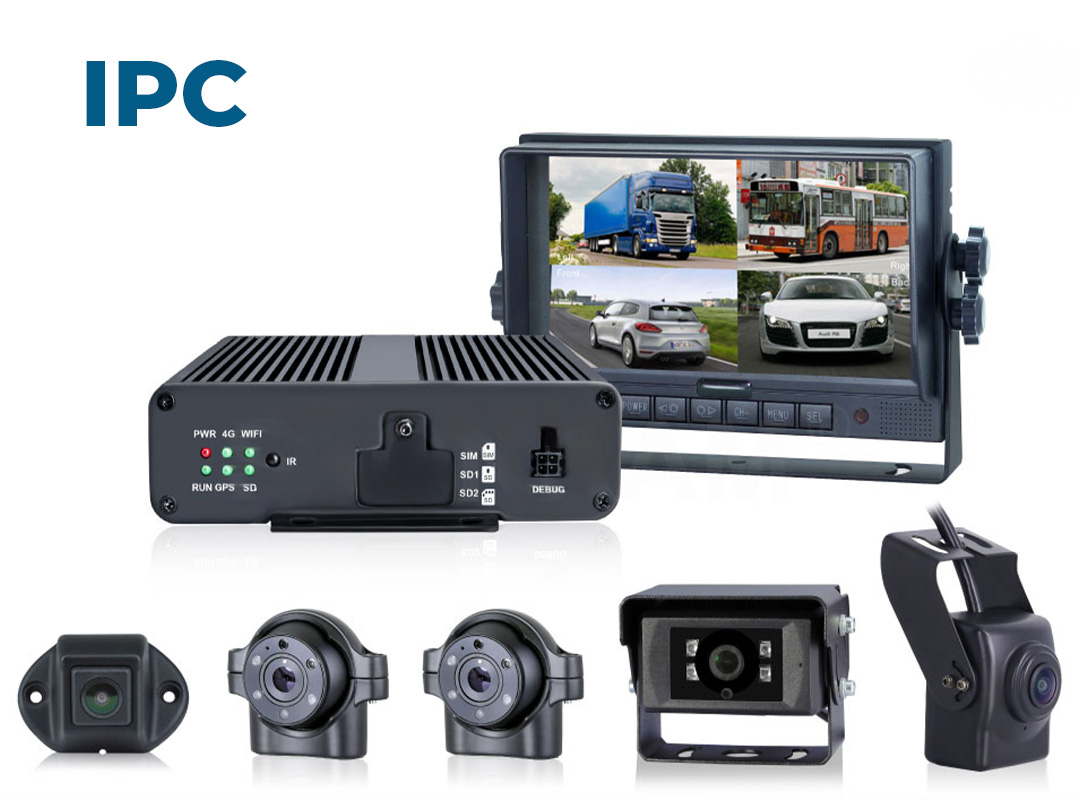

• High-Definition Imaging: Supports FHD input from IPC (Internet Protocol Cameras) and thermal imagers, with RTSP video output for seamless streaming.
• Customisable Resolution: Users can set preferred resolution options and access live previews or review recorded videos and snapshots anytime.
• Versatile Recording Triggers: Supports multiple recording modes, including automatic recording triggered by DMS, ADAS, and BSD alarms, ensuring comprehensive event capture.
• Ample Storage: Accommodates up to two SD cards with a maximum capacity of 512GB, providing ample space for high-resolution footage and extended storage duration.

This feature set provides clear, customisable, and easily accessible video and image monitoring, perfect for capturing critical data in real-time or reviewing past events.





Efficient Fleet Management with Advanced Remote Monitoring

The Intelligent Vehicle Edge Computing Smart Box empowers fleet operators with a comprehensive suite of tools for real-time monitoring, data management, and fleet oversight:

• Remote Control and Access: Supports PC and mobile access, allowing fleet managers to control and monitor vehicles from anywhere.
• Real-Time Positioning and Historical Tracking: Enables precise vehicle tracking and historical route queries for detailed insights into fleet activity.
• Advanced Fleet Management Functions:
  • Electronic Geofencing: Set up virtual boundaries to receive alerts if a vehicle crosses predefined areas.
  • Dangerous Driving and Vehicle Status Alerts: Automatically uploads alerts for dangerous driving events and abnormal vehicle statuses to the fleet monitoring platform for immediate action.
• Customisable and Scalable: Rapid development options are available to customize features, ensuring that the platform meets specific client needs.
• Data-Driven Management: Achieves streamlined data platform management, enabling efficient, data-backed fleet operation.

This feature-rich fleet management capability supports safety, compliance, and operational efficiency across all vehicles in the fleet.





Guaranteed Data Security

The Intelligent Vehicle Edge Computing Smart Box prioritizes data security with multiple protective measures:

• SSL Encryption and HTTPS Secure Transmission: Ensures that all data is securely transmitted, safeguarding information from unauthorized access.
• Amazon S3 Cloud Storage Support: Provides reliable and secure cloud storage options for data backup and accessibility.
• Power Failure Protection with Supercapacitor: Equipped with supercapacitor technology to protect against data loss during unexpected power outages, preserving valuable files and recordings.

With these features, the AI Box offers robust data protection, ensuring both security and reliability in all fleet operations.





Human-Centered Design for Enhanced Convenience

The Intelligent Vehicle Edge Computing Smart Box is thoughtfully designed for easy, user-friendly operation, both online and offline:

• Offline Operation and Configuration: Enables offline access for device setup, parameter configuration, and record processing, ensuring flexibility even without network connectivity.
• Direct WiFi Connection: Allows quick and convenient mobile access for real-time previews, notifications, and device management.
• Intuitive Controls: Features an HD touch screen and IR remote control for seamless navigation and interaction, making the interface easy and convenient for users.

This design focuses on accessibility and efficiency, simplifying operations for a more user-friendly experience.





Comprehensive Multi-Function Sensor Integration

The Intelligent Vehicle Edge Computing Smart Box supports a wide range of sensor integrations to enhance vehicle monitoring and ensure safe driving:

• Sensor Compatibility: Integrates seamlessly with microwave and ultrasonic radars, OBD (On-Board Diagnostics), voice intercom, speed sensors, tyre pressure monitors, fuel consumption sensors, temperature monitors, door switches, vehicle weight sensors, and vibrators.
• Enhanced Safety: These sensors work together to provide real-time insights into vehicle conditions and driver behaviour, improving overall safety and operational control.

This extensive sensor compatibility offers a holistic approach to fleet safety and management.

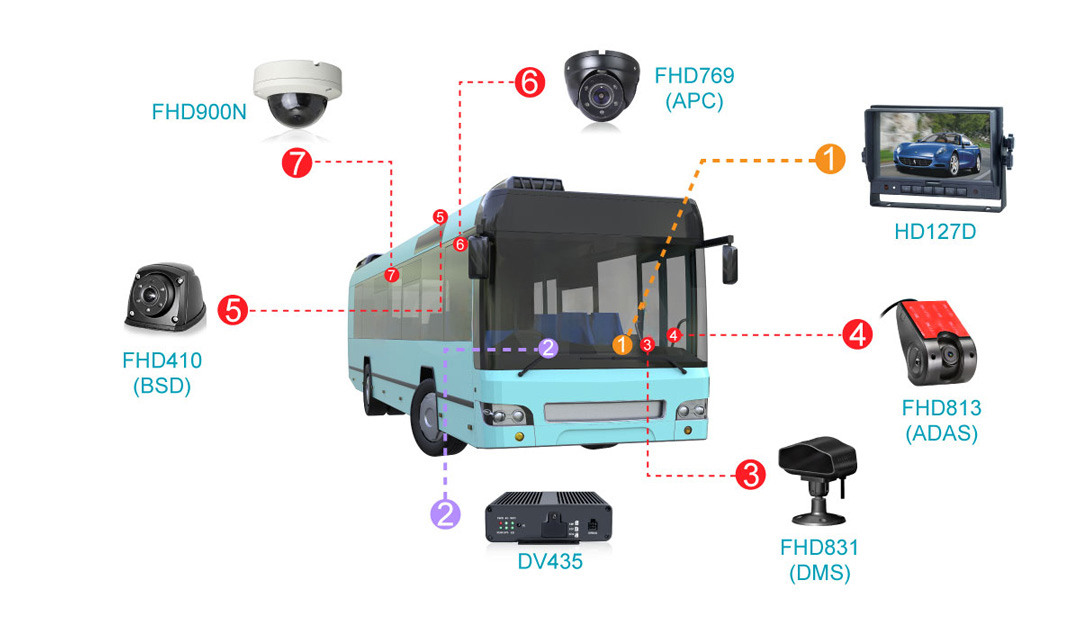

Vehicle AI Box Application

The Intelligent Vehicle Edge Computing Smart Box is an advanced solution that integrates Artificial Perception Computing (APC), Advanced Driver-Assistance Systems (ADAS), Driver Monitoring Systems (DMS), and 360-degree algorithms. This cutting-edge technology is designed to optimize fleet management across a variety of scenarios, including:

• City Buses: Enhancing passenger safety and operational efficiency in urban environments.
• Tourist Buses: Providing a secure and enjoyable travel experience for tourists.
• Escort Vehicles: Ensuring the safety of escorted loads and personnel.
• School Buses: Monitoring driver behaviour and ensuring student safety.
• Logistics Trucks: Improving delivery accuracy and driver performance.
• Fire Engines and Emergency Vehicles: Facilitating rapid response times and operational effectiveness.
• General Buses: Streamlining management and safety across public transport systems.

With its robust capabilities, the Auto Vantage Vehicle AI Box is an essential tool for any fleet aiming to enhance safety, efficiency, and compliance.











---
